Adapter for connecting a rear view camera to a Toyota MFD GEN5/GEN6 DVD Navi Monitor

Description

This cable connects the rearview camera to Toyota vehicles with MFD GEN5/GEN6 multifunction displays and DVD navigation. This cable allows you to install an aftermarket camera Plug&Play without damaging your vehicle's wiring.

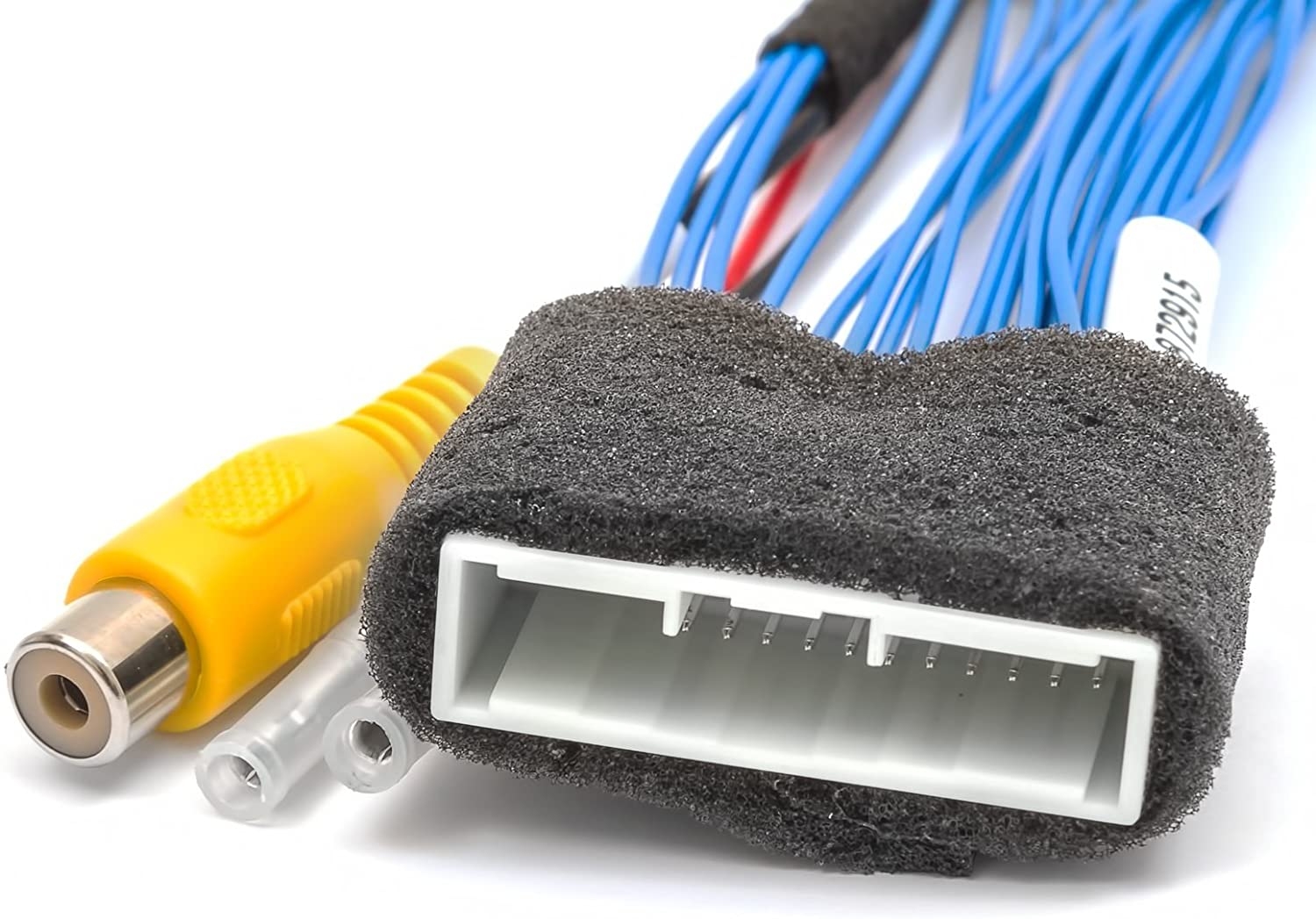

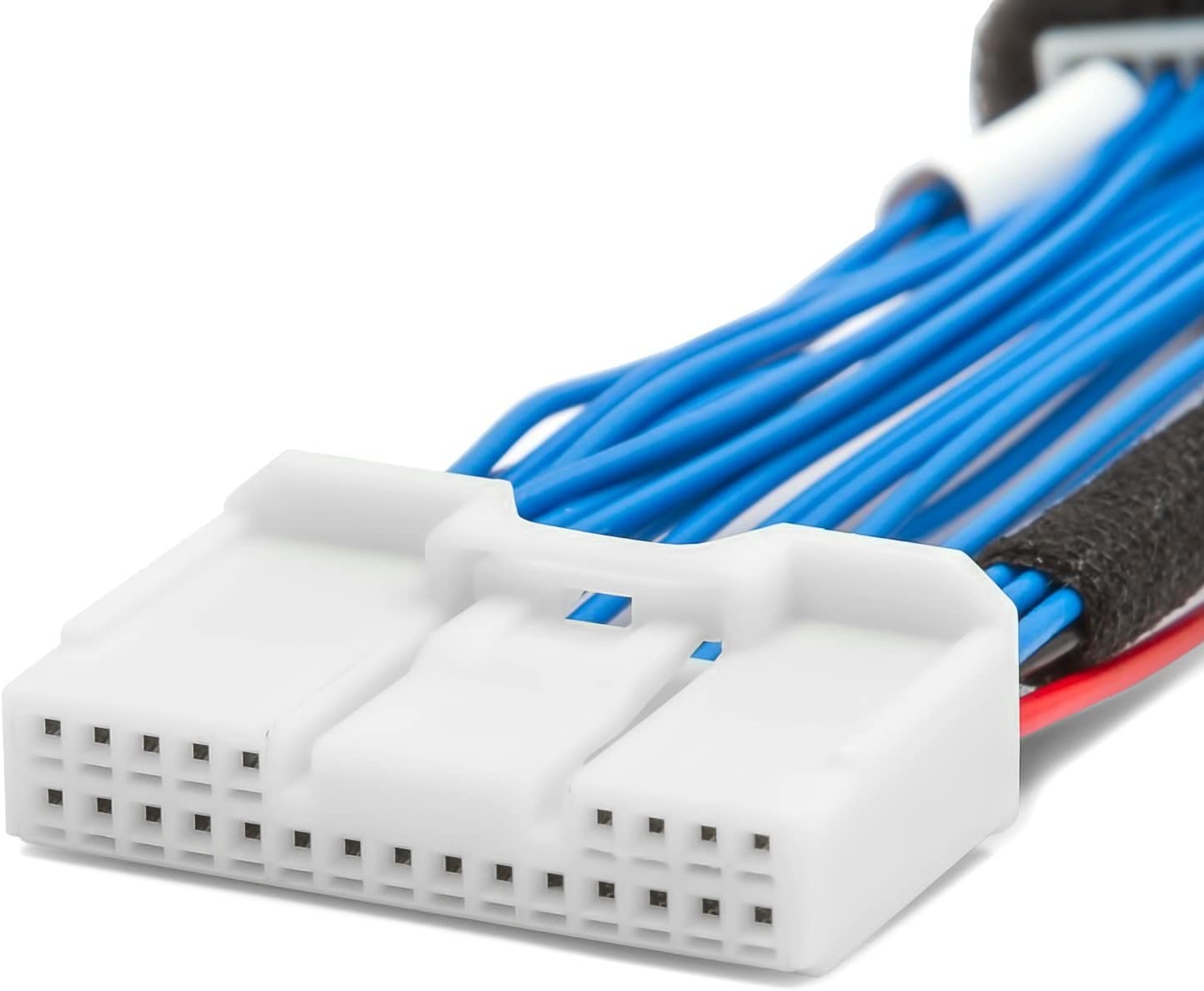

The image from the rearview camera will automatically be displayed on the screen when reversing. The device connects to a 24-pin socket (as shown in the wiring diagram ). Once connected, all OEM functions that operate via this socket are retained due to the pass-through connection.

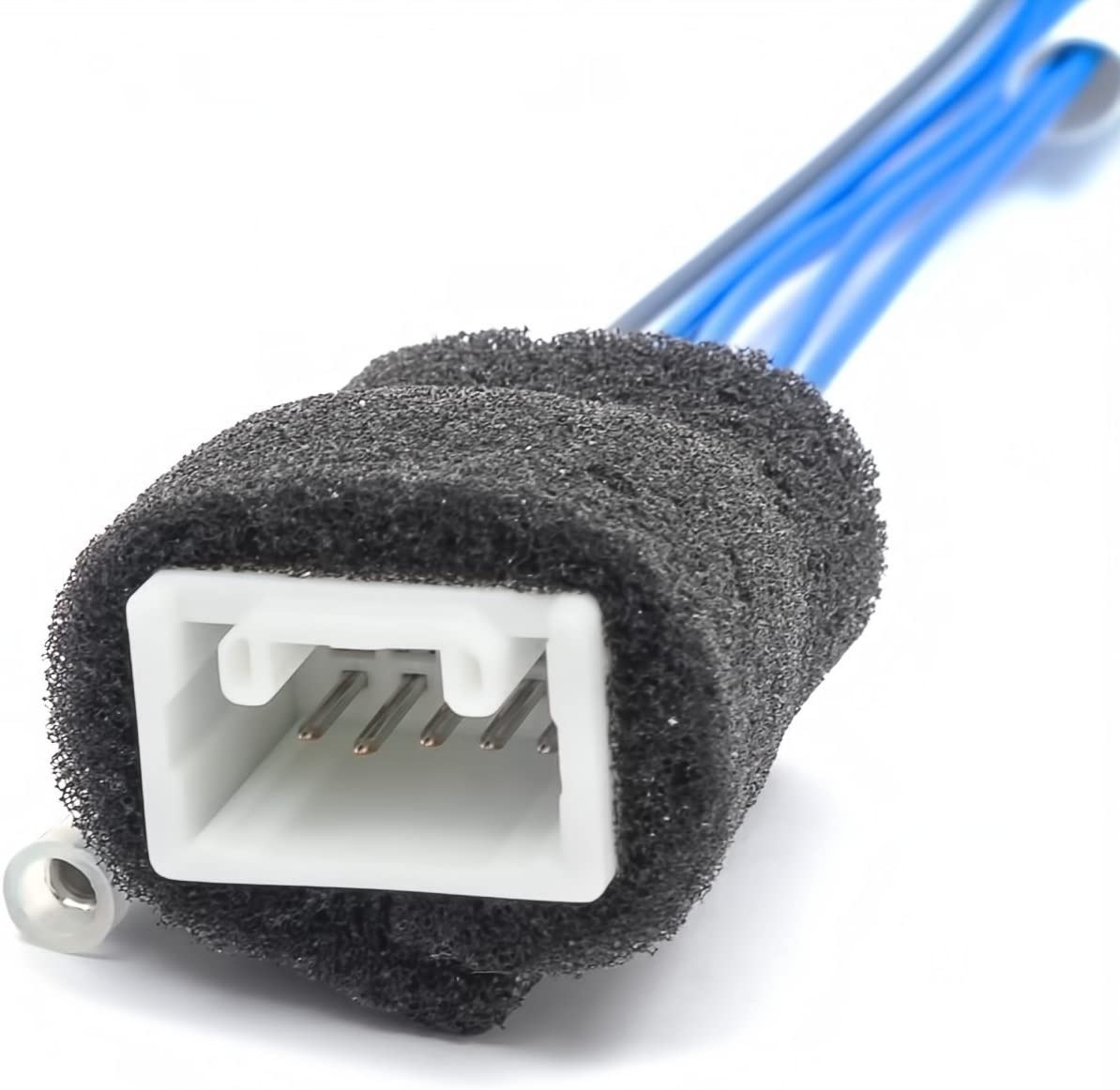

A special cable for activating the rearview camera function is included. It is specifically designed for cars where the manufacturer has not included rearview camera functionality (the rearview camera activation signal has not been implemented in the head unit).

Note: An additionally installed reversing camera should be powered from the ACC line (first key turn), otherwise the camera input will not be active. Depending on the type of camera being connected, namely the voltage required for the camera, you can use the +6V input voltage generated by the monitor. If the camera requires more than +6V, connect the camera's power supply to the ACC line.

Frequently asked questions about camera and video connection cables.

Compatibility: Denso GEN5 DVD Navigation in the USA

Make and model:

• System: US Denso GEN5 DVD Navi
• Toyota 4Runner 2006-2009 Radio (2DIN*)
• Toyota Camry, Camry Hybrid 2007-2009 Radio (E7011 / E7012)
• Toyota Highlander 2011-2012 Radio (E7014 / E7016)
• Toyota Highlander Hybrid 2011-2012 Radio (E7015 / E7017)
• Toyota Sequoia 2008-2009 Radio (E7013)
• Toyota Sienna 2006-2010 Radio (2DIN*)
• Toyota Solara 2007-2009 Radio (2DIN*)
• Toyota Tundra 2007-2009 Radio (E7013)

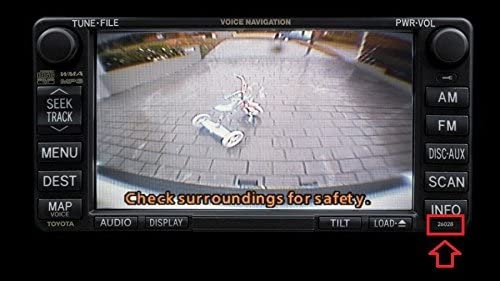

• Toyota Toyota 2DIN* 2006-2012 Radio (26028 / 26023 / E7007 / E7008 / E7009) *Toyota 2DIN are factory car radios with unified dimensions of 200×100 mm. The model is indicated on the car radio panel.
• System: US Denso GEN6 DVD Navi
• Toyota 4Runner 2010-2013 Radio (E7028 / E7029)
• Toyota Avalon 2011-2012 Radio (E7031)
• Toyota Camry, Camry Hybrid 2010-2011 Radio (E7024)
• Toyota Highlander, Highlander Hybrid 2011-2012 Radio (E7033)
• Toyota Prius 2010-2011 Radio (E7022)
• Toyota Sequoia 2010-2012 Radio (E7026)

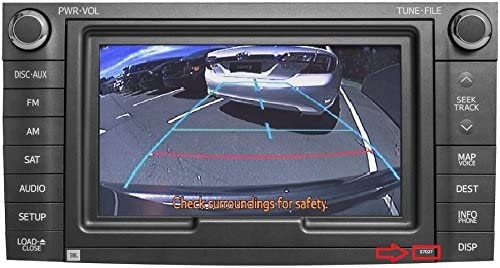

• Toyota Sienna 2011-2014 Radio (E7027)
• Toyota Tundra 2010-2013 Radio (E7026)
• Toyota Venza 2009-2012 Radio (E7021)
• Radio: EU, Asia – Aisin GEN5 DVD Navi
• Toyota Auris 2006- 2011 Radio: B9005 / B9006
• Toyota Avensis 2006 – 2011 Radio: 2DIN*
• Toyota Camry 2006 – 2010 Radio: B9007
• Toyota Corola 2006 -2011 Radio: (B9005 / 2DIN*);
• Toyota Verso Yaris 2006 -2011Radio: (2DIN*)
• Toyota Hiace 2006 – 2010 Radio: (2DIN*)
• Toyota Hilux 2006 – 2010 Radio: (2DIN*)
• Toyota LC150 2006 – 2010 Radio: (2DIN*)
• Toyota Previa 2006 – 2010 Radio: (2DIN*)
• Toyota RAV4 2006 – 2010 Radio B9004 / 2DIN*
• Toyota Verso 2006 – 2009 Radio: (2DIN*)
• Toyota Yaris 2006 – 2012 Radio: (2DIN*)

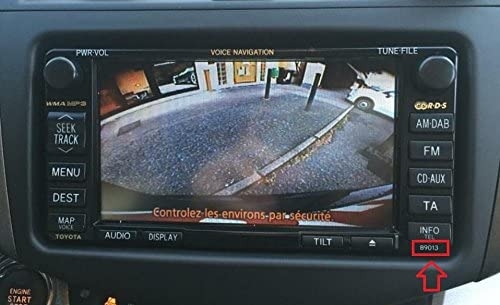

• Toyota 2006-2012: Toyota 2DIN* (B9008 / B9013 / B9014)
• *Toyota 2DIN – This is a factory radio with a universal size of 200x100 mm. The model is indicated on the radio panel (9005 and 9006)

Adapter for connecting a rear view camera to Toyota MFD GEN5/GEN6 DVD Navi Monitors, an easy way to connect a camera

Connecting a camera allows us to enjoy many additional features while driving, and above all, ensures safety while driving. While a rearview camera adapter won't protect us from a collision or accident, its presence will help us if we need to prove our innocence after the fact. Furthermore, the Toyota MFD GEN5/GEN6 DVD Navi Monitors rearview camera adapter allows for safe connection without damaging the vehicle's original wiring.
