Adapter for rear view camera Fiat 500 2016 ->, 500L, 500X 2017 -> Navigation 7 inches.

The r.LiNK interface allows you to connect a rear view camera and any two video sources (retrofit device, e.g. DVD player, DVB-T tuner, …) to the vehicle's factory infotainment system.


Product features

• The interface allows you to connect external video sources (e.g. DVD player, DVB-T tuner, etc.).
• 1 video input CVBS rear view camera
• 1 FBAS video input for retrofit devices (e.g. DVD player, DVB-T tuner, ...)
• Automatic switching to the rear view camera input when reverse gear is engaged
• Unlocking the image while driving (ONLY for video input)
• PAL and NTSC compatible video inputs

Make and model:


• Fiat 500 07 / 2016 ->
• Fiat 500L 06 / 2017 ->
• Fiat 500X 11 / 2017 ->

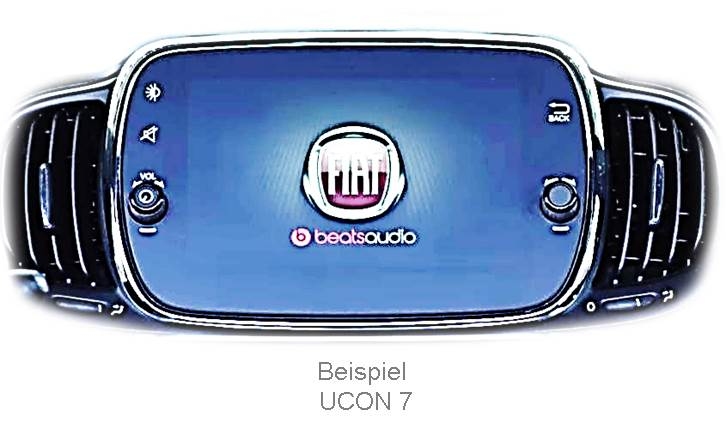

Uconnect LIVE HD / Nav LIVE HD with 7-inch monitor (VP2-312-7in + VP2 334 7in)

Limitations

The Video Only interface ONLY provides video signals to the infotainment system. The existing factory AUX audio input or FM modulator can be used to provide audio signals.
The factory rearview camera automatically switches to the rear backup camera only when reverse gear is engaged.

NOTE : The interface is built into the monitor board (you must open the monitor for this purpose)!

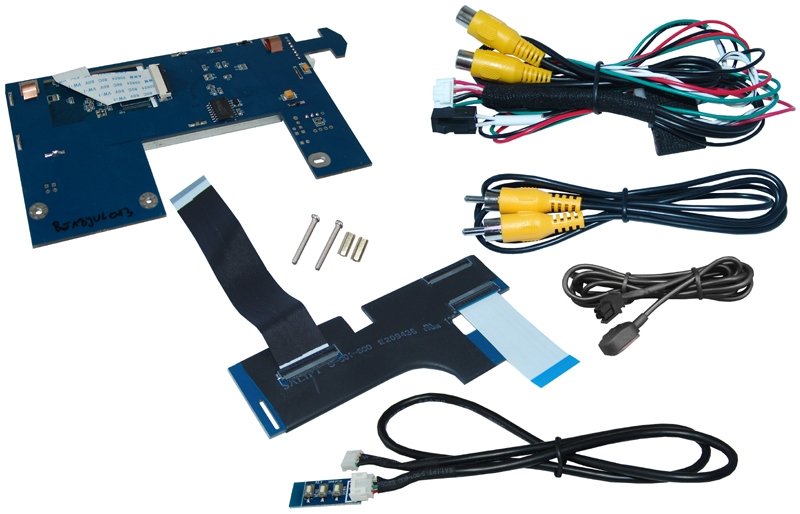

Connections

Image Source: Ribbon Cable
Video Input: RCA Jack
Rear Camera Input: RCA Jack


Technical data

Operating Voltage 7~25V DC
Quiescent Current <7mA
Current Consumption 125mA @ 12V
Video Input 0.7~1V
Video Input Formats PAL/NTSC
Operating Temperature Range -40°C to +85°C
PCB Module Dimensions 1,164 x 11 x 82mm (W x H x D)
PCB Module Dimensions 2,118 x 3 x 52mm (W x H x D)
