Description

Professional digital battery tester

The tester is compatible with the following batteries:

• Acid/Lead (regular/ordinary batteries)
• AGM flat/plate
• AGM spiral
• Gel
• EFB

Testing 6V and 12V batteries and a wide measurement range from 2AH to 220AH

11 languages ​​available, including POLISH (English, Spanish, German, French, Italian, Russian, Portuguese, Japanese, Chinese, Korean).

The tester allows you to measure:

• voltage and battery charge percentage / battery test
• starting current / starting test
• alternator operation / charging test
• battery internal resistance

Power standards

• CCA 100-2000
• JIS 26A17–245H52
• DIN 100-1000
• IEC 100-1000
• EN 100-2000
• SAE 100-2000
• BCI 100-2000
• MCA 100-2000
• CA 100-2000
• GB 2-220AH

Additional functionalities:

• Quick battery test
• Preview and save performed tests
• Preview of parameters in the form of a graphical chart
• One of the more interesting functions is taking a screenshot (PrintScreen) by pressing the up and down buttons simultaneously for 3 seconds. You can take 5 screenshots and then connect the device to a laptop with a USB cable and print, for example, a saved measurement, graph, or other parameter from the SNAPSHOT folder.

Battery testing in:

• Cars
• Motorcycles
• Scooters
• Scooters
• Alarm control panels
• UPS emergency power supply
• Cordless tools
• and many others.

Specification:

1. Working Environment Temperature: 0*C to 50*C
2. Storage temperature: -20*C to 70*C
3. Housing material: acid-resistant ABS plastic
4. Battery Capacity Measurement Range: 2Ah-220Ah
5. Voltage/Application: 6V and 12V
6. Input voltage: 5V~20V

Battery status measurement results in %:

• SOC – battery charge status
• SOH – battery health status

The set includes:

1. Tester
2. USB printing cable
3. User manual
4. Original cardboard packaging

There is no need for additional batteries or accumulators to power the device, as it draws power directly from the clamps of the tested car battery.

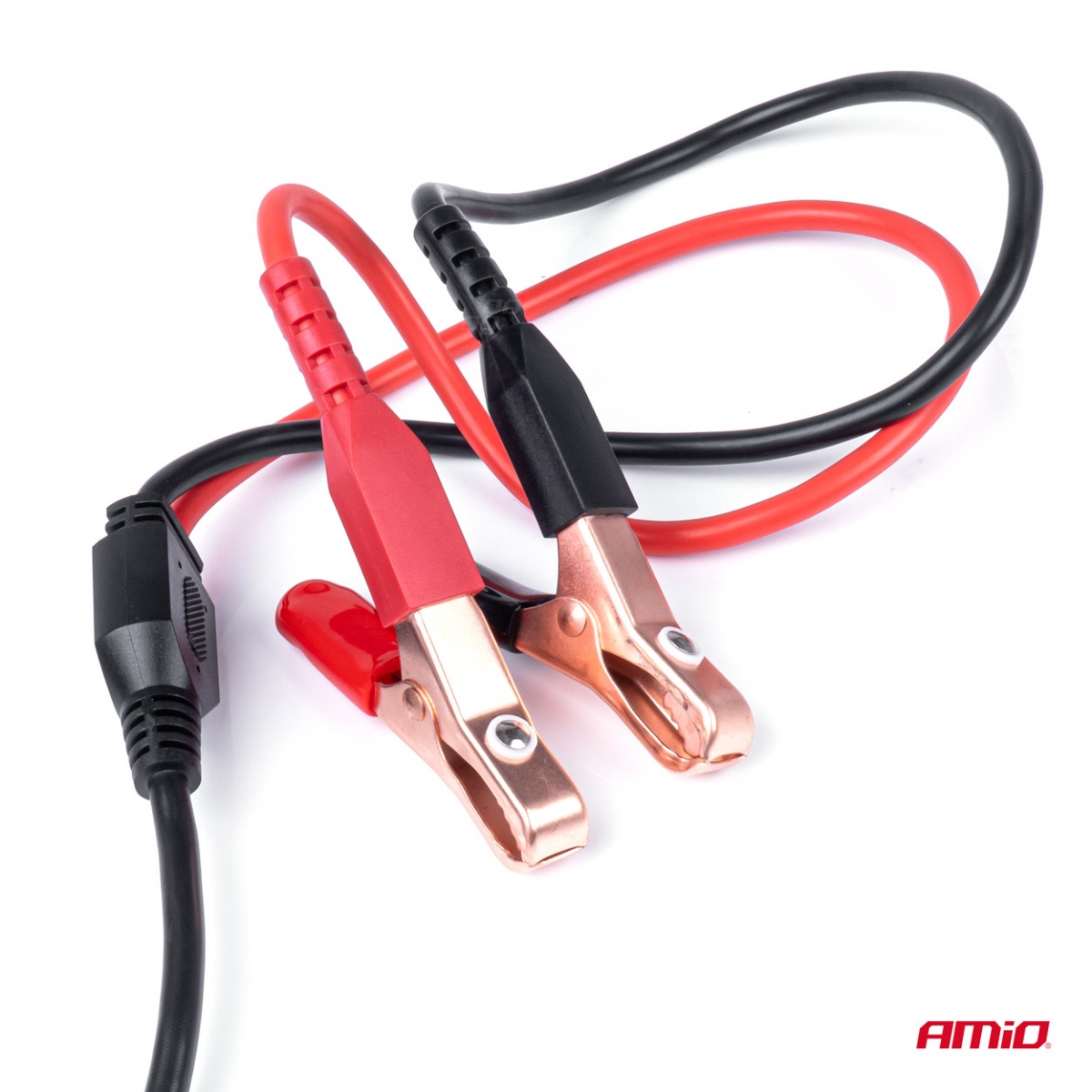

Cable connection:

• red (+)
• black (-)

1. The device works immediately after being connected to the tested power source.
2. Detects bad batteries.
3. Reverse polarity protection. A wrong connection won't damage the tester/battery/car.
4. Direct battery test with charge drops. There is no need to fully charge the battery before testing.
5. The battery test primarily focuses on analyzing battery life by calculating its current capacity and wear. It will help you determine whether the battery needs to be replaced.
6. The test will allow you to assess whether the battery supplies the car with the appropriate current when starting and running the engine.
7. The charging test allows you to analyze the vehicle's charging system to check if the voltage in the electrical system is correct.

Advantages:

1. Simple and easy to use
2. Test battery in and out of vehicle (menu selection)
3. Large, easy-to-read color LCD display
4. Test results based on CCA, CA, JIS, EN, DIN, SAE, IEC, BCI, MCA, GB standards.
5. Testing the Vehicle Starting System: Cranking Time, Voltage and Condition
6. Vehicle charging system test: load voltage, no-load voltage
7. AH range: 2-220AH

Device dimensions:

• height: 12cm
• width: 6.5cm
• thickness: 2cm
• length of measuring cables: 70cm
