FineVu GX1000 CLOUD – 2xQHD recorder, cloud

car camera without screen QHD+QHD Sony Starvis, WiFi, GPS, HDR, ADAS, speed cameras, Parking mode, battery protection, cloud compatibility, no card required

FineVu GX1000 CLOUD (without memory card)

A high-quality, feature-rich premium car DVR without a display, featuring excellent image quality from the front and rear of the vehicle, easy operation in Polish, access to functions in the "FineVu Cloud," and a compact, flat design with an elegant style. The FineVu GX1000 CLOUD is equipped with two 2.5K Quad HD cameras – both with a top-of-the-line Sony Starvis 5.14 Mpx optical sensor with HDR. The recorder features a built-in GPS module, dual-band 2.4/5 GHz Wi-Fi, Bluetooth, a speed camera and average speed camera alert, ADAS Plus driving assistance systems, a front camera tilt adjustment assistant, and innovative "Format Free" recording technology that eliminates the need for frequent formatting of the memory card. Video from both cameras is continuously buffered in the internal memory, allowing event recordings (e.g., a collision, accident) to document the time 10 seconds before and 10 seconds after the event. The FineVu GX1000 CLOUD recorder is also equipped with an energy-saving parking mode with very low current consumption from the vehicle battery (approx. 5 mA) and a professional active parking mode with shock and motion detection (front and rear) along with a built-in battery discharge protection system that works with the electrical installations used in combustion, hybrid and electric vehicles and trucks.

The GX1000 CLOUD dashcam can (but does not have to) be compatible with the FineVu Cloud. This option is only available after the dashcam has internet access, for example, through an additional mobile Wi-Fi router with an LTE modem, a smartphone hotspot, an in-vehicle hotspot, or another internet access point. If cloud compatibility is not used, the dashcam operates as usual, like any other FineVu model, and is controlled via a smartphone app connected via Wi-Fi.

We also offer a complete set: GX1000 CLOUD video recorder + 128GB memory card + LTE modem with Wi-Fi + professional modem power supply for vehicles with any electrical installation (12-30V), which has a built-in system protecting the vehicle battery against deep discharge in parking mode.

TECHNICAL SPECIFICATIONS:

• Premium class video recorder without a screen – 2 cameras 2.5K (QHD+QHD), 2xHDR, GPS, Wi-Fi 5 GHz, BT, speed camera database, cooperation with the FineVu Cloud (option with an LTE modem).
• High quality workmanship and very low failure rate (less than 0.2%).

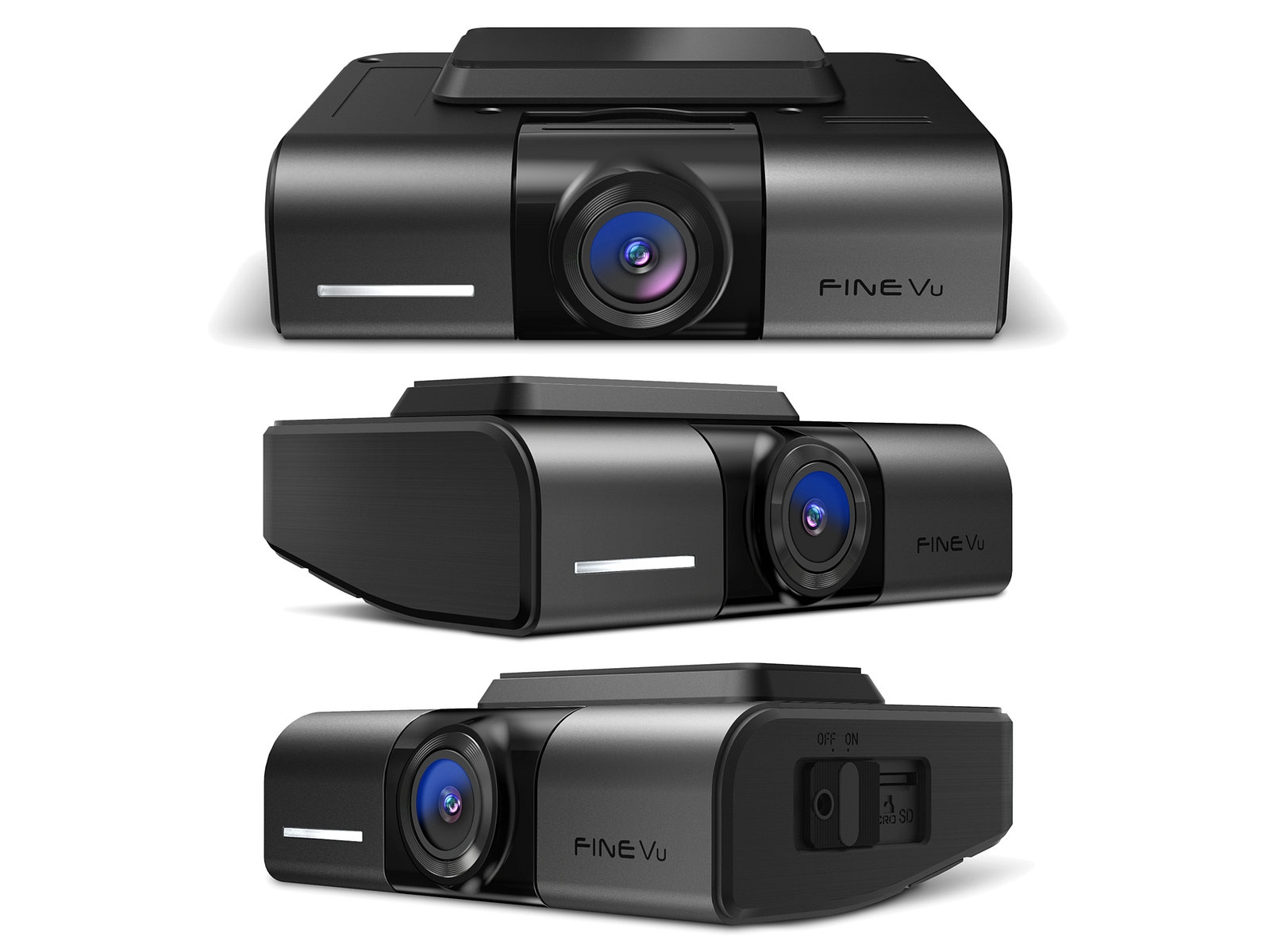

• Hardly visible from the outside, the flat housing ensures discreet mounting parallel to the windshield without protruding brackets.
• Video resolution – front camera: 2.5K Quad HD / 2560x1440p (30 fps).
• Video resolution – rear camera: 2.5K Quad HD / 2560x1440p (30 fps).
• Optical sensor – front camera: 5.14 Mpx, 1/2.8″, Sony Starvis IMX335 CMOS.
• Optical sensor – rear camera: 5.14 Mpx, 1/2.8″, Sony Starvis IMX335 CMOS.
• Camera lenses: wide-angle with glass lenses, F/1.8 front, F/1.8 rear.
• Front/rear camera lens viewing angle: 139° / 141° (diagonal).
• Rear camera – installation: glued to the window inside the vehicle cabin, cable length 6 m.
• Processor: Allwinner V536 Dual-Core Cortex A7 1.2GHz.
• Display: no screen, operated by iOS / Android smartphone with a dedicated application.

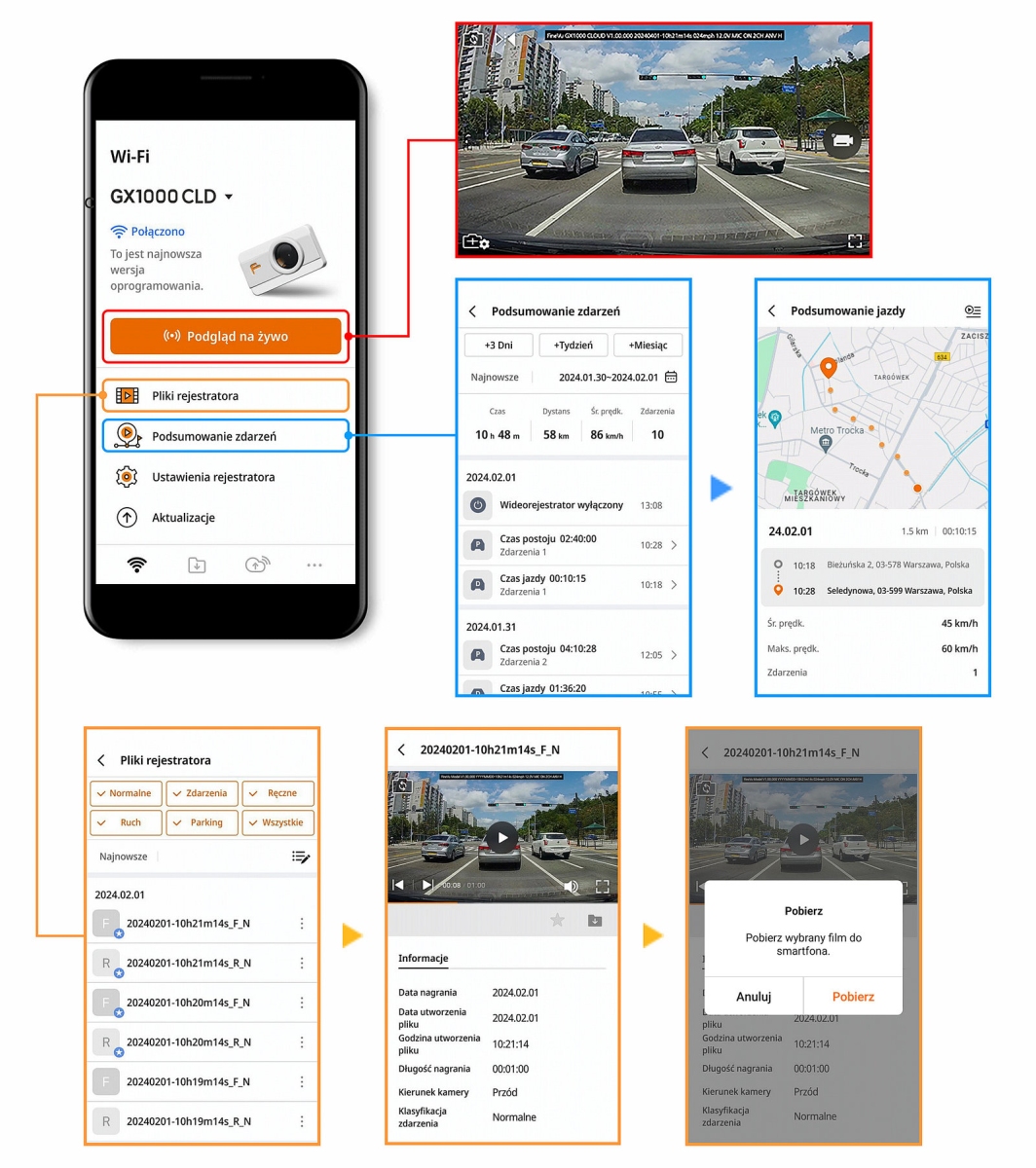

• "FineVu CLOUD & Wi-Fi" application : function settings, live image preview, viewing and downloading recordings, number and details of events, driving and parking time, distance traveled, average driving speed, route preview on the map, software update, connection configuration and operation of functions available in the FineVu cloud.
• Possibility of local Wi-Fi operation of up to 15 video recorders in one smartphone application (only models with the word CLOUD in the name) and remote use of cloud functions that are available for one recorder paired with each account registered in the free plan.
• Cooperation with the FineVu Cloud – this option is only available after providing the recorder with an Internet connection, e.g. via an additional mobile Wi-Fi router with an LTE modem, a hotspot available in the vehicle or another Internet access point.
• The main functions of the FineVu Cloud: remote access to the recorder settings and live image viewing via the cellular network, automatic uploading of recordings with detected shock events while driving and parking to the cloud, real-time push notifications sent to the smartphone about detected events, switching the Driving/Parking mode, switching the recorder to low-power mode or turning off the device, notifications about the lack of memory in the cloud, setting the type of notifications sent, viewing, playing and downloading recordings from the cloud, viewing events, driving parameters and routes on the map, driving style results, software updates, etc.
• Driving recording methods: Standard.
• Parking mode recording methods: Motion / Low Power.
• Video recording format: MP4, H.265 codec, separate files for front and rear cameras.
• Possibility to change the recording quality (bitrate), which affects the file size: Standard / High.
• Maximum bitrate (front+back): 16+16 Mb/s, file size approx. 110+110 MB, 1 minute.
• Adjusting the brightness of the rear camera image (e.g. to match tinted glass).
• Changing the rear camera view in the horizontal plane (normal or mirror-like).
• LED brightness setting: 3 levels, auto or off.
• Memory card compatibility: FineVu MicroSD cards with a capacity of 32–256 GB . Other brand cards with a capacity of up to 128 GB, class 10+ UHS-I, Endurance type (not tested long-term).
• Recommended memory cards – the manufacturer recommends using the recorder with high-quality FineVu memory cards with a capacity of 32–256 GB, which ensure long and trouble-free operation with continuous video recording in a loop. The best choice (reliability – usability – price) is the 128 GB FineVu card. Other brand memory cards have not been thoroughly or long-term tested with this device, so the manufacturer cannot guarantee that the recorder will always function properly when used with such cards without the risk of recording loss. Device malfunctions caused solely by using a memory card other than the recommended one are not grounds for a warranty claim.
• Memory card included in the set: NONE.
• Emergency power backup: built-in supercapacitor (used to ensure proper termination of the last recording in the event of a sudden mains power cut).
• Microphone and speaker: built into the device.
• GPS module with antenna: built into the device.
• Wi-Fi / BT module: 2 frequency bands 2.4 / 5 GHz, Bluetooth 4.2, inserted into the device's built-in USB socket (Dongle).
• Shock and acceleration sensor (G-sensor): 3-axis accelerometer with separate sensitivity adjustment for Parking mode and Driving mode (+2G / -2G).
• Detection of moving objects in the camera lens frame: works in Parking mode on both cameras, common sensitivity adjustment for the front and rear cameras.
• HDR (High Dynamic Range) front and rear – improves the readability of dark and light image details (e.g. overexposed or underexposed license plates).
• Auto Day & Night Vision – automatic night mode and correction of image parameters during the day and at night.
• Free DFS Format – a storage system that does not require regular formatting of the memory card.
• Easily find videos in dedicated folders by recording type: Normal, Events, Parking, Motion, Manual.
• Protection of individual folders (lock) against overwriting files in a loop.
• ADAS Plus – advanced driver assistance systems: traffic flow assistant (FVMA), lane departure warning system (LDWS) and driver fatigue assistant.
• Mounting Angle Assistant – helps you correctly set the front camera lens angle in vehicles of different heights – for better recordings and ADAS system performance.
• GPS informant warning about stationary speed cameras, red light cameras, section average speed cameras, etc.
• Free update of the speed camera and road camera database every 3 months (in Europe available for: Poland, Germany, France, Estonia, Greece, Spain, the Netherlands, Romania, Russia, Great Britain).
• Possibility to disable the display of vehicle speed in videos.
• Possibility to add your own short text (up to 20 characters) at the bottom of the videos.
• Professional active parking mode with shock and motion detection and deep discharge protection for the vehicle battery. This protection shuts off the recorder after a pre-set time and/or when the battery voltage drops below the set value for 12V and 24V vehicles.
• Option for hybrid and electric vehicles – additional voltage range for the battery discharge protection system used in electric vehicles and in some hybrid cars in which the on-board voltage is above 13V after the ignition is turned off (e.g. some Hyundai and Kia hybrids).
• Winter setting – further increases the effectiveness of the battery protection system in more difficult winter conditions.
• Energy-saving parking mode option with very low current consumption (approx. 5 mA).
• Continuous buffering of the video stream in Driving and Parking modes – event recordings (e.g. collision, accident) cover the time 10 seconds "backwards" before the event and 10 seconds after the event.
• Voice information about the number and type of events detected during the last stop.
• Warnings, alerts and voice notifications in Polish.
• Possibility to individually enable and disable different groups of voice messages.
• REC button to manually save the current traffic situation in another folder.
• Flat holder glued to the glass with 3M VHB tape for mounting/sliding the recorder.
• Mechanical power switch of the recorder with memory card lock – a convenient solution that can be useful when you temporarily do not want to use the automatically activated parking mode (e.g. home garage) without having to launch the settings application.
• Intelligent (AI) overheating protection protects the recorder. At very high temperatures while parking on hot days, it doesn't shut down the device (like other recorders) but automatically switches to energy-saving, low-power parking mode. This ensures the recorder is always ready to document events while parked, even on hot days.
• 3-wire power cable (BAT, ACC, GND) for permanent connection to the vehicle's installation (e.g. in the fuse box), which automatically switches the recorder's operating modes Driving / Parking using the ignition switch and ensures continuous power to the camera while driving and parking.
• A 2-wire power cable with a plug for the car cigarette lighter socket, which allows for a temporary or portable power installation for the video recorder without the possibility of using parking mode.
• Operating temperature: -20°C to +70°C.
• Storage temperature: -30°C to +80°C.
• Supply voltage (DC): 12 – 24 V.
• Power consumption in Parking / Motion mode (2 cameras, shock and motion detection): < 4.5 W (360mA/12.5V).
• Power consumption in Parking / Motion + Cloud mode (2 cameras, shock and motion detection, Wi-Fi): < 4.8 W (385mA/12.5V).
• Power consumption in Parking / Low Power mode (shock detection): < 0.06 W (5mA/12.5V).
• Dimensions and weight of the recorder with holder: 96 x 70 x 26 mm / 114 g.
• Dimensions and weight of the rear camera with holder: 47 x 36 x 29 mm / 23 g.
• DVR/Rear camera housing color: Black, brushed sides/Black.
• The product was developed and manufactured in South Korea by FineDigital / FineVu.
• Language of voice prompts and smartphone application: Polish , English, German, French, Spanish, Russian, Japanese, Korean, Vietnamese.
• “FineVu Wi-Fi” – an application for operating the recorder with a smartphone – can be downloaded free of charge from the Google Play Store (Android) and the App Store (iOS).
• “FineVu Player” – a video player for viewing and downloading recordings from the recorder’s memory card on a computer – available for download from the FineVu Polska website.
• The kit includes a quick, multilingual user manual (provided by the manufacturer). The full manual in Polish can be downloaded from the FineVu Polska website.
• Standard warranty : 24 months for individual customers, companies and institutions.
• Extended warranty : 36 months for customers as above, if the recorder purchased from any Polish seller (including online) is installed in the user's vehicle by the service center of any selected FineVu Partner .

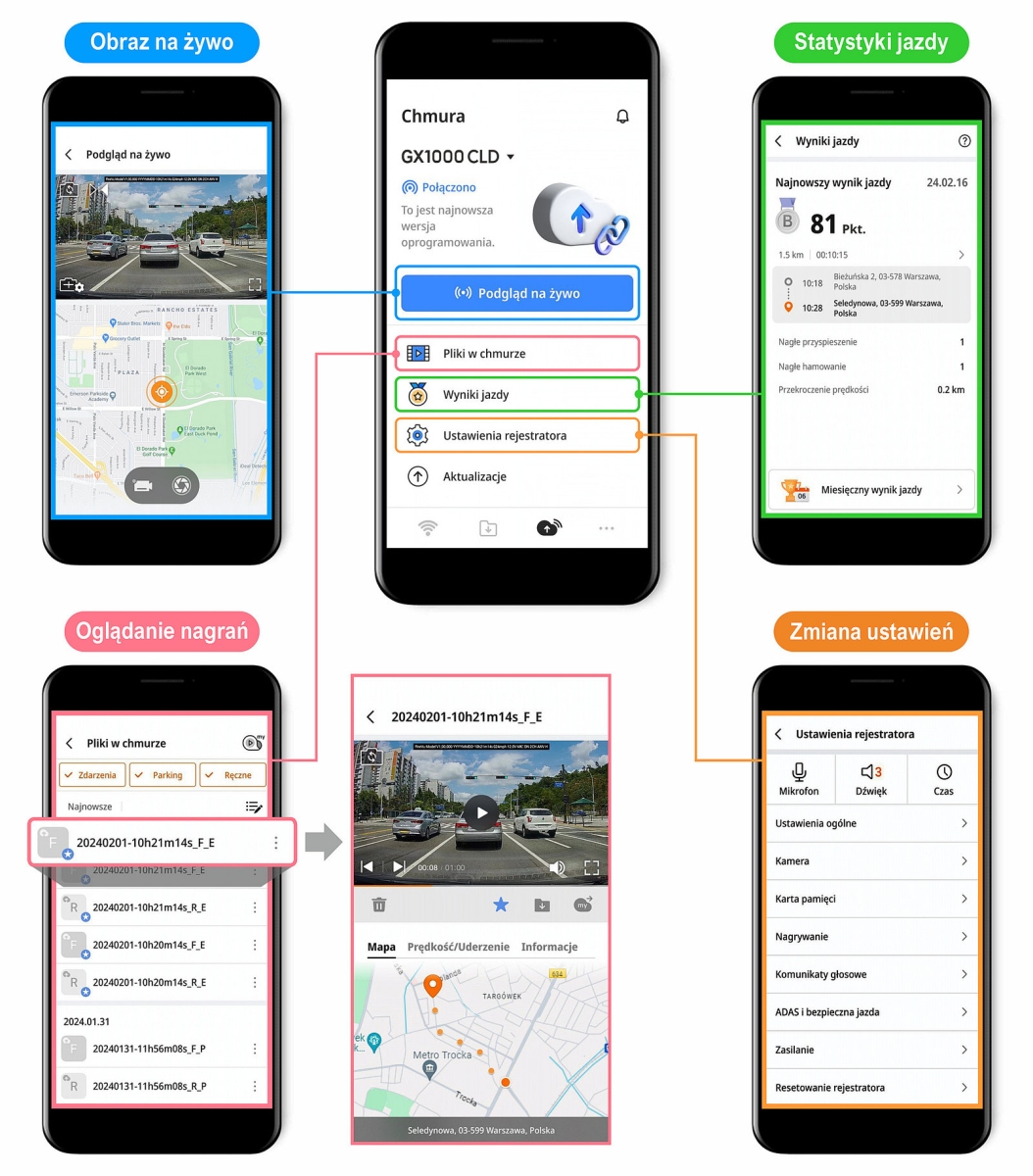

• FineVu CLOUD KEY FEATURES in the free plan:

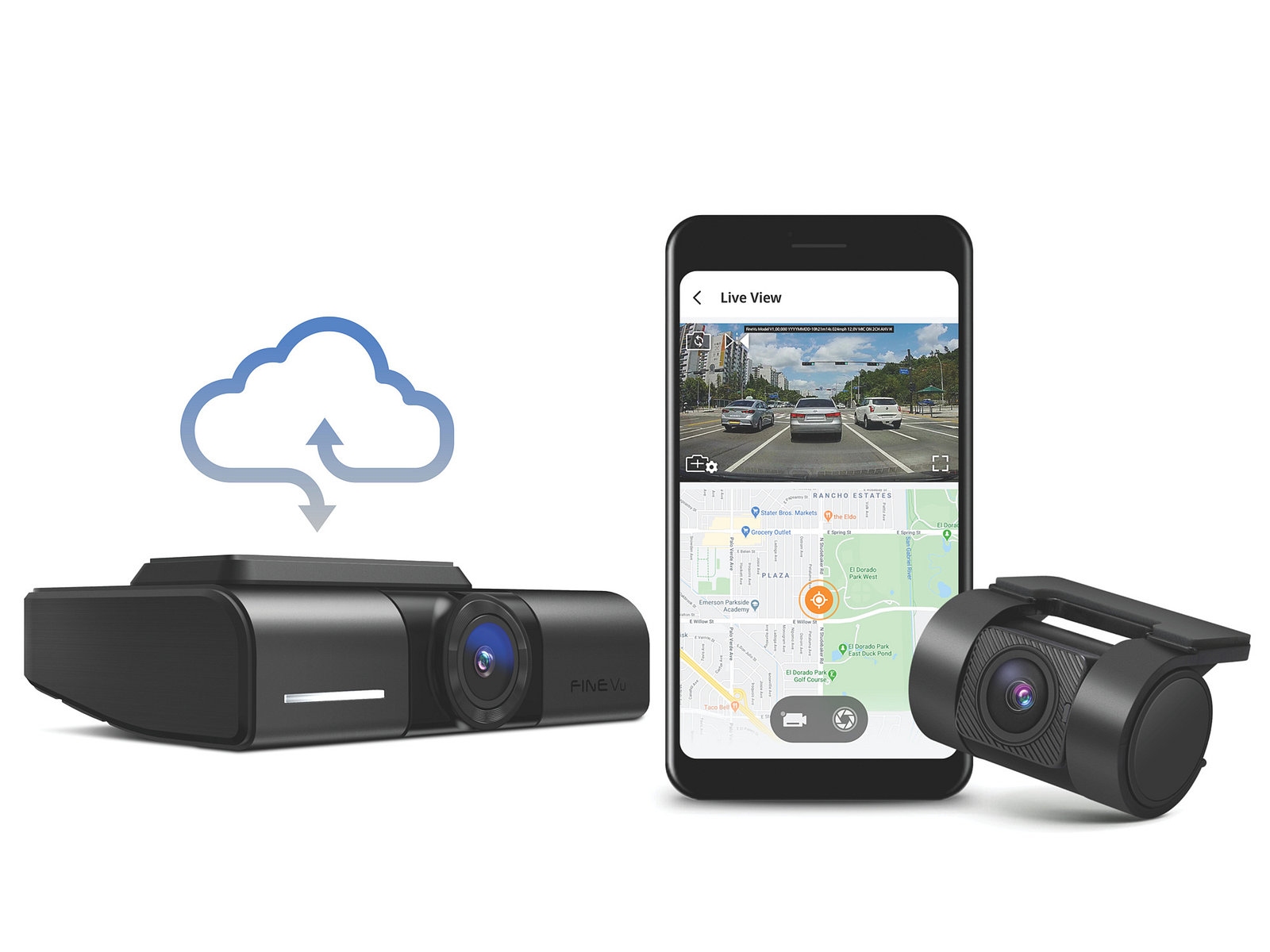

• Live View – remote viewing of real-time images from the front and rear cameras of the recorder via the smartphone's cellular network.
• Video Upload – Automatically upload manual emergency recordings and videos documenting shock-detected events that occur while driving and in parking mode to the cloud. Videos automatically uploaded to the cloud as a backup of detected event recordings document the time 5 seconds before and 5 seconds after the event.
• Cloud file – remote playback, downloading to your smartphone and moving to your own “My Cloud” folder videos with events automatically uploaded to the cloud.
• Notifications – Automatic, real-time push notifications to your smartphone inform you of: shock/impact detection in Driving and Parking modes, Driving/Parking mode switching, camera switching to low-power mode, insufficient cloud storage, cloud connection status, and recorder shutdown. You can customize the type of notifications you receive.
• Driving Results – analysis of your driving style based on recent and monthly driving parameters and GPS data.
• GPS tracking – check the current location of the vehicle and view the history of routes traveled on the map.
• Updates – Check currently installed and available new versions of the recorder's system software, voice language version, and speed camera database. Remotely update the recorder online via a smartphone app.
• Cloud Settings – Check the cloud connection status, mobile router or hotspot connection, cloud plan (free or paid) and real-time usage report (storage limit usage counter and amount and time of watching, downloading, playing).

NOTE!

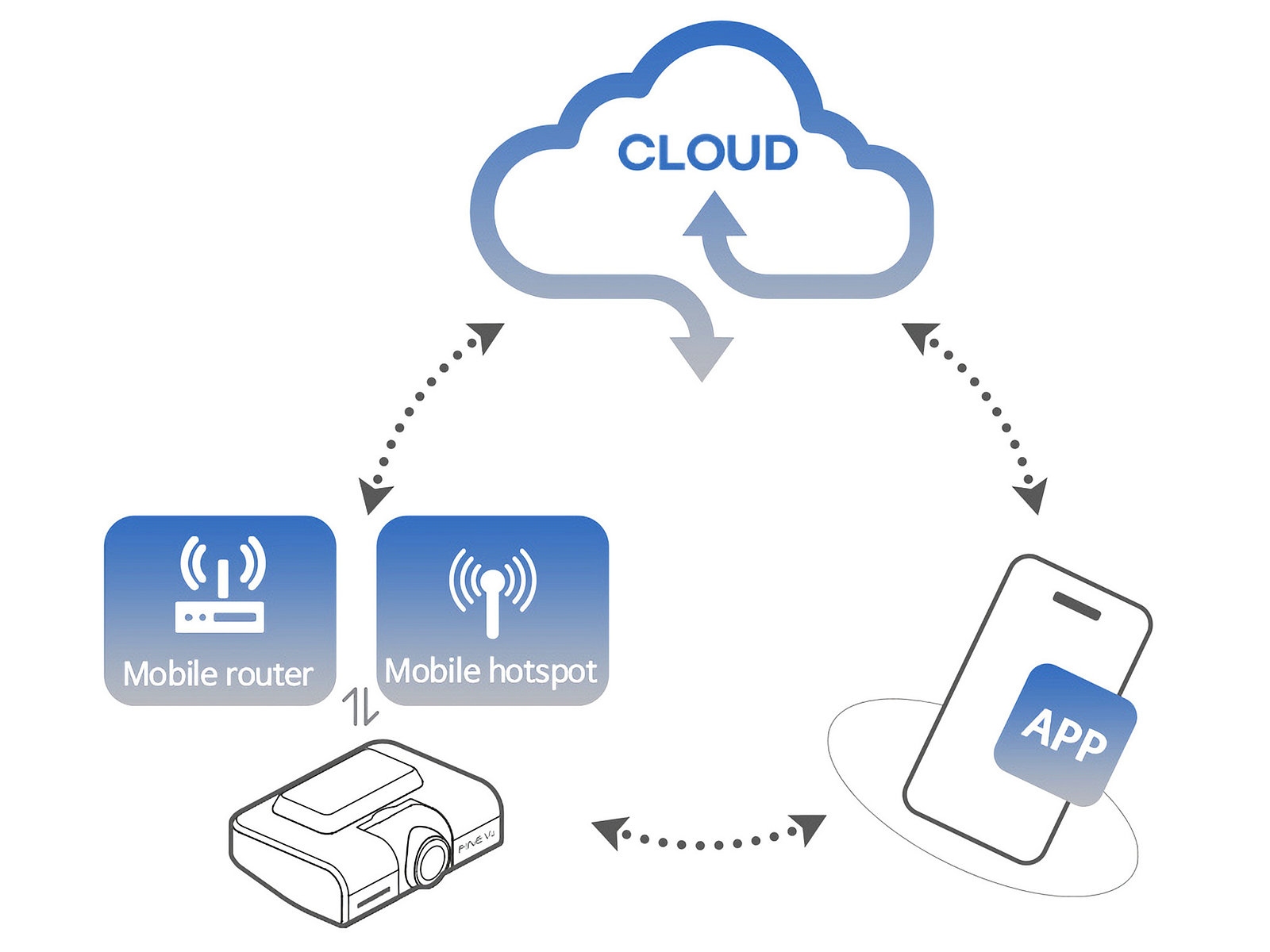

To use the cloud feature, the recorder must be connected to the internet, for example, via an external mobile Wi-Fi router with an LTE modem, a smartphone hotspot, a vehicle's Wi-Fi network, or another internet access point via Wi-Fi and a cellular network. We also offer a complete kit containing all the components necessary for the video recorder to work with the cloud (a GX1000 CLOUD recorder with a 128GB card, an LTE modem with Wi-Fi, and a professional modem power supply with a built-in circuit that protects the vehicle's battery against deep discharge in parking mode).

Set contents:

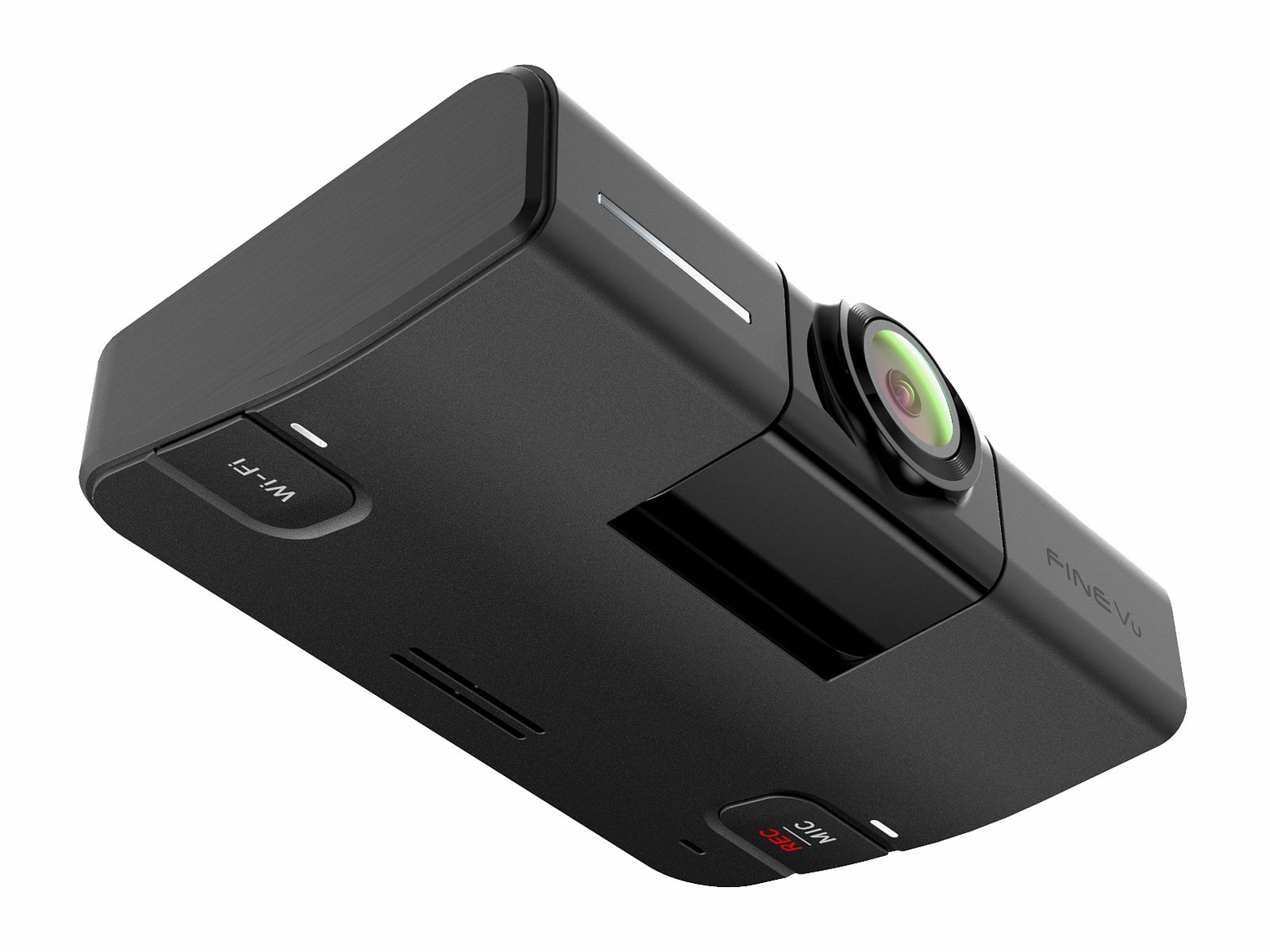

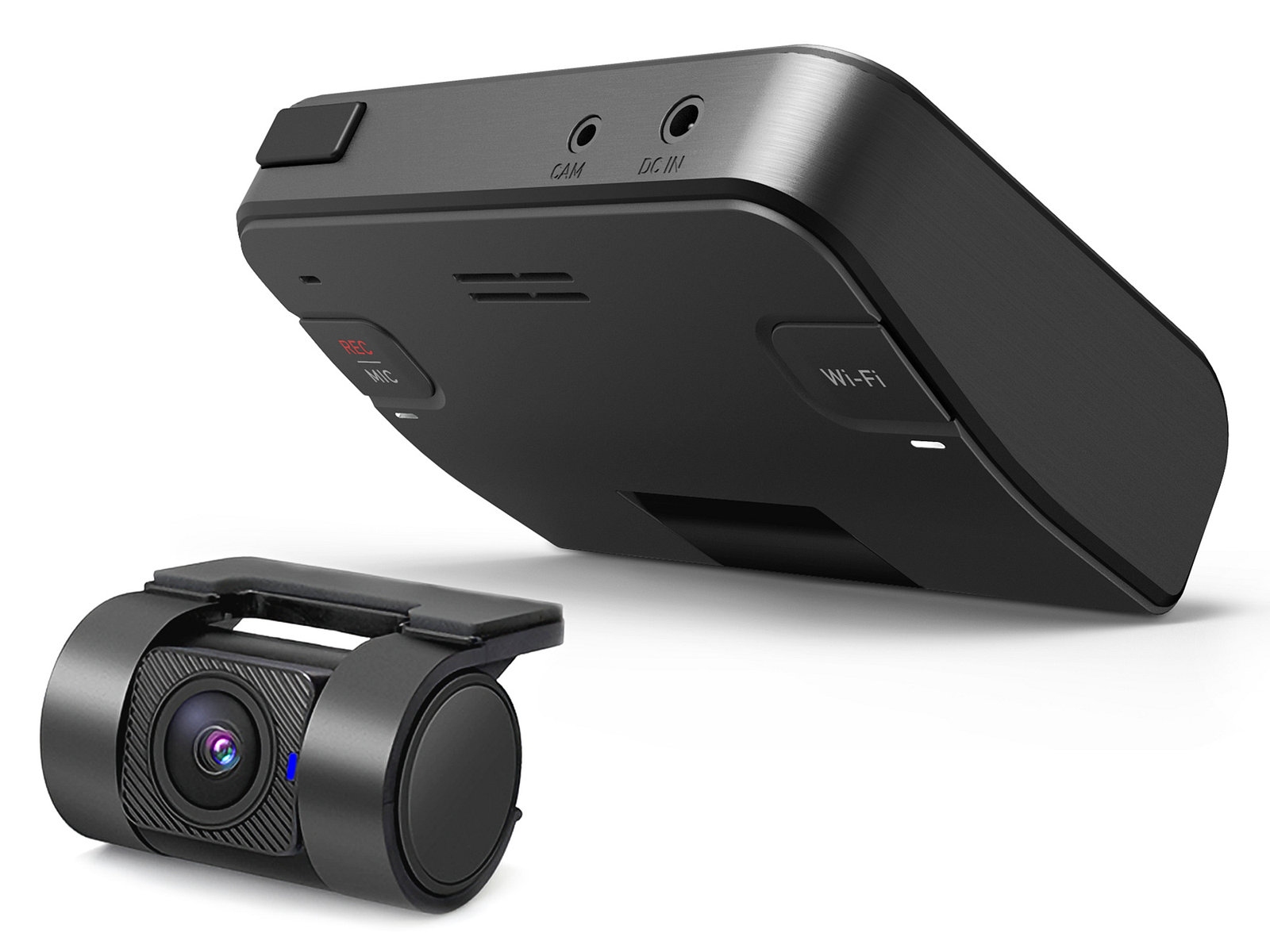

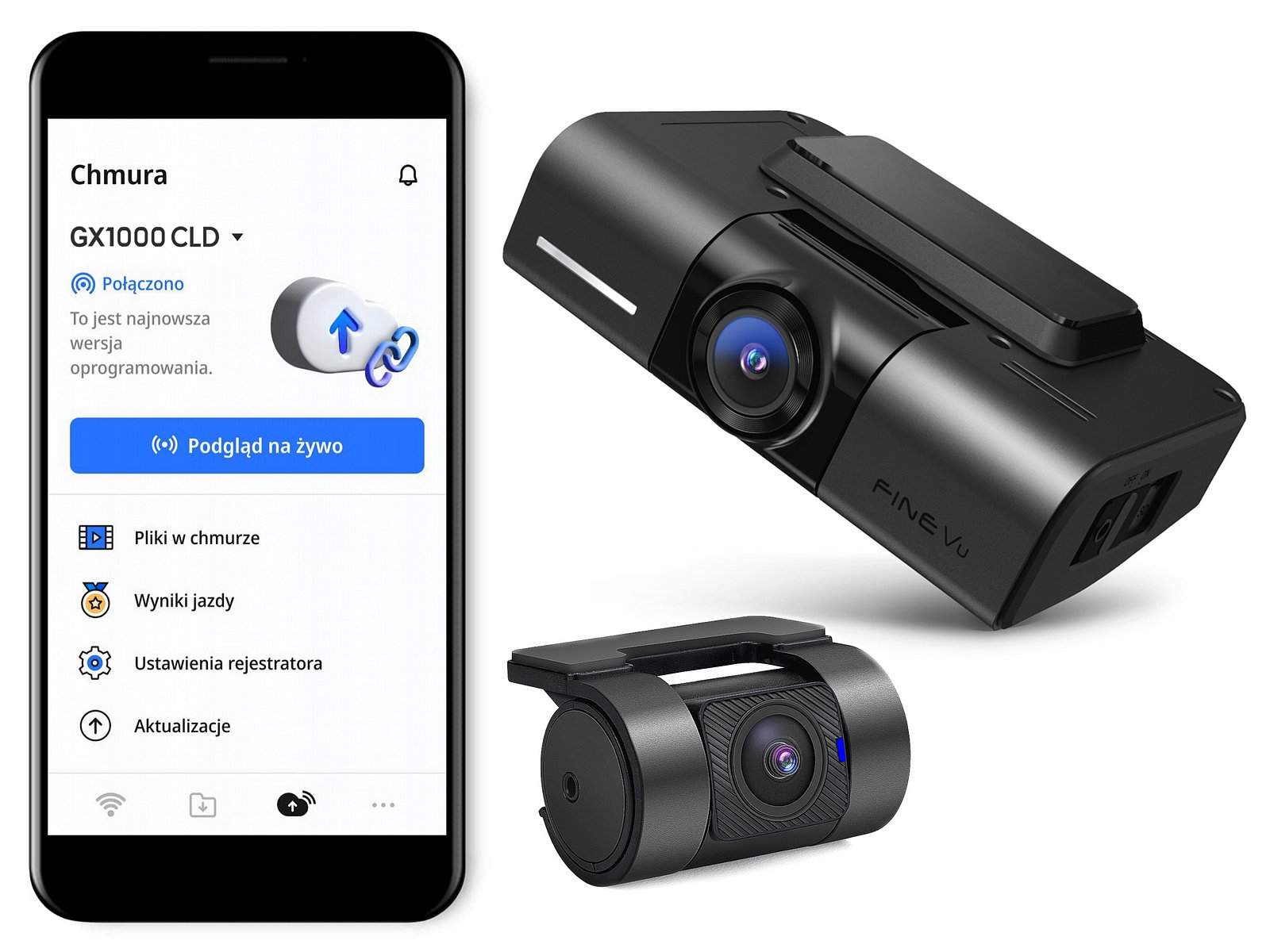

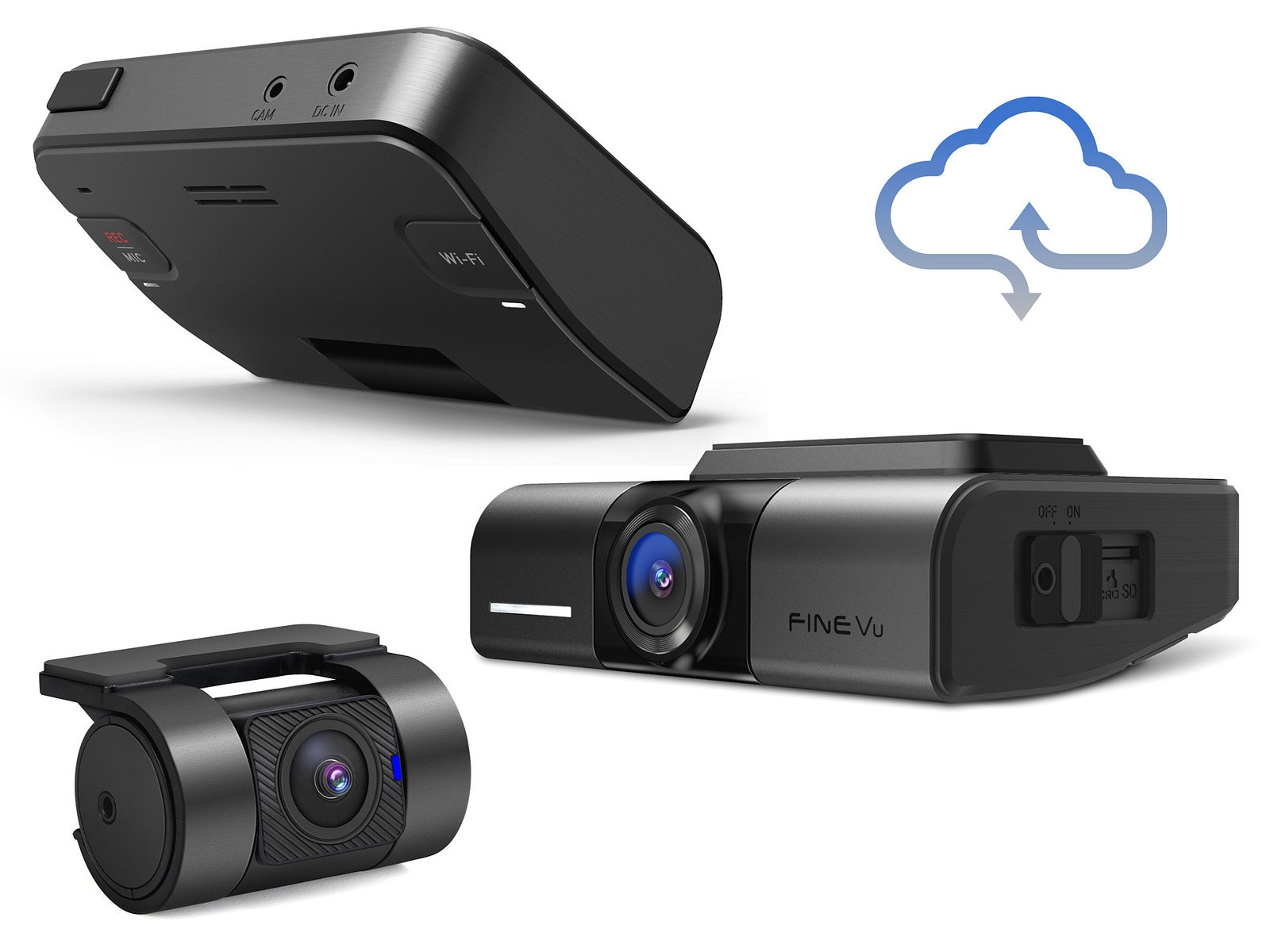

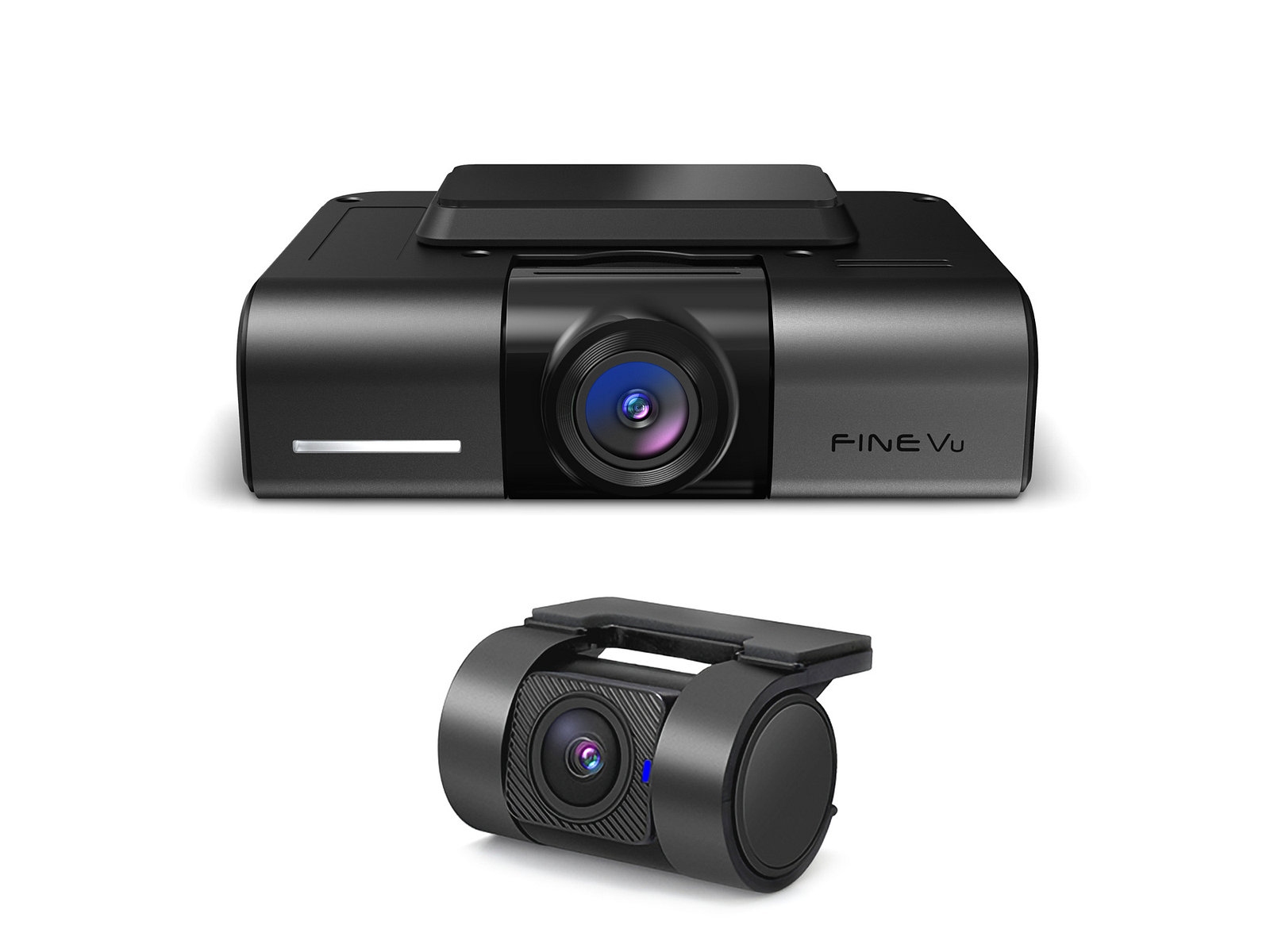

• FineVu GX1000 CLOUD video recorder with GPS, Wi-Fi and cloud functionality (front camera).
• A holder for securing the recorder to the windshield with 3M tape (also for vertical).

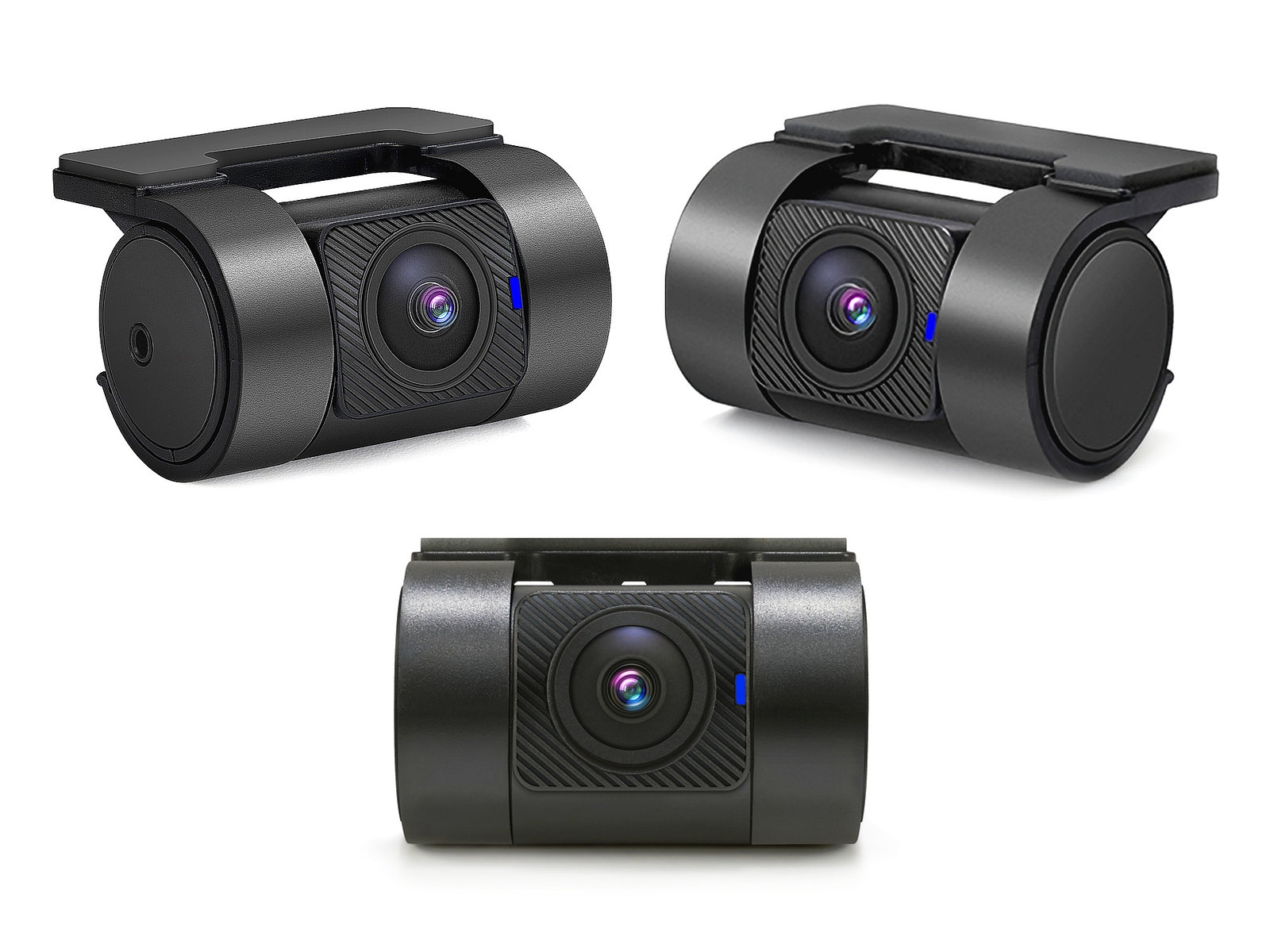

• Rear (interior) camera attached to the rear window with 3M tape.
• 6m rear camera cable.
• 3-wire power cable for permanent connection of the recorder to the vehicle installation – length 3 m.
• 2-wire power cable with cigarette lighter plug – 3 m long.
• Spare 3M adhesive tapes for the mount and rear camera – 1 pc each.
• Adhesive cable holders – 4 pcs.
• Quick start guide (the full Polish version can be downloaded from the FineVu Polska website).
• Warranty card from the Polish importer.

The kit includes all the necessary accessories, except for a memory card. There's no need to purchase any additional cables, external modules, or power adapters for traditional parking mode (without the cloud feature). The FineVu GX1000 CLOUD comes with all this as standard. To use the optional cloud features, the recorder requires internet access, e.g., via an external mobile Wi-Fi router with an LTE modem, a smartphone hotspot, etc.
