FineVu GX400 1CH /128GB Video Recorder – QHD WiFi GPS Recorder

Description

FineVu GX400 1CH /128GB – QHD WiFi GPS Recorder

car camera without screen QHD, Sony Starvis, WiFi, GPS, HDR, ADAS, speed cameras, Parking mode, shock, motion, 5mA consumption, Format Free, 128GB card

---

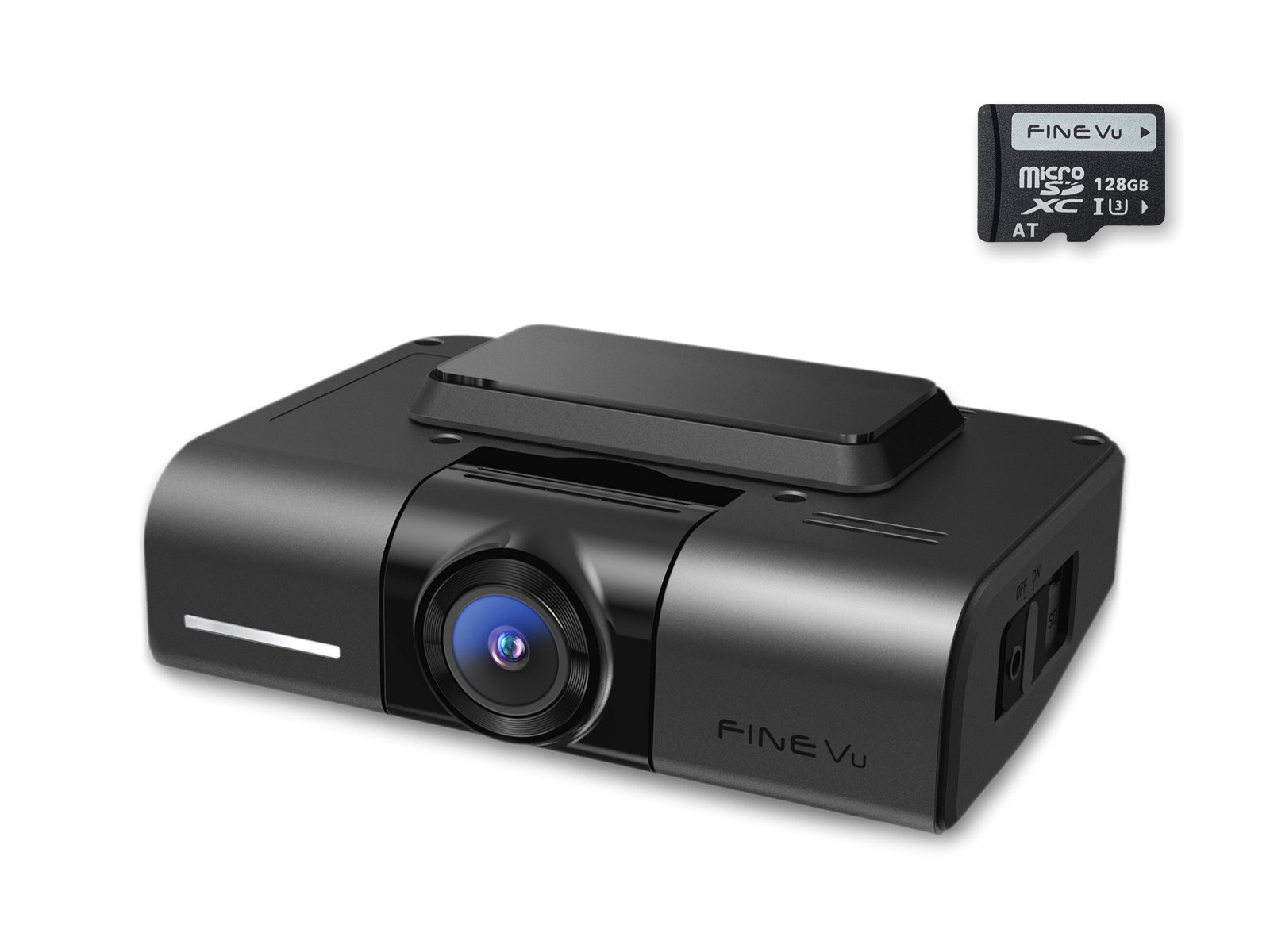

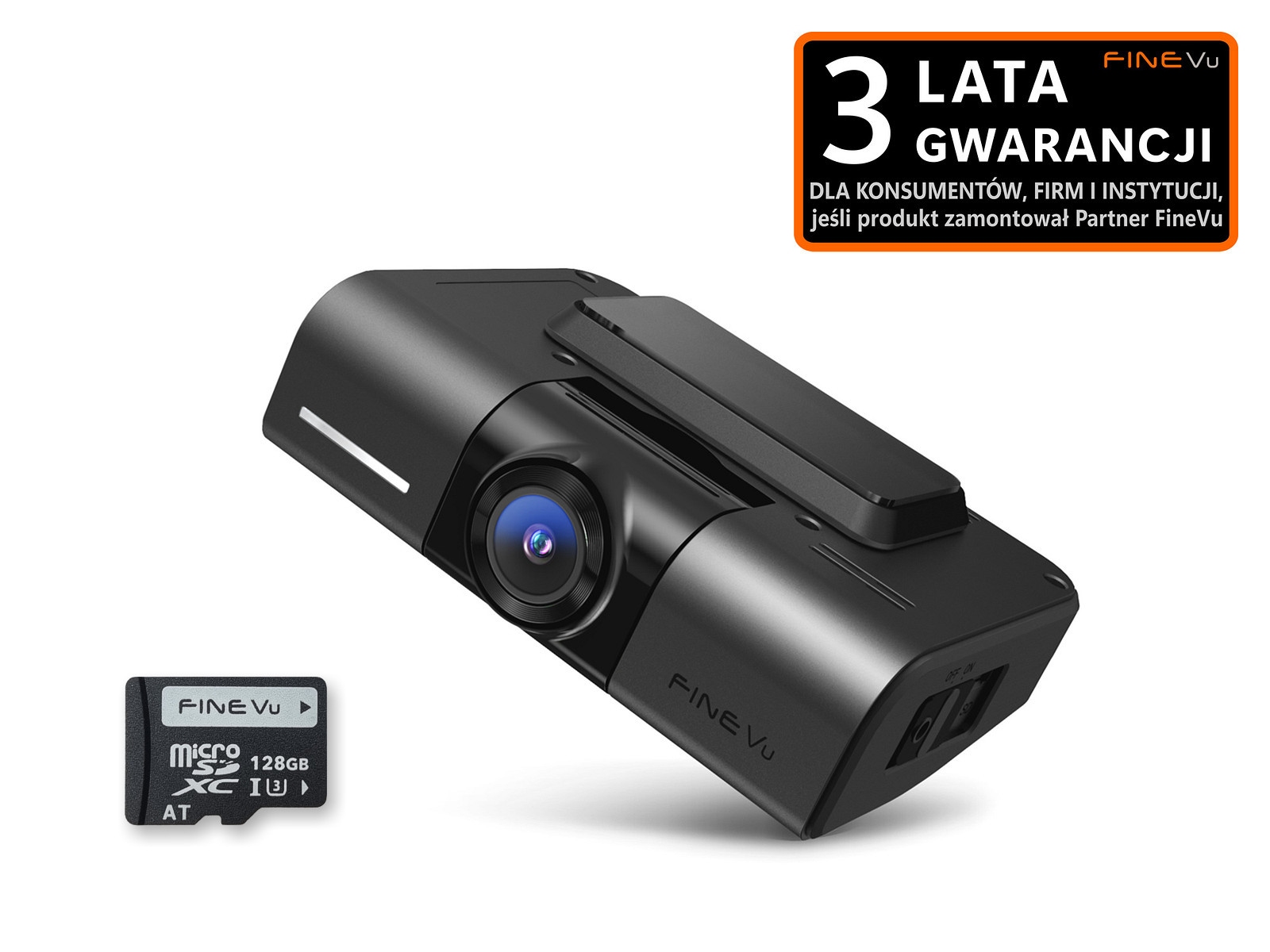

FineVu GX400 1CH (one camera) with   128GB

A high-quality, feature-rich, premium car DVR without a display. The FineVu GX400 1CH is a single-channel model that leverages many of the solutions and technologies found in the more advanced GX1000 model, effectively serving as a more affordable single-camera version with slightly more modest equipment. It shares the same excellent image quality from the front camera as the GX1000, offering easy operation in Polish, a wide range of useful functions and settings, and a compact, slim design with an elegant style. The GX400 1CH has a 2.5K Quad HD front camera, which utilizes a high-quality Sony Starvis 5.14MP optical sensor with HDR. This model does not come standard with a rear camera, but is ready for easy upgrade with one, which can be purchased at any time, along with a cable. The recorder also has a built-in GPS module, Wi-Fi, information about speed cameras and average speed control cameras, ADAS Plus driving assistance systems (FVMA and LDWS) and the innovative “Format Free” recording technology, which frees the user from the need for frequent maintenance formatting of the memory card in order to maintain the full functionality of the device.

Video is continuously buffered in internal memory, allowing event recordings (e.g., a collision) to capture the 10 seconds before and 10 seconds after the event. The proprietary "Smart" time-lapse recording mode (variable frame rate) significantly saves memory card space. It allows for up to five times more real-time recording compared to standard recording without compromising image quality or smooth motion in event recordings. The FineVu GX400 1CH DVR features an energy-saving parking mode option with very low current consumption from the vehicle battery (approx. 5 mA), as well as a fully professional parking mode with shock and motion detection, along with systems that protect the vehicle battery against deep discharge. This mode also works in hybrid vehicles with on-board electrical systems that increase the voltage to over 13V after the ignition is turned off (e.g., Hyundai, Kia).

TECHNICAL SPECIFICATIONS:

• High-end 2.5K video recorder without screen – 1 QHD camera, GPS, Wi-Fi, HDR, speed camera database, 128 GB memory card.
• High quality workmanship and very low failure rate (less than 0.2%).

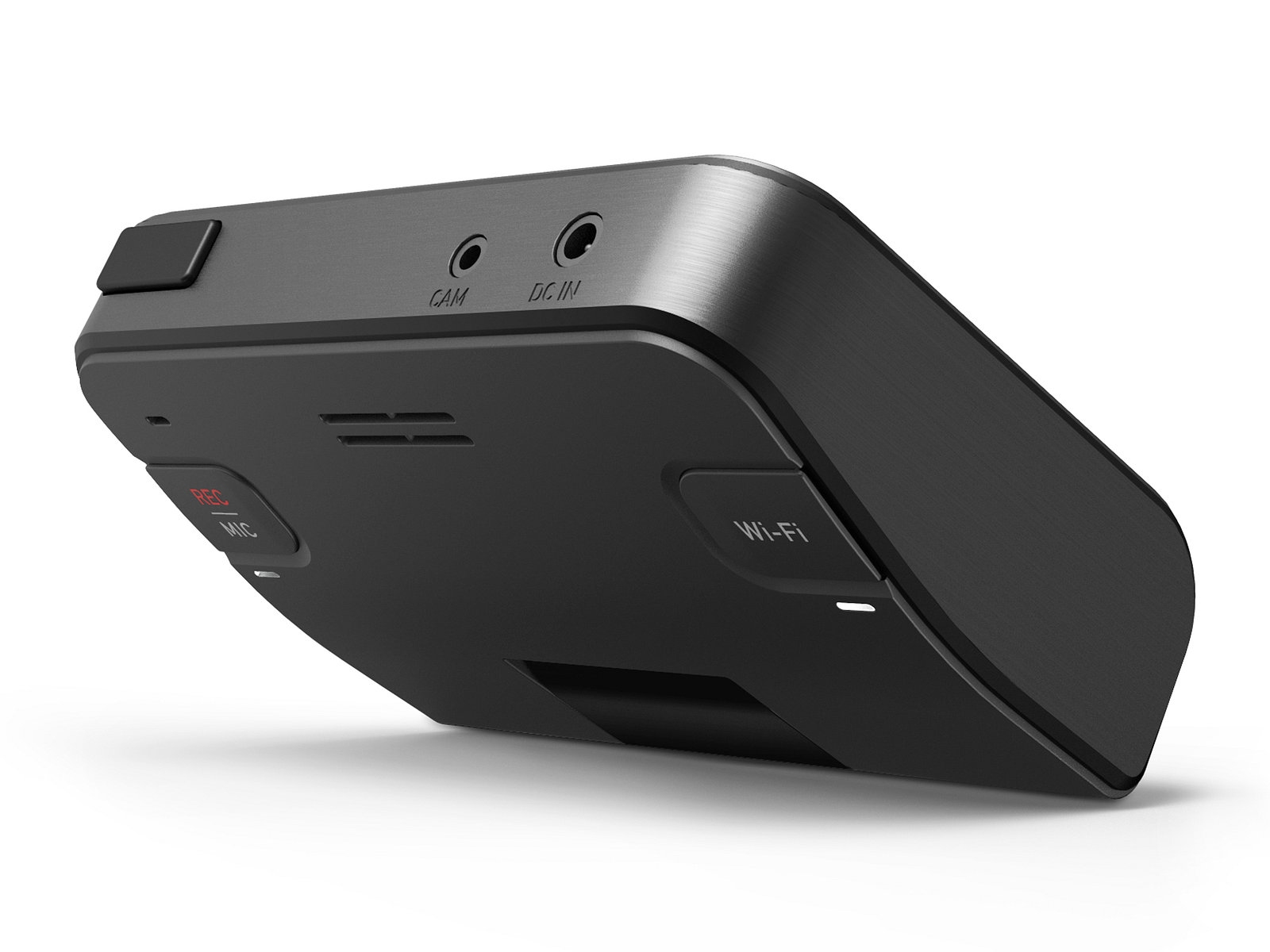

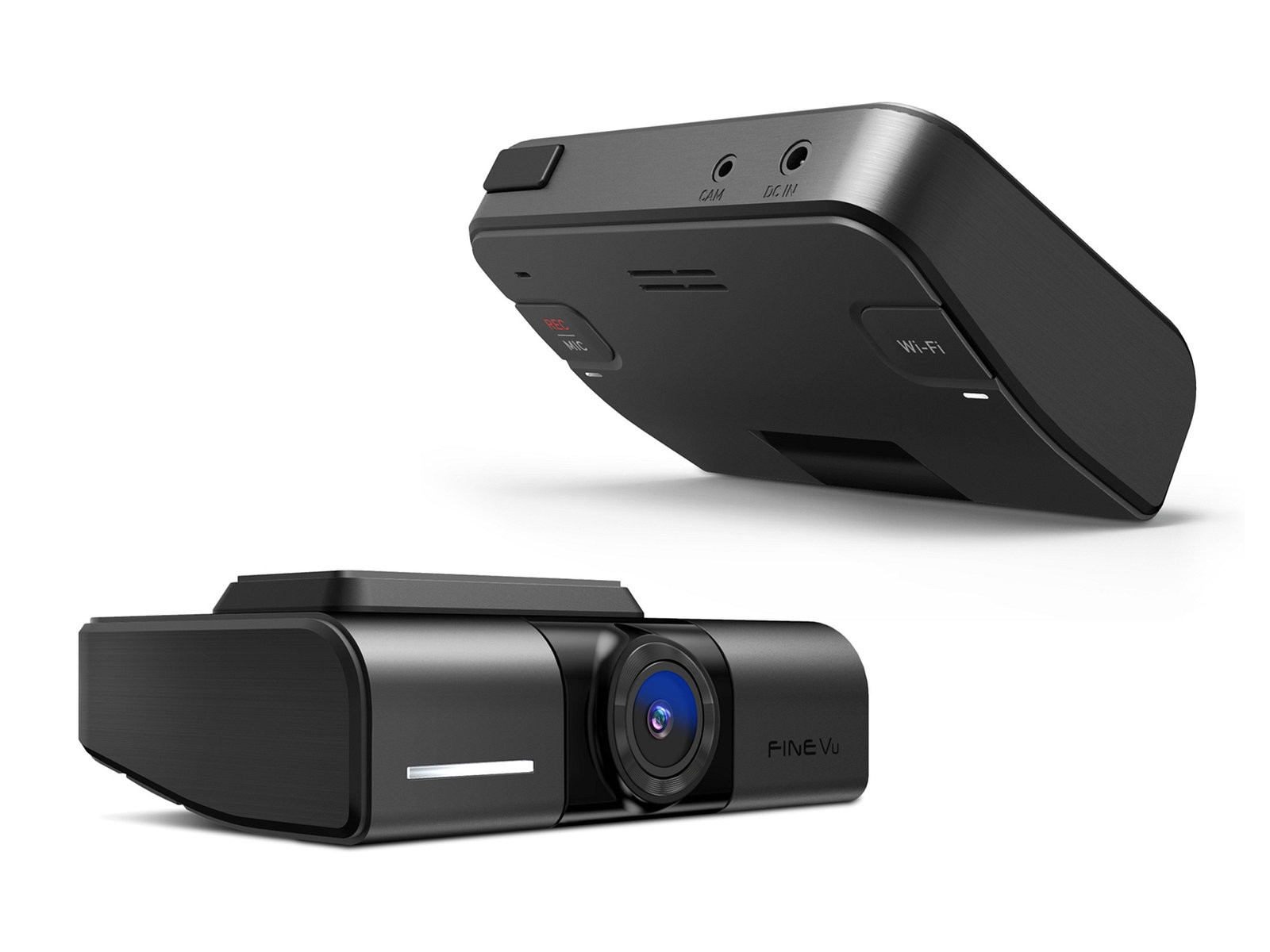

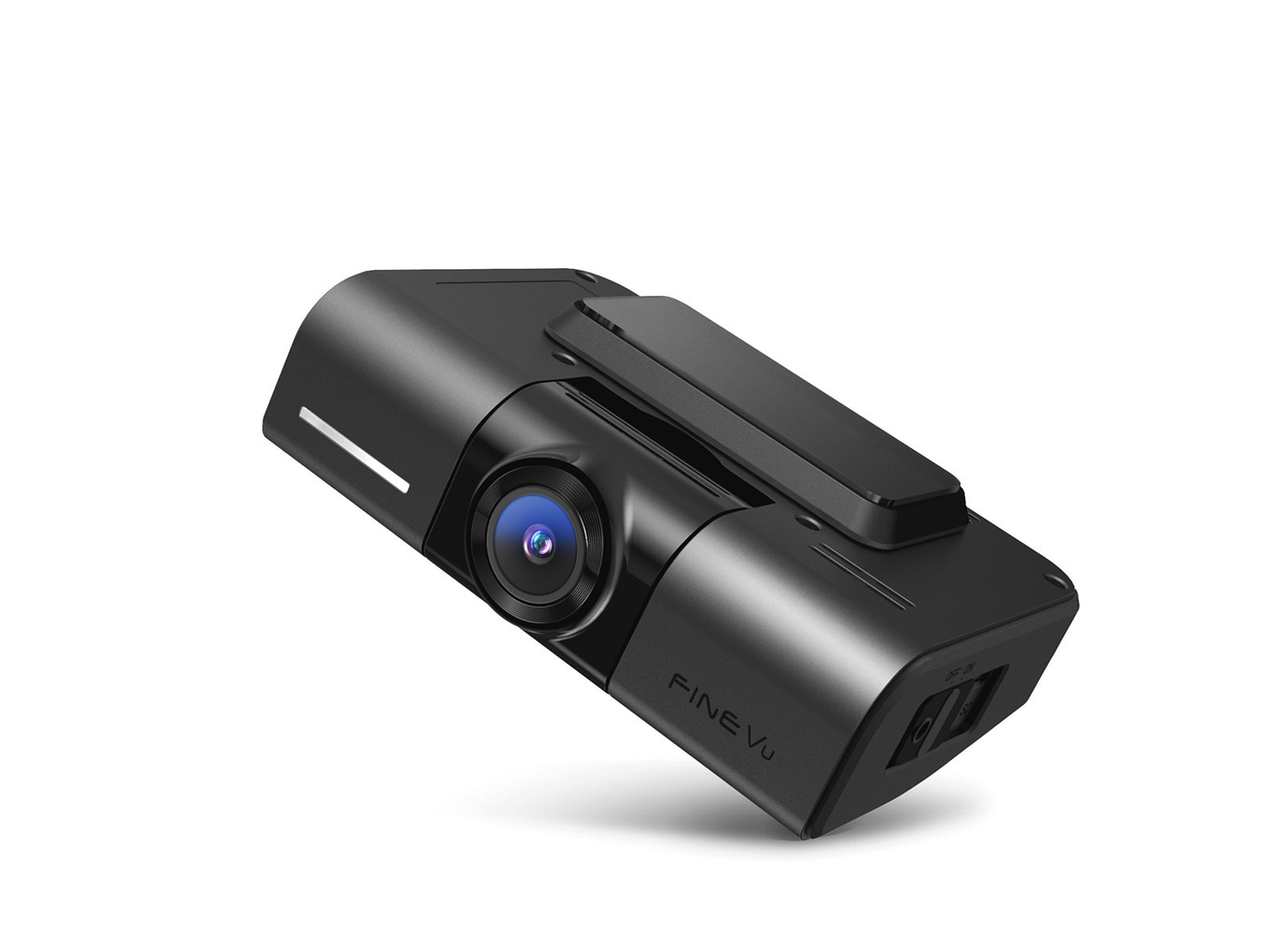

• Hardly visible from the outside, the flat housing ensures discreet mounting parallel to the windshield without a visible handle.

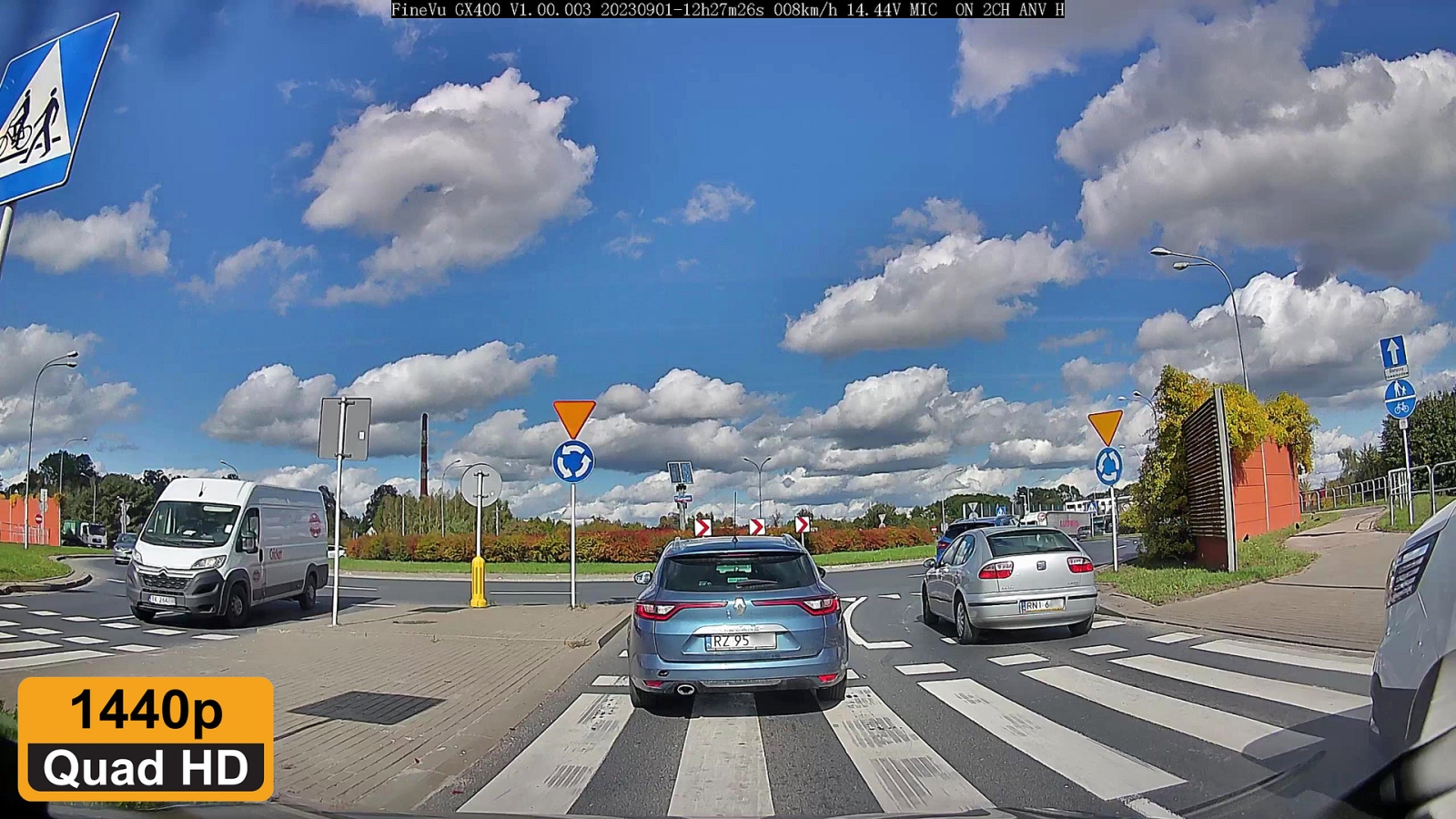

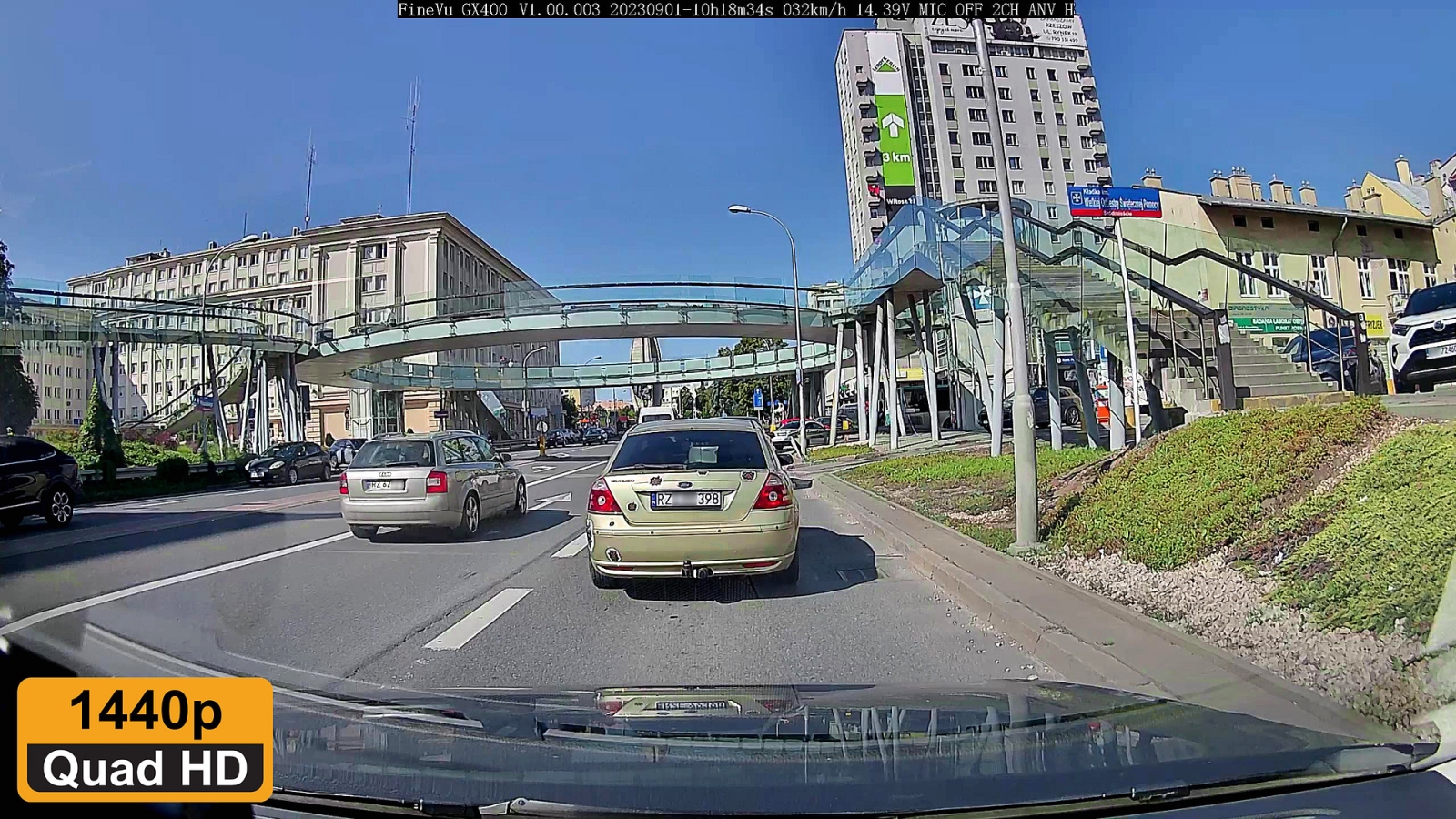

• Video resolution: 2.5K Quad HD / 2560x1440p (30 fps).
• Optical sensor: 5.14 Mpx, 1/2.8″, Sony STARVIS IMX335 CMOS.
• Camera lens: wide-angle with glass lenses, F/1.8.
• Camera lens viewing angle: 139° (diagonal).
• Prepared for easy upgrade with a Full HD rear camera (rear camera and cable sold separately).
• Processor: Allwinner V536 Dual-Core Cortex A7 1.2GHz.

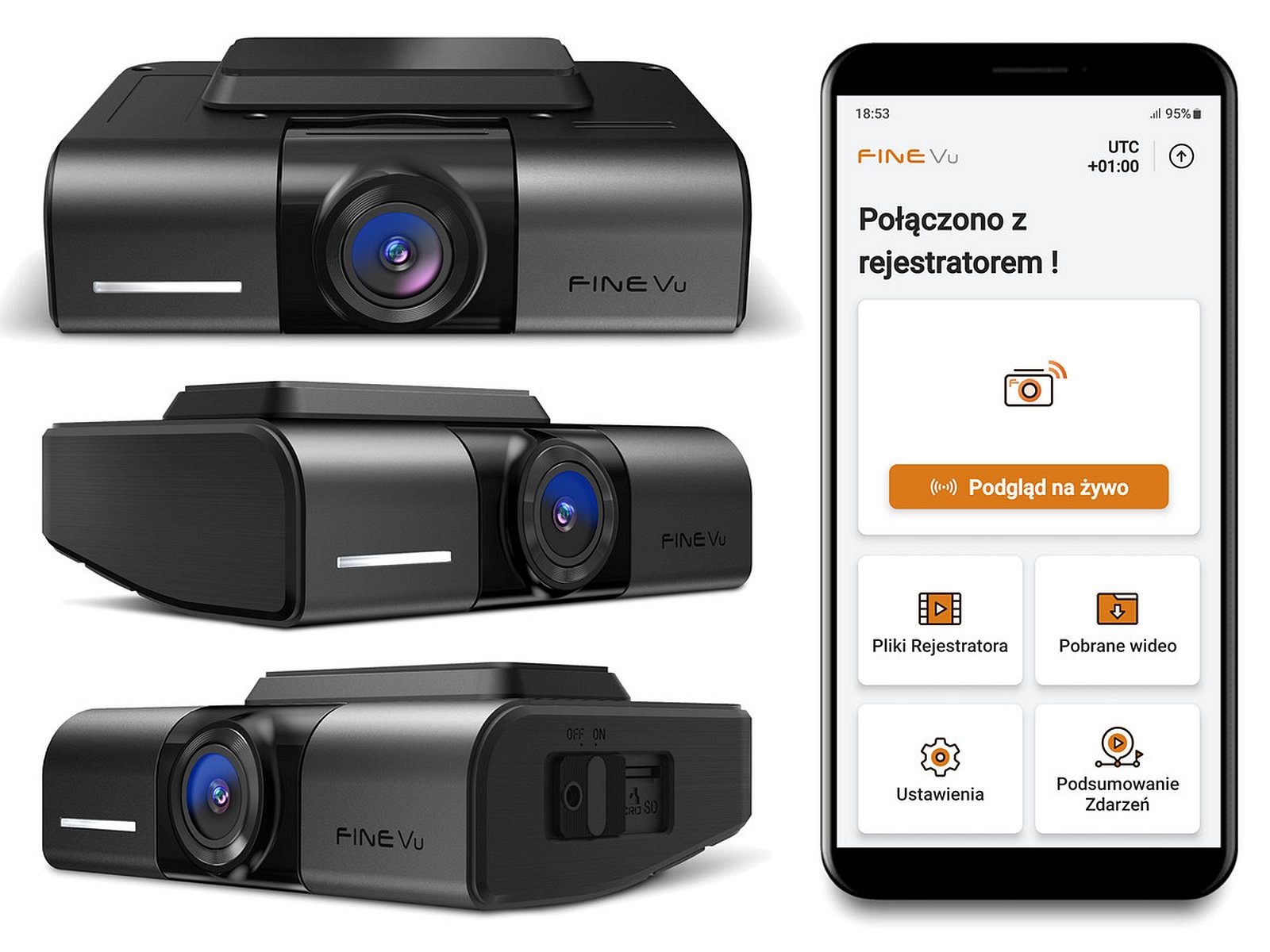

• Display: no screen, operated by iOS / Android smartphone with FineVu Wi-Fi application.

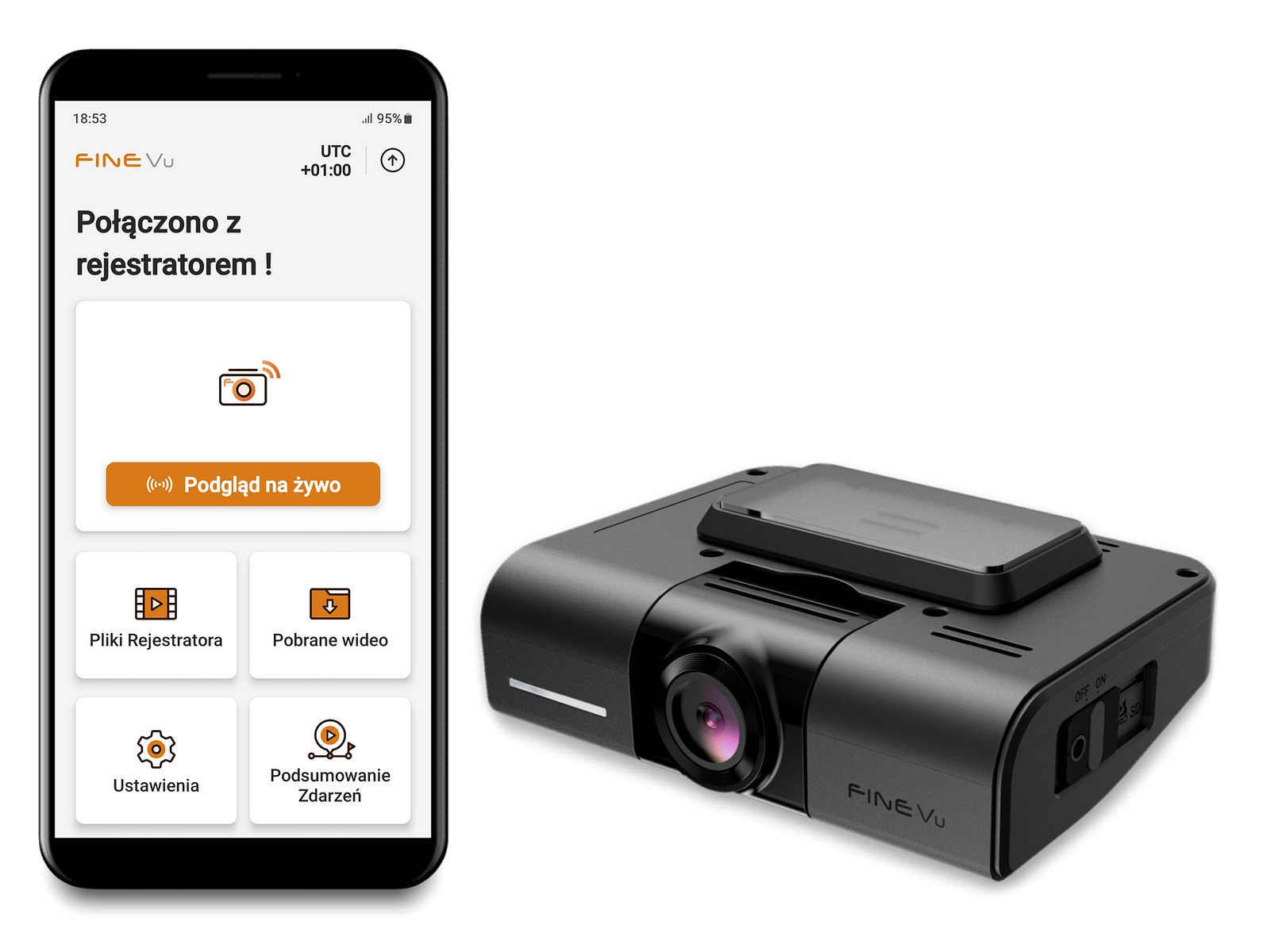

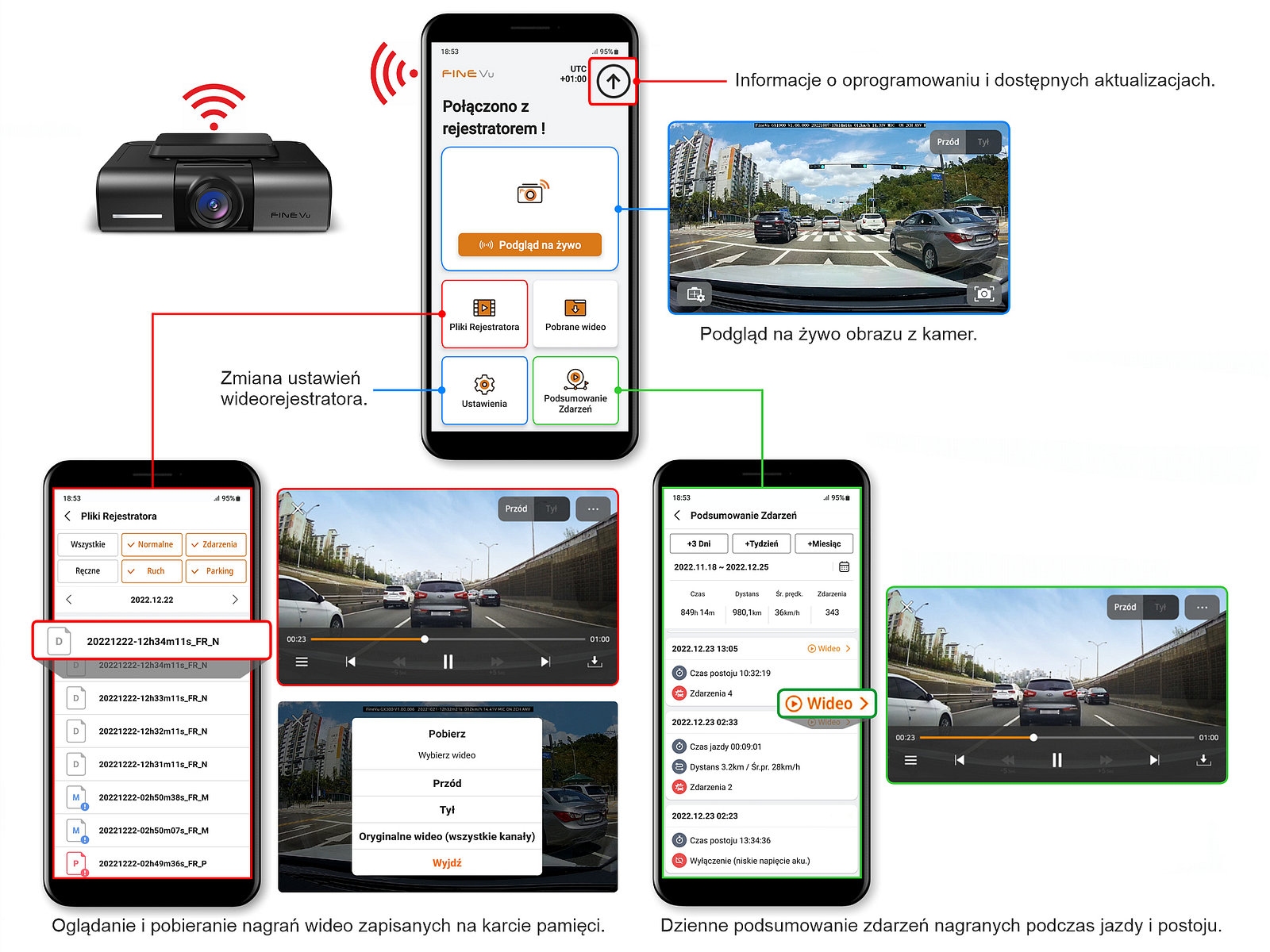

• FineVu Wi-Fi application: recorder settings, live image preview, viewing and downloading recordings, number and details of events, driving and parking time, distance traveled, average driving speed, route preview on the map, software update, very easy to use.
• Driving mode recording methods: Standard / Smart Time-lapse / Manual / 15fps.
• Parking mode recording methods: Motion / Smart Time Lapse / Low Power / 15 fps.
• Video recording format: AVI, H.264 High Profile codec.
• Selecting the recording quality (changing the bitrate), which affects the file size: Standard / High.
• Maximum bitrate: 16 Mb/s, file size approx. 116 MB, 1 minute.
• LED brightness setting: 3 levels, auto or off.
• Memory card compatibility: FineVu MicroSD cards with a capacity of 32–256 GB . Other brand cards with a capacity of up to 128 GB, class 10+ UHS-I, Endurance type (not tested long-term).
• Recommended memory cards – the manufacturer recommends using the recorder with high-quality FineVu memory cards with a capacity of 32–256 GB, which ensure long and trouble-free operation with continuous video recording in a loop. The best choice (reliability – usability – price) is the 128 GB FineVu card. Other brand memory cards have not been thoroughly or long-term tested with this device, so the manufacturer cannot guarantee that the recorder will always function properly when used with such cards without the risk of recording loss. Device malfunctions caused solely by using a memory card other than the recommended one are not grounds for a warranty claim.
• Memory card included: MicroSDXC FineVu 128 GB high durability.
• Emergency power backup: built-in supercapacitor.
• Microphone and speaker: built into the device.
• GPS module with antenna: built into the device.
• Wi-Fi module: built into the device.
• Shock and acceleration sensor (G-sensor): 3-axis accelerometer with separate sensitivity adjustment for Parking mode and Driving mode (+2G / -2G).
• Motion detection in the camera lens frame: works in Parking mode, motion detection sensitivity adjustable.
• HDR (High Dynamic Range) – improving the readability of dark and light image details (e.g. overexposed or underexposed license plates).
• Auto Day & Night Vision – automatic night mode and correction of image parameters during the day and at night.
• Free DFS Format – a recording system that does not require frequent formatting of the memory card.
• Smart Time-Lapse Recording with Variable Frame Rate (Driving: 6 fps, Parking: 2 fps, Events: 30 fps) – allows you to document up to 5 times more real-time footage than standard recording.
• Easily find videos in dedicated folders by recording type: Standard, Events, Parking, Motion, Manual.
• Protection of individual folders (lock) against overwriting files in a loop.
• ADAS Plus – advanced driver assistance systems: traffic flow assistant (FVMA), lane departure warning system (LDWS) and driver fatigue assistant.
• Mounting Angle Assistant – helps you correctly set the camera angle for vehicles of different heights and calibrate the ADAS system.
• GPS informant warning about stationary speed cameras, red light cameras, section average speed cameras, etc.
• Free update of the speed camera and road camera database every 3 months (in Europe available for: Poland, Germany, France, Estonia, Greece, Spain, the Netherlands, Romania, Russia, Great Britain).
• Possibility to disable the display of vehicle speed in videos.
• Professional parking mode with advanced recording options, shock and motion detection, and battery discharge protection. This protection shuts off the recorder after a pre-set time and when the battery voltage drops below a value set separately for 12V and 24V vehicles.
• HYBRID option – additional voltage range for the battery discharge protection system used in some hybrid cars in which the voltage in the on-board installation is above 13V after the ignition is turned off (e.g. some Hyundai and Kia hybrids).
• Low Power Consumption – energy-saving parking mode option with very low current consumption (approx. 5 mA).
• Continuous buffering of the video stream in Driving and Parking modes – event recordings (e.g. collision, accident) cover the time 10 seconds "backwards" before the event and 10 seconds after the event.
• Voice information about the number and type of events detected during the last stop.
• Warnings and voice notifications in Polish.
• REC button to manually save the current traffic situation in another folder.
• Flat holder glued to the glass with 3M VHB tape for mounting/sliding the recorder.

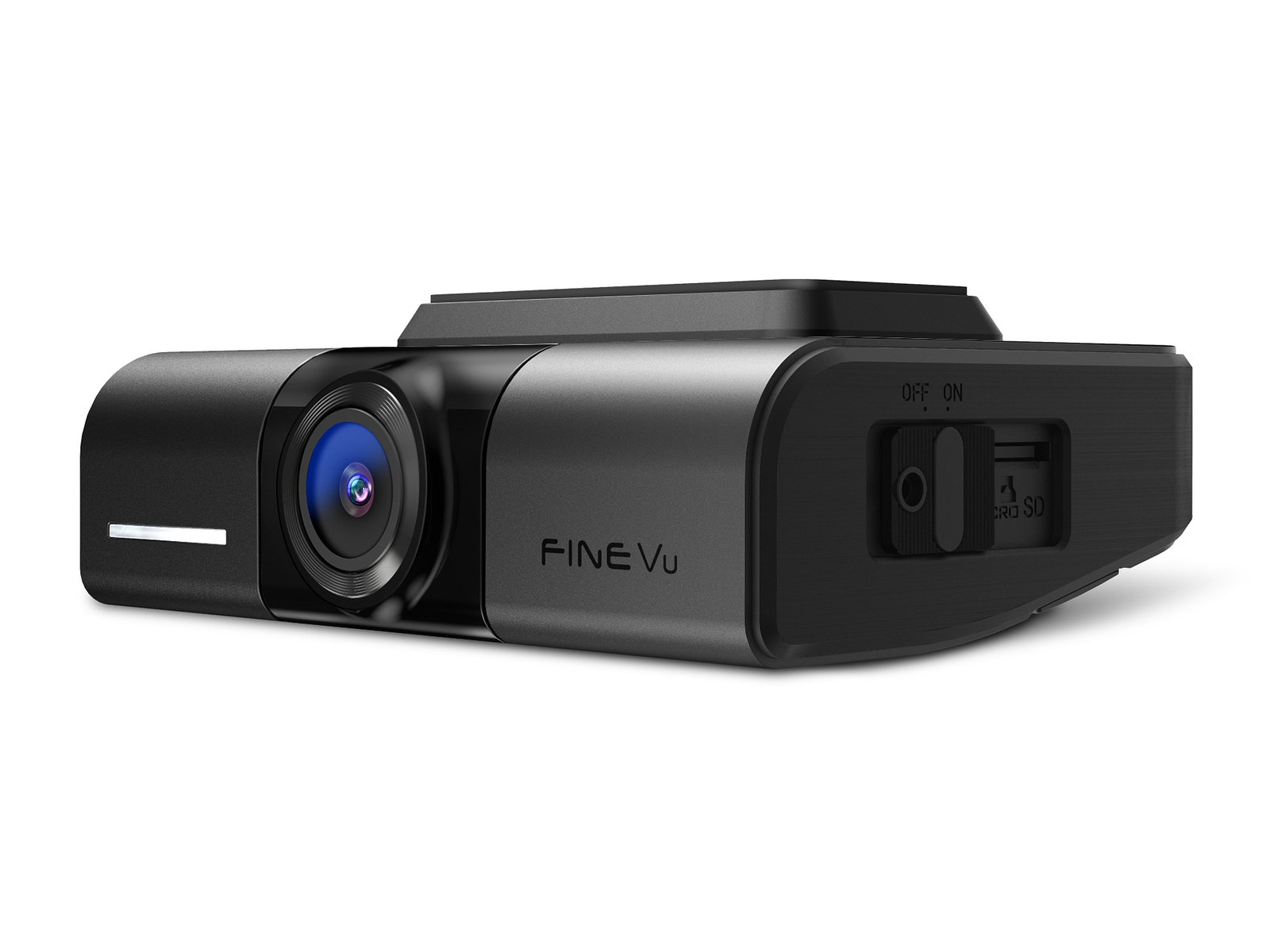

• Mechanical power switch of the recorder with memory card lock – a convenient solution that can be useful when you temporarily do not want to use the automatically activated parking mode (e.g. home garage) without having to launch the settings application.
• Intelligent (AI) overheating protection protects the recorder. When temperatures rise too high while parking on hot days, it doesn't shut down the device (like other recorders) but automatically switches to energy-saving, low-power parking mode. This ensures the recorder remains alert and ready to document events while parked.
• 3-wire power cable (BAT, ACC, GND) for permanent connection to the vehicle's installation (e.g. in the fuse box), which automatically switches the recorder's operating modes Driving / Parking using the ignition switch and ensures continuous power to the camera while driving and parking.
• A 2-wire power cable with a plug for the car cigarette lighter socket, which allows for a temporary or portable power installation for the video recorder without the possibility of using parking mode.
• Operating temperature: -20°C to +70°C.
• Storage temperature: -30°C to +80°C.
• Supply voltage (DC): 12 – 24 V.
• Power consumption in Parking / Motion mode (1 cam, shock, motion): < 2.4 W (190mA/12.5V).
• Power consumption in Parking / Low Power mode (1 cam, shock): < 0.06 W (5mA/12.5V).
• Dimensions and weight of the recorder with holder: 96 x 70 x 26 mm / 114 g.
• Recorder housing color: black, brushed sides.
• The product was developed and manufactured in South Korea by FineDigital / FineVu.
• Language of voice prompts and smartphone application: Polish , English, German, French, Spanish, Russian, Japanese, Korean, Vietnamese.
• “FineVu Wi-Fi” – an application for operating the recorder with a smartphone – can be downloaded free of charge from the Google Play Store (Android) and the App Store (iOS).
• “FineVu Player” – a video player for viewing and downloading recordings from the recorder’s memory card on a computer – available for download from the FineVu Polska website.
• The kit includes a quick, multilingual user manual (provided by the manufacturer). The full manual in Polish can be downloaded from the FineVu Polska website.
• Standard warranty (device and memory card): 24 months for individual customers, companies and institutions.

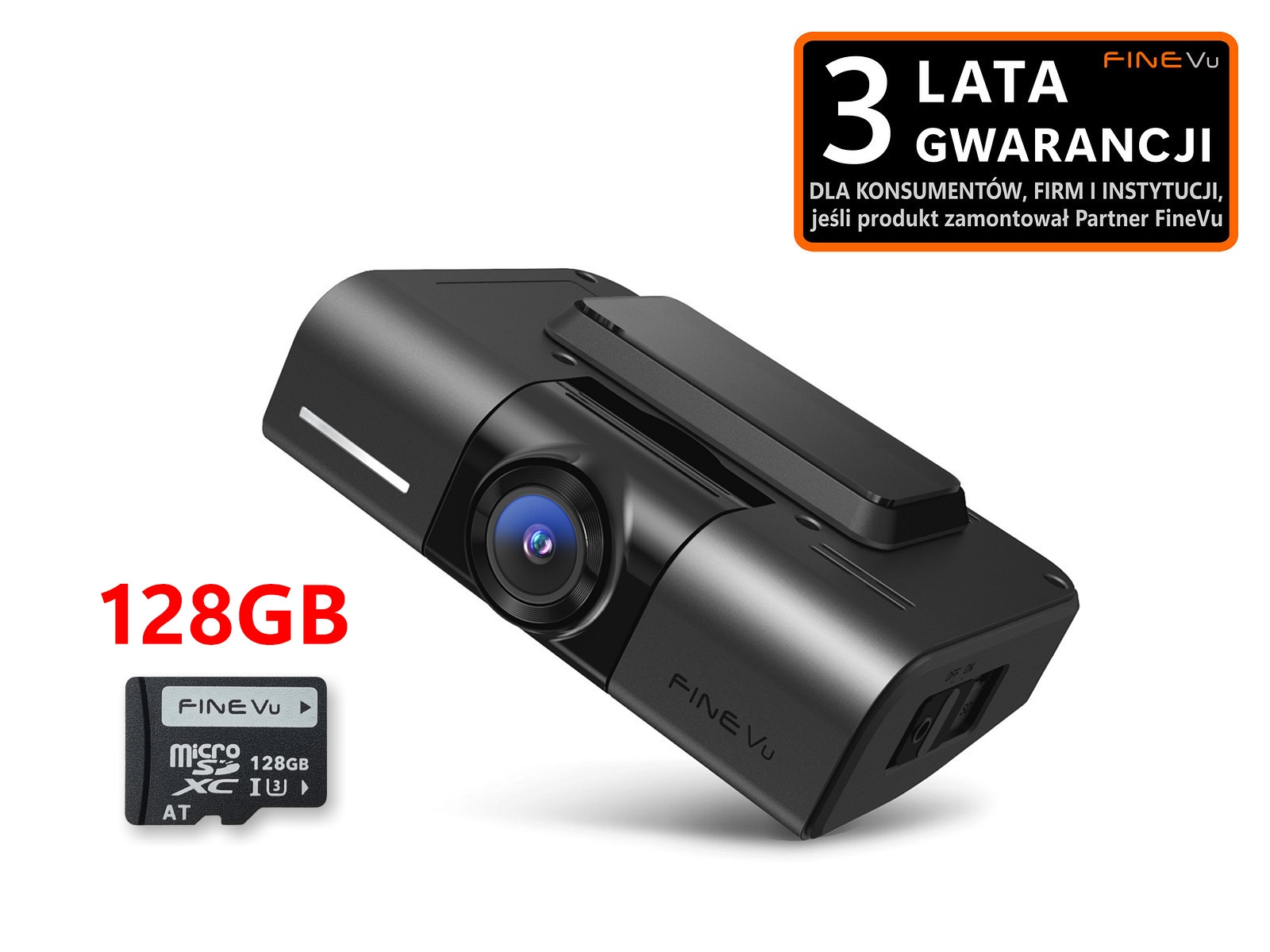

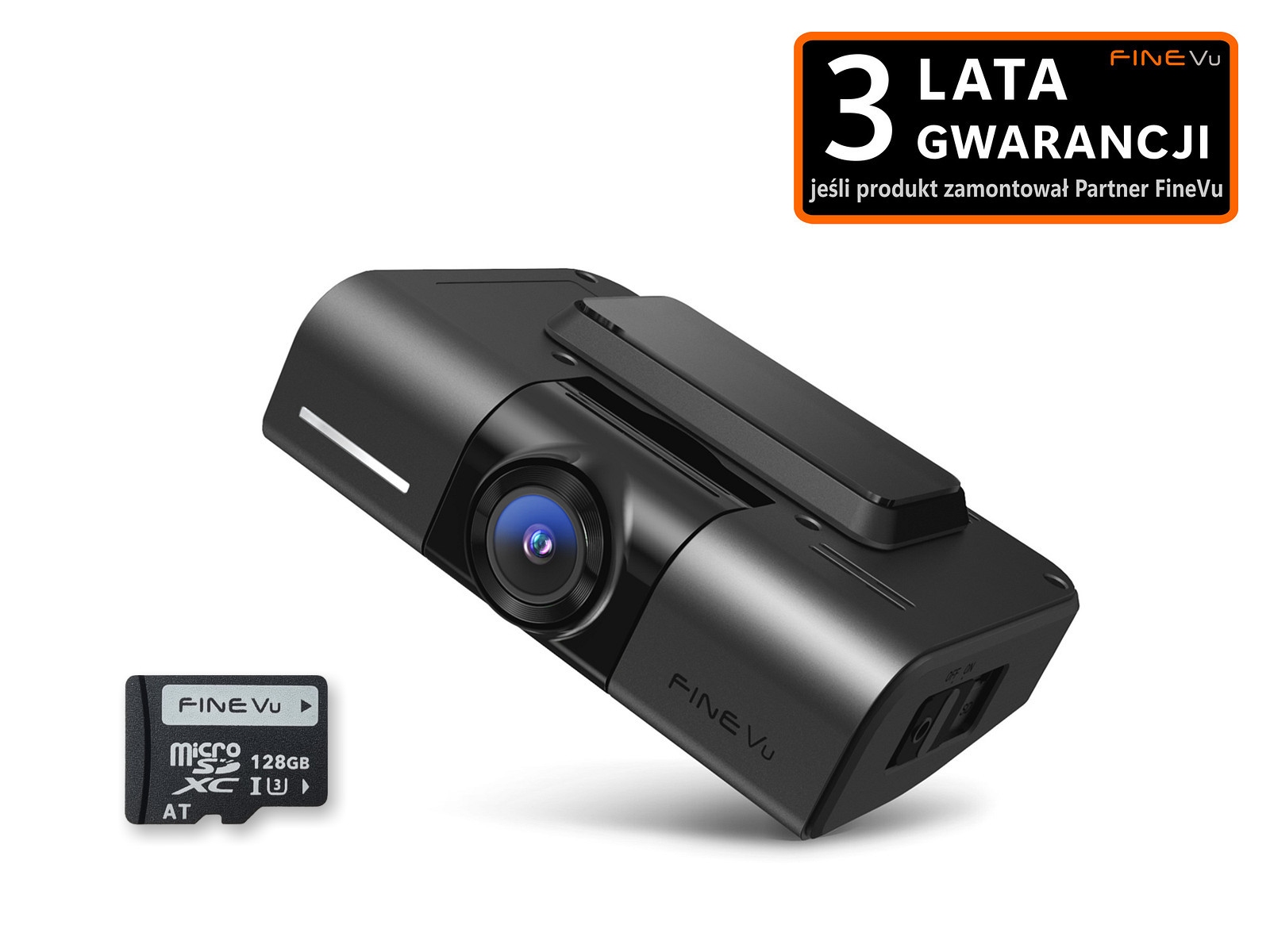

• Extended warranty (device): 36 months for customers as above, if the recorder purchased from any Polish seller (including online) is installed in the user's vehicle by the service center of any selected FineVu Partner .

Set contents:

• FineVu GX400 1CH video recorder with GPS and Wi-Fi (front camera).
• A holder for securing the recorder to the windshield with 3M tape (also for vertical).
• 3-wire power cable for permanent connection of the recorder to the vehicle installation – length 3 m.
• 2-wire power cable with cigarette lighter plug – 3 m long.
• Spare 3M adhesive tape for holder – 1 pc.
• Adhesive cable holders – 4 pcs.
• 128 GB FineVu MicroSDXC memory card + SD/MicroSD adapter.
• Quick start guide (the full Polish version can be downloaded from the FineVu Polska website).
• Warranty card from the Polish importer.

The kit comes complete with a 128GB FineVu . There's no need to purchase any additional cables, external modules, or power adapters for parking mode. The FineVu GX400 1CH includes all of this as standard equipment at no extra cost.

A detailed description is available on the website:  https://finevu.pl/kamery-samochodowe/finevu-gx400/
