Video interface for rear view camera, front camera Land Rover, Jaguar 2016 -> Incontrol Touch Pro 10 inch

Description

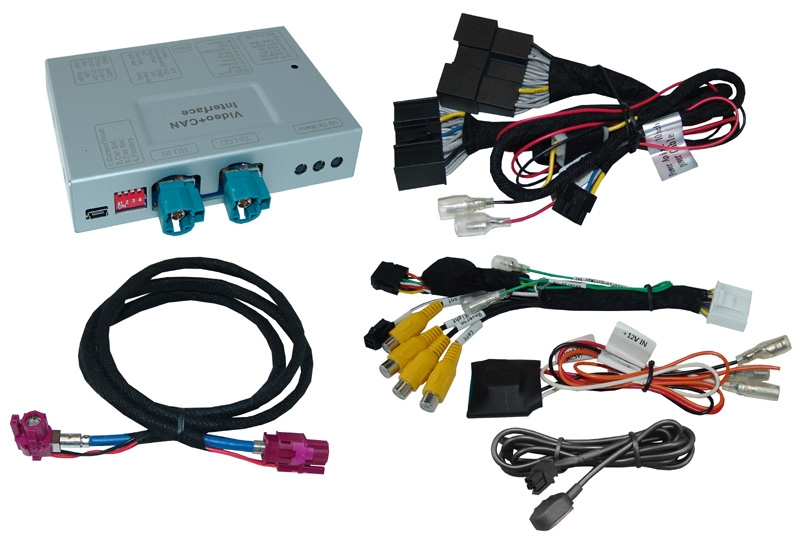

The video interface allows you to connect a rear view camera, an automatic front camera and two other video sources (e.g. USB player, DVB-T2 tuner, etc.) to the vehicle manufacturer's factory infotainment system.

Product features

• Video interface for factory infotainment systems
• 1 CVBS rear view camera video input
• 1 CVBS front camera video input
• 2 CVBS video inputs for upgrade devices (e.g. USB player, DVB-T2 tuner, ...)
• Automatic switching to the rear view camera input when reverse gear is engaged
• Automatic front camera switching when reverse gear is engaged for 10 seconds
• Distance lines for the rear view camera can be activated (not available for all vehicles)
• Possibility of activating PDC (not available for all vehicles)
• Activate video while driving (ONLY for network-connected video)
• NTSC compatible video inputs

BRAND AND MODEL:

Land Rover

• Discovery 5 model year from 2017
• Discovery Sport model year from 2017
• Range Rover model year 2017
• Range Rover Sport model year 2017
• Range Rover Evoque model year 2017-2019

Navigation:

Incontrol Touch Pro – 10.2 inch 24:9 monitor
is NOT compatible with Dual View Monitor!

---

Jaguar

• F-Pace from model year 2016
• F-Type from model year 2016
• XE from model year 2016
• XF from model year 2016
• XJ from model year 2016

Navigation:

Incontrol Touch Pro – 10.2 inch 24:9 monitor
is NOT compatible with Dual View Monitor!

LIMITATIONS :

Video only

• The interface does NOT transmit any audio signals. The existing factory AUX audio input or FM modulator can be used to power the audio signals. If two AV sources are connected, additional electronics are required for audio switching.

Factory rear camera

• Automatic shifting to RFK only as long as reverse gear is engaged. Additional electronics are required to delay downshifting.

Front camera available on the aftermarket

• Switching to the front camera occurs automatically after disengaging reverse gear for 10 seconds. You can also manually switch to the front camera using the button.

PDC and distance lines

• PDC and distance line display does not work on all vehicles.

Video input signal

• Only NTSC video sources compatible.

CONNECTORS:

• Video insertion: 4+2pin HSD+2
• Power and CAN bus: Plug & Play (vehicle dependent)
• Video Input (2x): RCA female connector
• Front Camera Input: RCA Female

TECHNICAL DATA:

• Operating voltage 12V DC (7 ~ 25V)
• Standby current 11 mA
• Current consumption 230 mA
• Video input 0.7 ~ 1V
• NTSC Video Input Formats
• Operating temperature -40°C to +85°C
• Video box dimensions 117 x 26 x 103 mm (W x H x D)
