Neoline Fuse Cord X77 – Power Kit with ACC for X77

Description

Neoline Fuse Cord X77:
A genuine Neoline X7 series power supply kit (cable, power supply, recorder mount) that allows you to create a hidden installation in your vehicle that provides the dashcam with a continuous +12/24V power supply, e.g., from the fuse box, as well as ignition-switched voltage (ACC or ignition). This allows the dashcam to automatically switch to parking mode when the ignition is turned off, and to re-engage normal recording mode when the vehicle's engine is started (after turning on the ignition/ACC).

The "Fuse Cord X77" kit is designed for Neoline G-Tech X77 recorders. For proper operation, the magnetic recorder mounting bracket included in this kit must be used. The video recorder must have the latest system software installed, which can be downloaded from the manufacturer's website or from the Polish website https://neoline-polska.pl/aktualacje/.


Activating the automatic parking mode on/off option in Neoline G-Tech X77:

Update your dashcam's system software to the latest available version.
Install the magnetic mount included in the "Fuse Cord X77" kit and connect it to your vehicle's wiring using a 3-wire cable.
In the dashcam's menu, set the "Parking Mode" function to "On" and configure additional settings for this mode according to the user manual.
After turning the car's ignition off/on (ACC), the dashcam will automatically turn on/off parking mode.
If you don't want to use parking mode when the ignition is off, briefly press the dashcam's power button (ON/OFF).


BASIC TECHNICAL DATA:

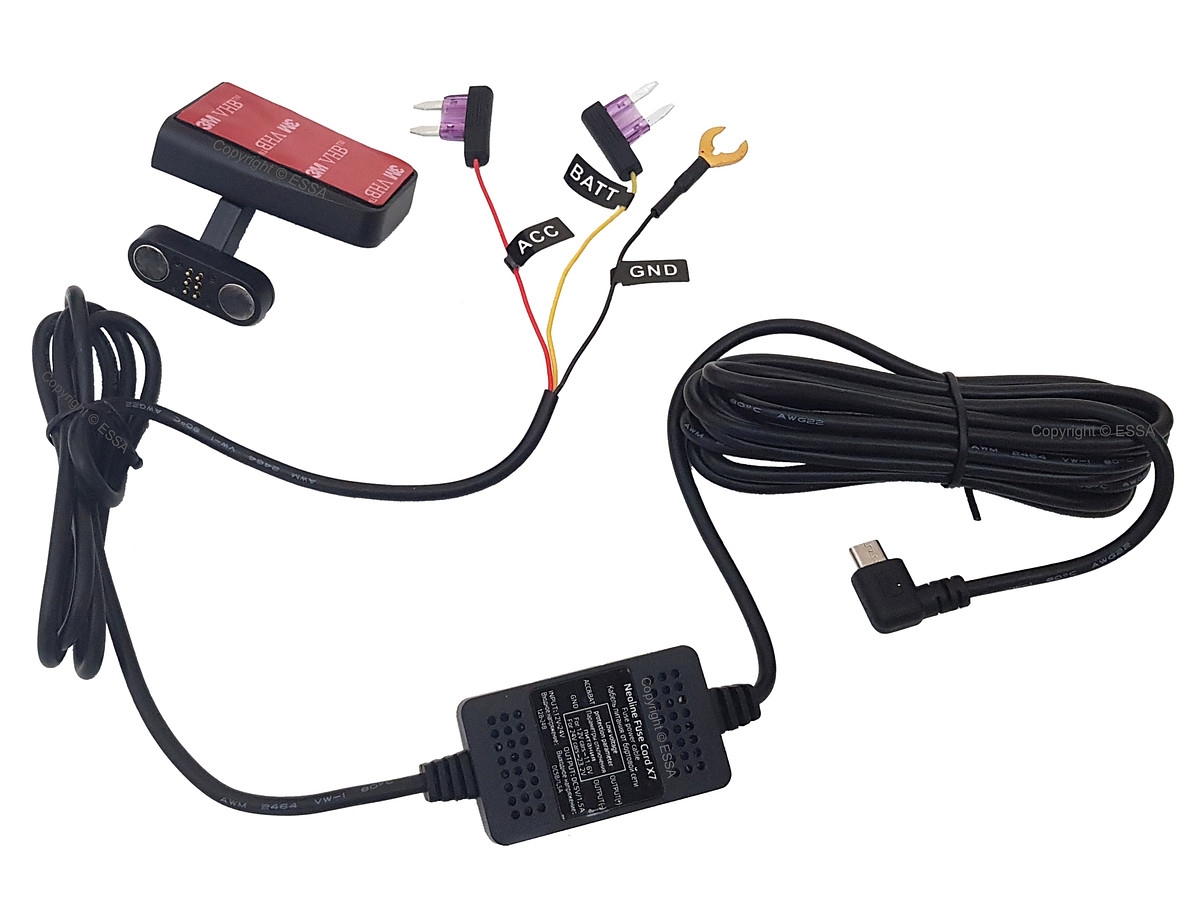

3-wire cable with power supply and micro-USB plug for continuous powering of Neoline G-Tech X77 video recorders:
BATT – yellow wire: +12/24V voltage that continues when the car's ignition is turned off
ACC – red wire: +12/24V voltage (ACC or ignition), which disappears when the ignition is turned off
GND – black wire: power ground (-12V/24V), e.g., metal car body parts

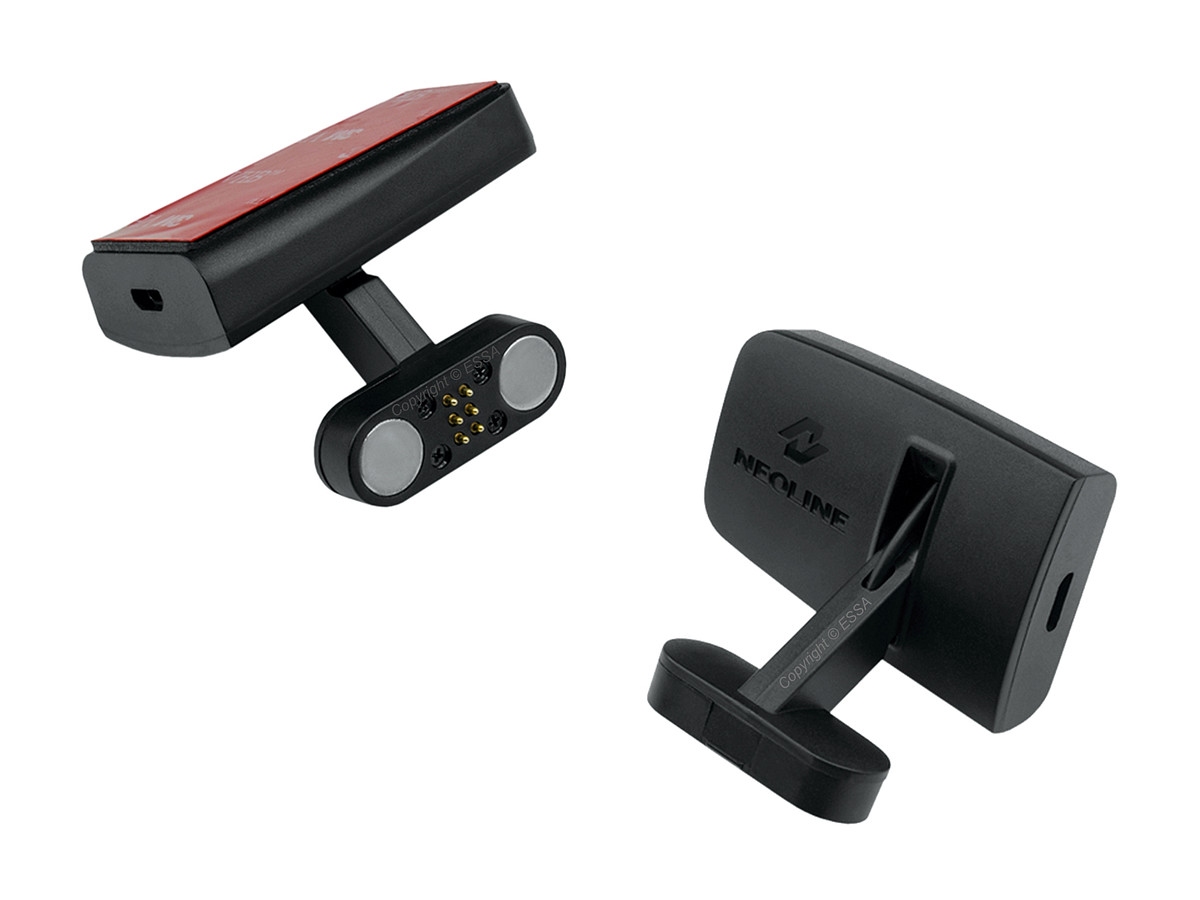

Magnetic holder with GPS for mounting the recorder, which should be installed in place of the one supplied with the recorder.
Automatically enables and disables parking mode when the car's ignition is turned off/on.
Enables a neatly concealed power supply connected to the socket in the recorder mounting bracket.
It takes up no space in the car's cigarette lighter socket, allowing you to connect other devices.
The existing holder can be installed in a second car, allowing you to use the recorder interchangeably in both vehicles.

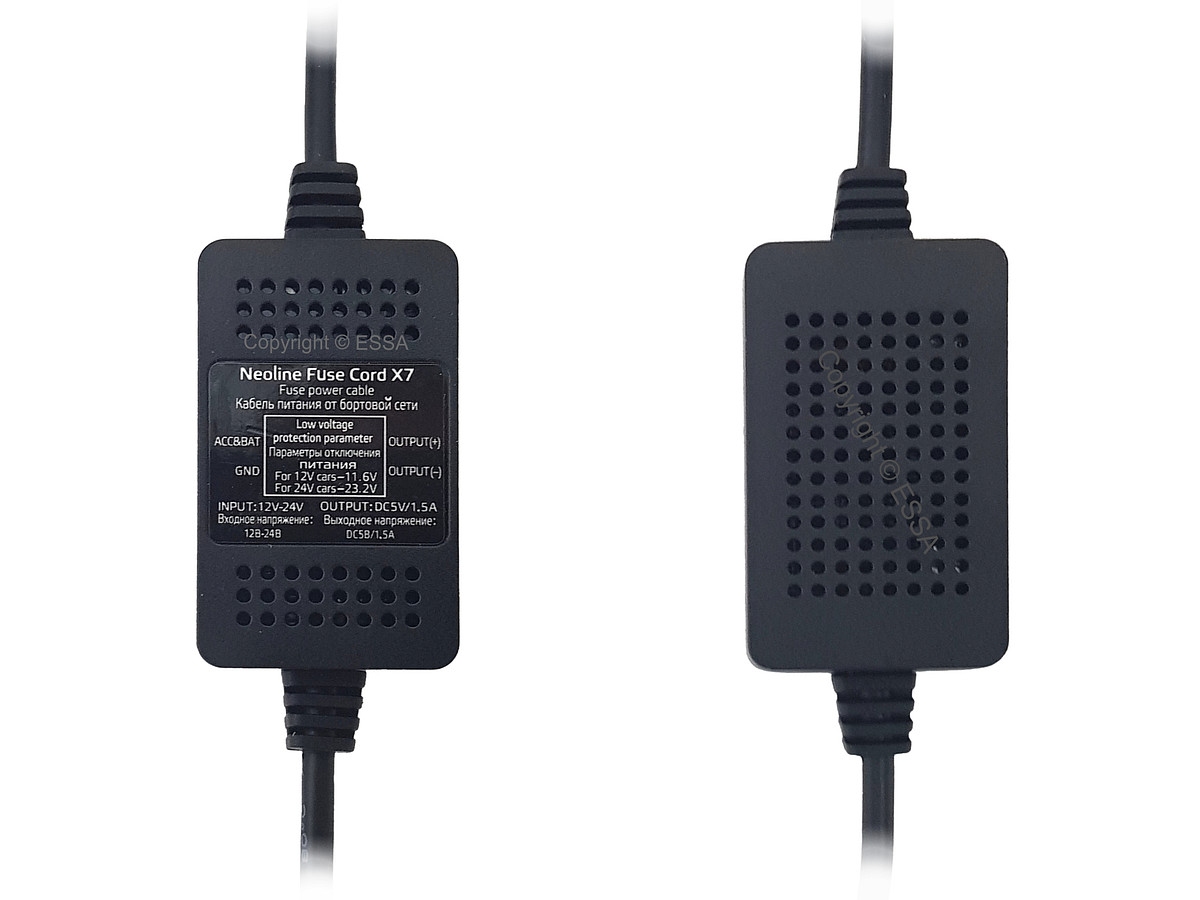

Power supply input voltage: 12 – 24 V.
Power supply output voltage: 5 V / 1.5 A
Deep discharge battery protection system that disconnects the recorder's power supply when the voltage in the system drops below:
– 11.6 V for vehicles with a 12 V system
– 23.2 V for vehicles with a 24 V system
Fuses mounted on the wires.
Cable length: 3 m.
Cable diameter: 3.5 mm.
Warranty: 24 months.


NOTE!
Correct operation of the power supply kit with the Neoline G-Tech X77 video recorder is only possible when using the magnetic mount included in the “Fuse Cord X77” kit. The mount supplied with the recorder must be replaced with the mount from the “Fuse Cord X77” kit.
