Opel 900 IntelliLink Interface

Description

The interface allows you to feed two video sources from the rear view camera and any other source (e.g. USB, DVB-T2 tuner, ...) into the vehicle manufacturer's infotainment system.

Product features

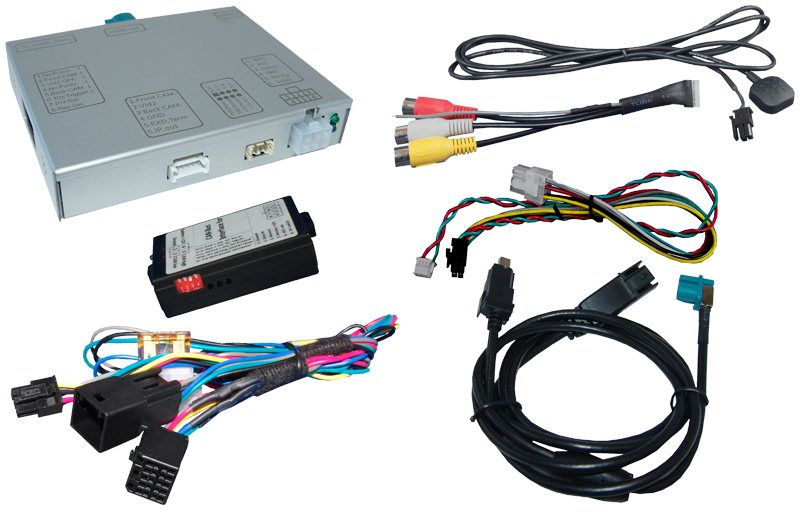

• Video interface for factory infotainment systems
• 1 video input for FBAS reversing camera
• 2 FBAS video inputs for upgraded devices (e.g. USB player, DVB-T2 tuner, ...)
• Automatic switching to the rear reversing camera when the reverse gear is engaged,
• Lines for the rear view camera can be activated (not available for all vehicles)
• Activate image while driving (ONLY when feeding video)
• PAL and NTSC compatible video inputs

Make and model:

• Chevrolet Camaro 2016 ->
• Chevrolet Corvette C7 2014 – 2018

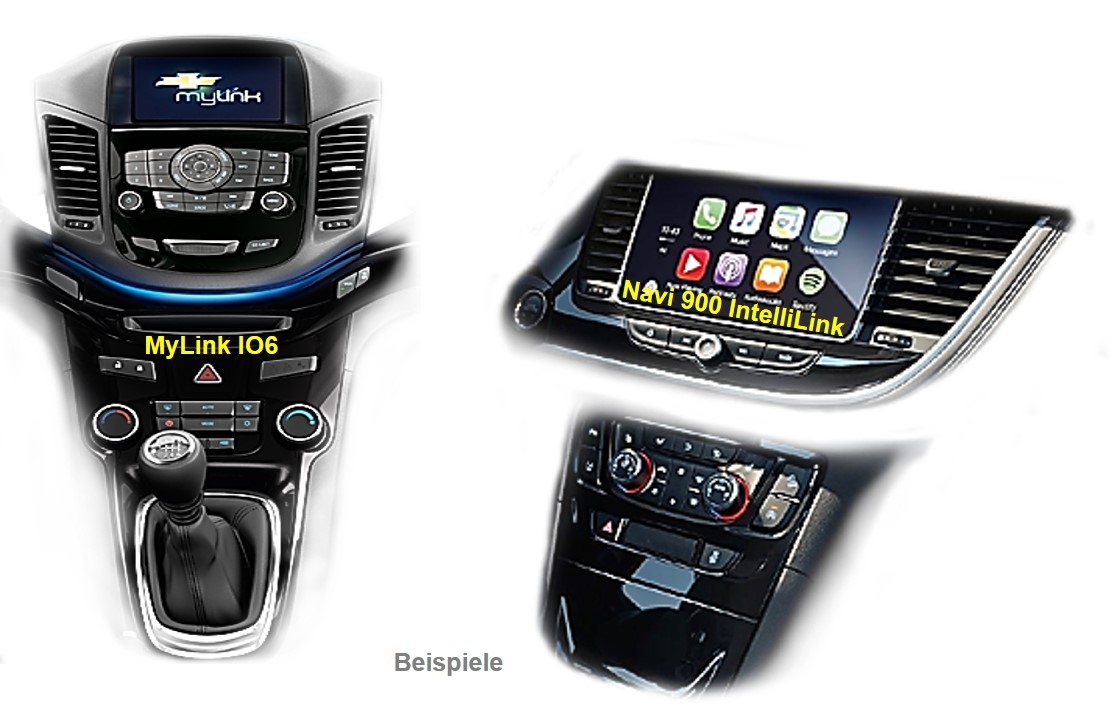

• Navigation 8-inch MyLink IO6 monitor with separate radio box

• Opel Astra K   (Sports Tourer and 5-door) 2016 – 2019
• Opel Insignia A 2014 – 2016
• Opel Insignia B 2017 – 06/2018
• Opel Mokka X 2016 – 2020

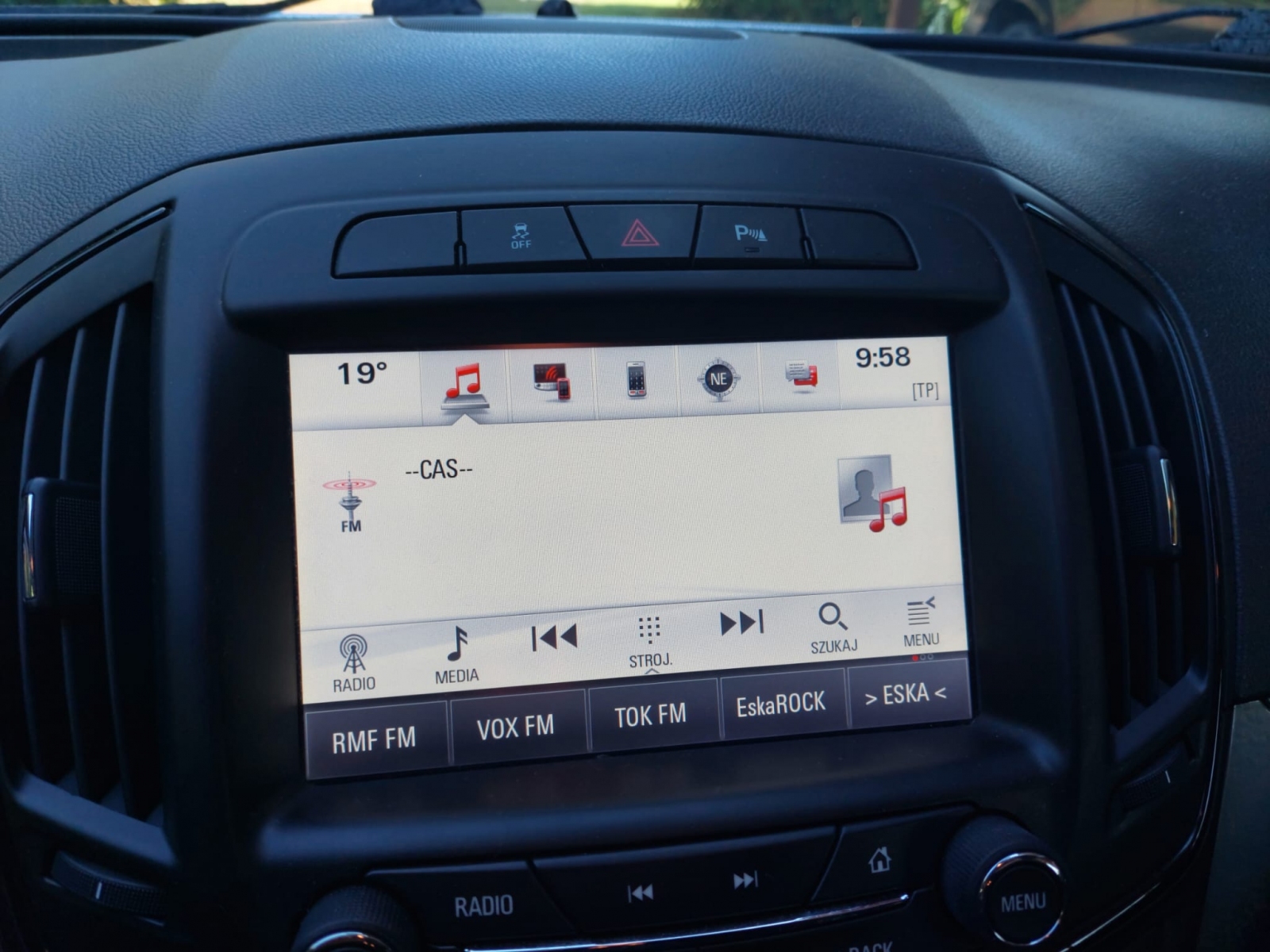

• Navigation 8-inch Navi 900 IntelliLink touchscreen (Gen. 1 and 2)

Limitations

• Video only. AUX audio input or FM modulator can be used to power the audio signals . If 2 AV sources are connected, additional electronics are required for audio switching.
• Factory rearview camera. Automatically switches to RFK only when reverse gear is engaged. Additional electronics are required to delay downshifts.
• Turning lines. If the CAN box does not support the vehicle, the distance lines cannot be used.

Technical specifications

• Operating voltage 12V DC (7~25V)
• Quiescent current 60mA
• Power consumption 340mA
• Video input 0.7 ~ 1V
• Video input formats PAL / NTSC
• Operating temperature -40°C to +85°C
• Video box dimensions 113 x 22 x 104 mm (W x H x D)
• CAN box dimensions 73x23x42mm (width x height x depth)

Legal Notice:
The driver must not be distracted, directly or indirectly, by moving images while driving. This is prohibited by law in most countries/states. Apart from parking mode, this product is only intended to display menus in the standing position (e.g., MP3 menus from DVD players) or rearview camera images while driving.
