Reversing camera dedicated to the brake light Ford Transit 2006-2014

Description

Reversing camera dedicated to the brake light Ford Transit 2006-2014 – the hidden guardian of our car

Installing universal rearview cameras can be off-putting due to the lack of concealment options to prevent the camera from detracting from the car's appearance. Therefore, our store offers a rearview camera specifically designed for the 2006-2014 Ford Transit brake lights, which can be installed almost invisibly to passersby. However, this does not affect the high-quality image, ensuring there are no obstacles behind the car.

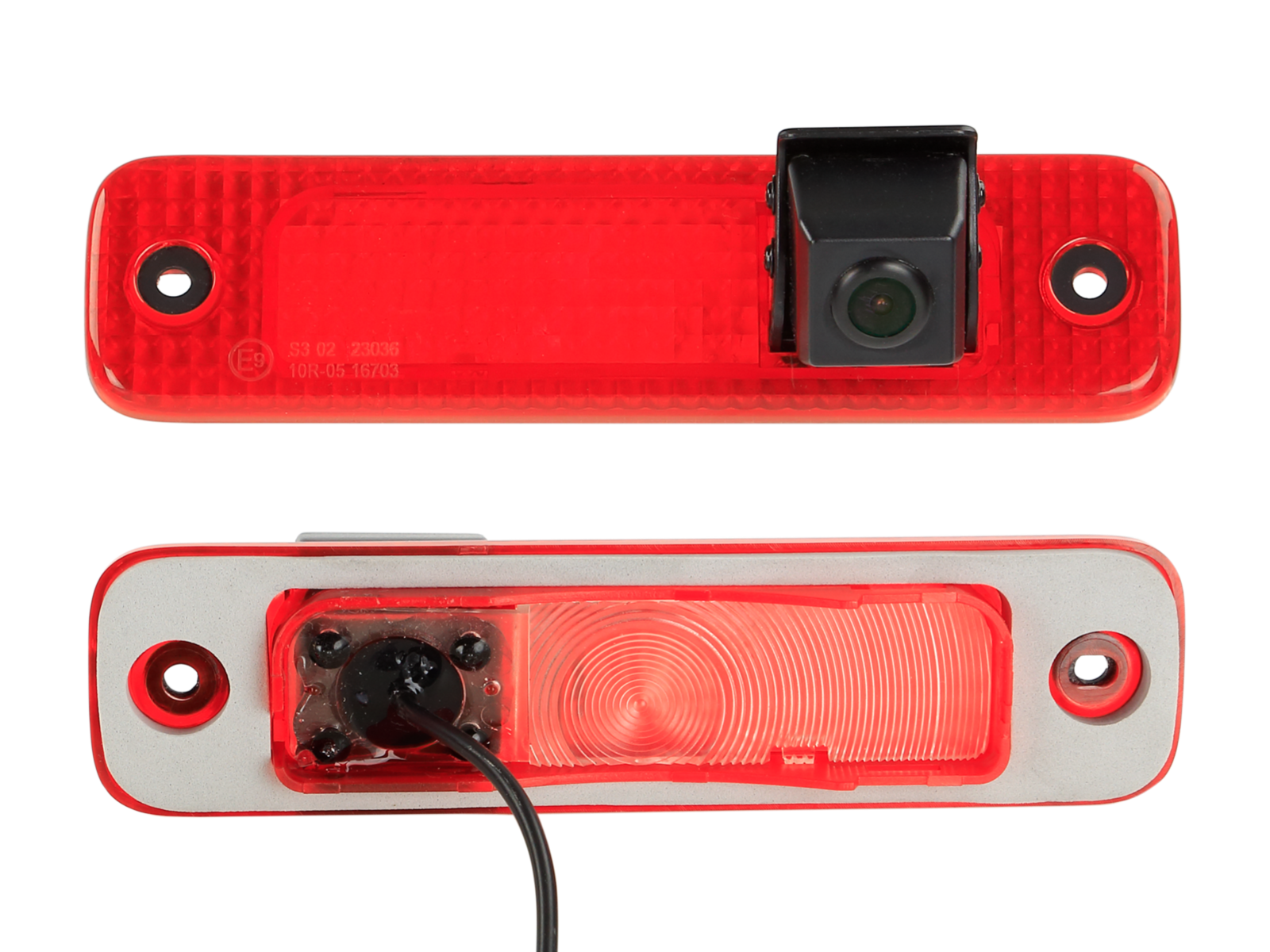

Ford Transit 2006–2014  rearview camera mounted to the factory brake light. Additional features include guide lines and an adjustable angle.
Make and model:

• Ford Transit New Line (FDF6) 07/2006 – 02/2008
• Ford Transit Kombi (FDE6) 07/2006 – 03/2014
• Ford Transit Tourneo (FSE6) 07/2006 – 03/2014
• Ford Transit Euroline (FZE6) 07/2006 – 03/2014

Ford Transit Nugget (FBE6) 07/2006 – 03/2014


Notes: All ACV cameras are designed for continuous +12V operation
Connection:
Red +12V switchable fuse stable under load
Black ground body directly

Product characteristics

•  Construction: Plastic
•  Color: Black - Red
•  Extras: parking lines activated by jumpers, viewing angle adjustment
•  Sensor type: 1/3 CMOS
•  Image system: NTSC color
•  Number of pixels: 976 x 592
•  Lens: 2.1 mm
•  Min.Lux: 0.1
•  Resolution: 600 TV lines
•  Lens viewing angle: 170 °
•  Viewing angle: horizontal 115° vertical 75°
• Dust and water protection: IP68
• 4-pin 5.2 mm mini plug connection
• Supply voltage: 12V + 10%
• Power consumption: 150mA with night vision activated
• Operating temperature: -20°C – 70°C
• Dimensions
• External: 157.5mm x 40mm
• Mounting dimensions: 105.5 mm
• Hole spacing: 131 mm
• Hole diameter: Ø 5.3 mm


Wires

• 4-pin mini plug(f) 10mm and plug(m) 5.2mm
• 20 cm cable harness with fuse and RCA(m) video connector
• 10-meter extension cord. 3-meter power cord

Optional accessories

• 771000-6305 5 m extension cord
• 771000-6310 10 m extension cord
• 771000-6315 15 m extension cord

Reversing camera dedicated to the brake light Ford Transit (V363) 2014 – 2018

A reversing camera is a must-have accessory for any car, regardless of your driving skills or vehicle brand. You'll find these products in our store. Choose the reversing camera designed for the brake lights of your Ford Transit (V363) 2014–2018.

For mounting in the brake light

This reversing camera model can be easily mounted in your vehicle's brake light. Besides displaying just the image while parking or reversing, this device offers many additional advantages. It can adjust the viewing angle by 20 degrees. It also offers night vision, which is useful for night and evening driving. Furthermore, the displayed image will include a scale indicating the distance to obstacles. More details can be found below.
