Kenwood DRV-A510R11CA Car DVR Kit. DVR, rearview camera, and smart parking cables.

Description

Kenwood DRV-A510R11CA car kit consisting of the DRV-A510W recorder, KCA-R110 rear camera and CA-DR1130 extended parking mode cables

Take your driving safety and comfort to the next level with a Kenwood in-car kit! This advanced package includes the DRV-A510W DVR, KCA-R110 rear camera, and CA-DR1130 extended parking mode cables, providing comprehensive protection both while driving and parked.

SPECIFICATION:

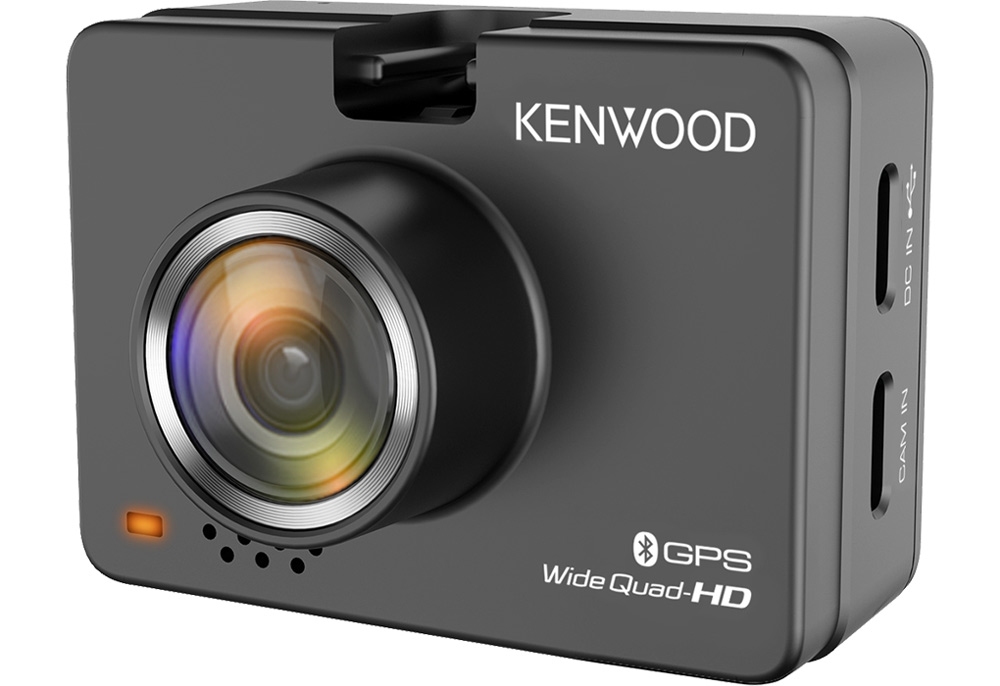

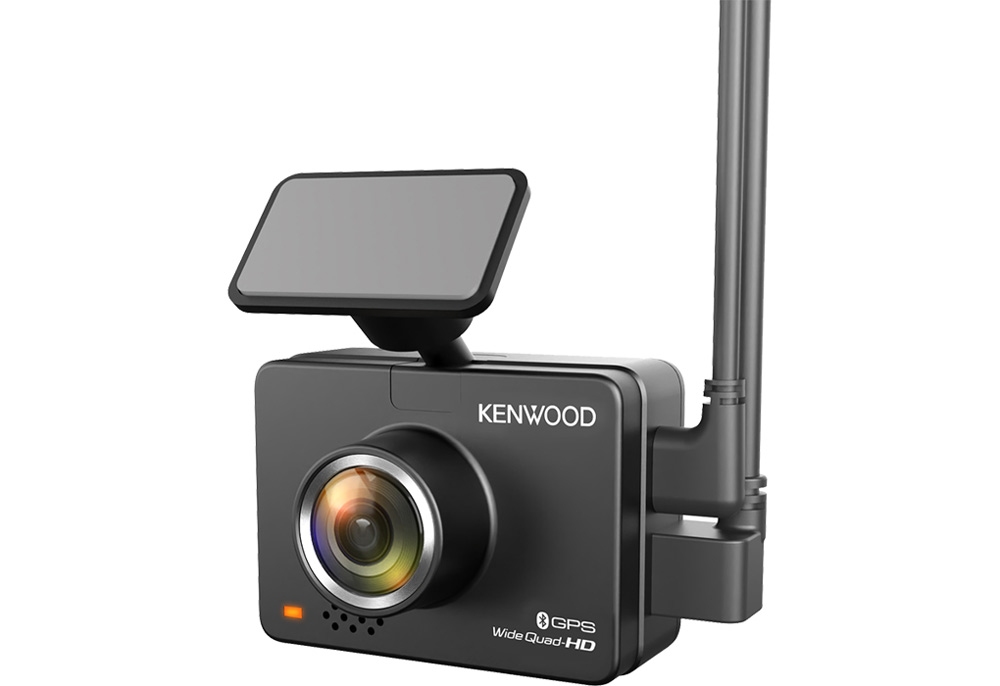

DRV-A510W recorder

Dash Cam with 2.0" LCD Display, 2K Recording, and Wireless Connectivity.
The DRV-A510W dash cam features 2K Quad HD recording and captures clear video even while driving. Access your dash cam data wirelessly with the KENWOOD DASH CAM MANAGER smartphone app (iOS and Android) and share your videos directly to social media. Connect the optional KCA-R110 rear camera for dual-channel recording (2K front and Full HD rear cameras simultaneously). Connect the optional CA-DR1130 to activate Smart Parking Mode (vibration or motion detection, or time-lapse recording).

Key features:

• 2K Wide Quad High Definition recording allows you to record and play back in super high resolution.
• Records video in 2560x1440px H.265/MP4 resolution at 30 frames per second, AAC audio and JPEG image (2560x1440px).
• Equipped with an F1.8 lens with industry-leading brightness and a 136-degree ultra-wide viewing angle.
• HDR (High Dynamic Range) Allows you to easily capture clear images in dark or well-lit environments without under- or over-exposing the image.

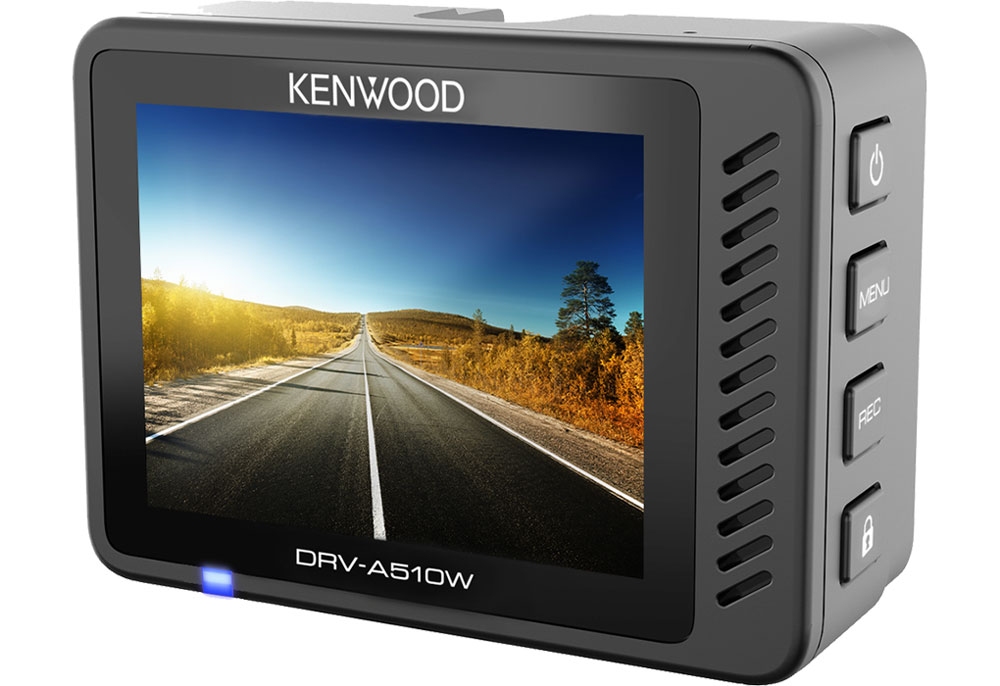

• The 2.0-inch TFT color display provides easy access to check recorded videos and change settings.
• Access your dash cam data wirelessly with the KENWOOD DASH CAM MANAGER smartphone app.
• View and edit recorded videos using KENWOOD VIDEO PLAYER computer software.
• Equipped with a G-sensor that detects external forces and a GPS receiver that records speed, latitude and longitude.
• Rear camera input for simultaneous front and rear recording (KCA-R110 sold separately).
• Intelligent parking monitoring mode (vibration, motion detection or time-lapse mode) with optional wired CA-DR1130 kit.
• Micro SDHC/SDXC card slot (8-256GB, UHS Speed ​​Class 3 (U3) recommended).
• Comes with an adjustable adhesive mount, USB car charger, power cable and cable clips.

Parameters:

• Image sensor: 1/2.8″ CMOS
• Number of pixels: 3.7M pixels (2560 x 1440)
• Lens type: F1.8 prime lens
• Diagonal field of view:  136°
• LCD screen: 2.0″ color TFT display
• Recording Resolution: 2K Wide Quad HD (2560 x 1440) Resolution (3.7M) (max)
• Front and rear 2-camera recording: ready for optional KCA-R110
• 2-channel recording resolution: 2K Wide Quad HD front and Full HD rear
• Frame rate: 30 frames per second
• Photo format: JPEG file
• Image size: 2560 x 1440 pixels
• Recording format: H.265 / MP4
• Video clip length: 1 minute
• Audio file format: AAC (Advanced Audio Coding)
• Built-in G-sensor: High / Medium (default) / Low / Off
• HDR Recording Enhancement: Yes
• Built-in GPS receiver: Yes
• Parking Monitoring Mode: (CA-DR1130) Included
• Parking Mode: Vibration Detection / Motion Detection / Time Lapse
• Wireless LAN and App Link: Yes
• Recording media: Micro SDHC/SDHC card UHS Speed ​​Class (U3)
• Maximum storage media size: 8 GB to 256 GB
• Menu Language: EN(Default)/GE/FR/DU/IT/ES/PT/PL/CZ/RO
• Operating voltage: 5V DC
• Power Type: USB Car Charger + 4m Power Cable
• Supply voltage: 12 – 24 V DC
• Dimensions: 58.5 x 42.8 x 24.4 mm
• Weight: 65 gr (camera only)
• PC Application: KENWOOD VIDEO PLAYER (PC & MAC)
• Smartphone app: KENWOOD DASC CAM MANAGER (IOS and Android)

Accessories:

• DC Cable: 4-meter USB-A to USB-C power cable.
• Car Charger Adapter: Car Cigarette Lighter to USB-A
• Cable clip: 4 pieces
• Adhesive car mount: Yes
• Spare adhesive pad: 2 pieces

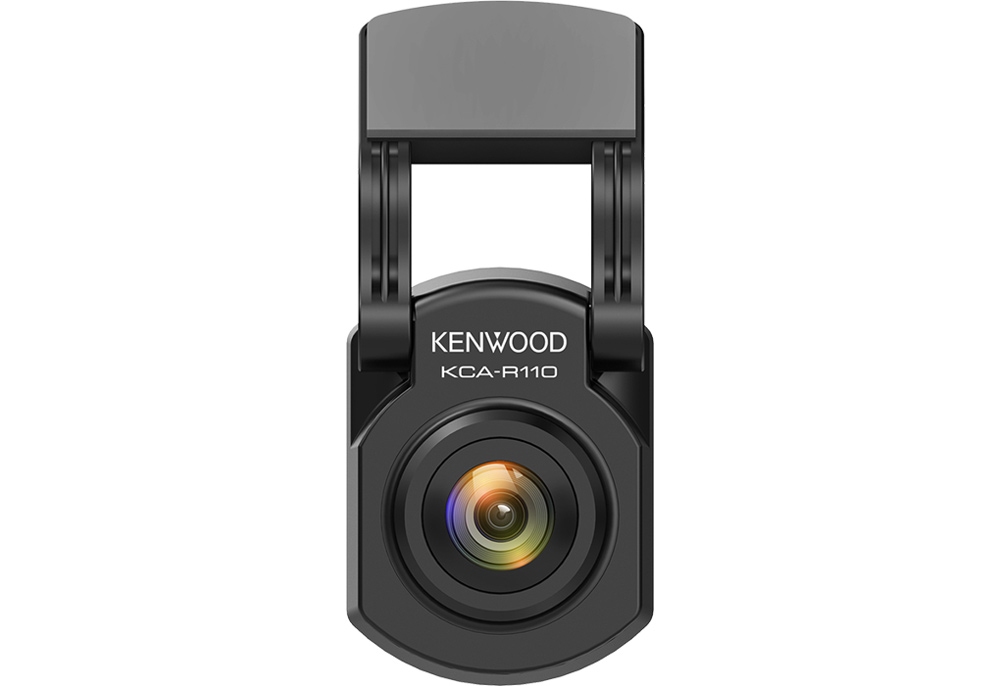

KCA-R110 Rear Camera

Full HD, IP67 waterproof rear camera connects to the DRV-A510W or DRV-A310W for simultaneous front and rear camera recording.
Connect the KCA-R110 waterproof Full HD rear camera to the DRV-A510W or DRV-A310W dash cam as part of a dual-channel, high-resolution video system for extra coverage when needed. The durable housing is waterproof and dustproof to the IP67 standard, allowing you to place the camera outside the car for clearer video recordings because the windshield doesn't obstruct your view. Supplied with an adjustable swivel mount and an 8-meter connection cable.

Key features:

• Full HD recording, allowing for ultra-high resolution recording and playback.
• IP67 protection against dust and water allows the camera to be mounted inside or outside the car
• Equipped with an F2.0 lens with industry-leading brightness and a 131.6° ultra-wide viewing angle.
• High Dynamic Range (HDR): To enhance the elimination of overexposure in intense light.
• Supports motion, vibration or time-lapse detection for smart parking mode.
• Video files are saved separately as F (front) and R (rear) on the dash cam's microSD card.
• Compatible with DRV-A510W and DRV-A310W car cameras, allowing you to record images from the front and rear of your vehicle.
• The adjustable rear camera mounting bracket allows you to change the viewing position within a range of 170 degrees.
• Camera with adhesive mount and 2.5 m cable.
• Includes 5.5 m connection cable and double articulated handle

Parameters:

• Image sensor: 1/2.9-inch color CMOS sensor
• Number of pixels: Full HD (2.0M pixels)
• Recording resolution: 1920 x 1080 pixels
• Recording format: h.264 (MP4)
• IPX Ratings: IP67 Dustproof and Waterproof
• HDR (High Dynamic Range): Yes
• Mounting system: Adhesive tape / Screws
• Lens Type: F2.0 Fixed Focus
• Field of view (diagonal):  131,6°
• Frame rate: 30 frames per second
• Video signal format: H.264 (MP4)
• Operating voltage: 5V DC
• Weight: 300 g (including cable)

General specifications:

• Operating voltage: 5V DC
• Maximum current consumption: 0.3 A
• Dimensions (W x H x D): Dimensions: 50x27x32mm

Accessories

• Camera: Rear camera with 2.5m cable
• Bracket: Mounting bracket (170° up/down angle adjustment)
• Bracket: Double-joint bracket
• Connecting cable: 550 cm
• Screws (Parker type): Ø 2.5 x 10mm, 4 pieces
• Pad with adhesive tape: 2 pieces)

CA-DR1130 Wired Car Camera Kit for Enhanced Parking Mode

Use the wired CA-DR1130 kit to enable Smart Parking mode on the DRV-A310W, DRV-A510W, and DRV-A610W dashboard cameras. You can choose from the following modes: Vibration or Motion Detection: The camera automatically records 30-second videos if it detects vibration or movement (depending on the setting) and stores them securely. When Time-lapse mode is set, the camera creates time-lapse videos and stores them securely. Parking mode automatically activates after you turn off your car's engine until the next time you start it.

Key features:

• Wired kit enabling the activation of enhanced intelligent parking monitoring mode.
• Connects a compatible dash cam directly to your vehicle's fuse box
• Made for DRV-A610W, DRV-A510W and DRV-A310W
• The 4m cable allows you to easily hide and conceal the car's power cord in the headliner.
• Smart Parking Mode is controlled by ACC power (Accessory Power)
• The standby monitoring time is a maximum of 24 hours to protect the battery
• When the car battery voltage drops below 12V, the device will automatically turn off to protect the battery.
• 2 sets of 4 "add circuit" types Fuse included
• The kit includes 2A fuses for the Low Profile, Mini and Standard fuse taps and a 5A fuse for the Micro2 fuse tap.
