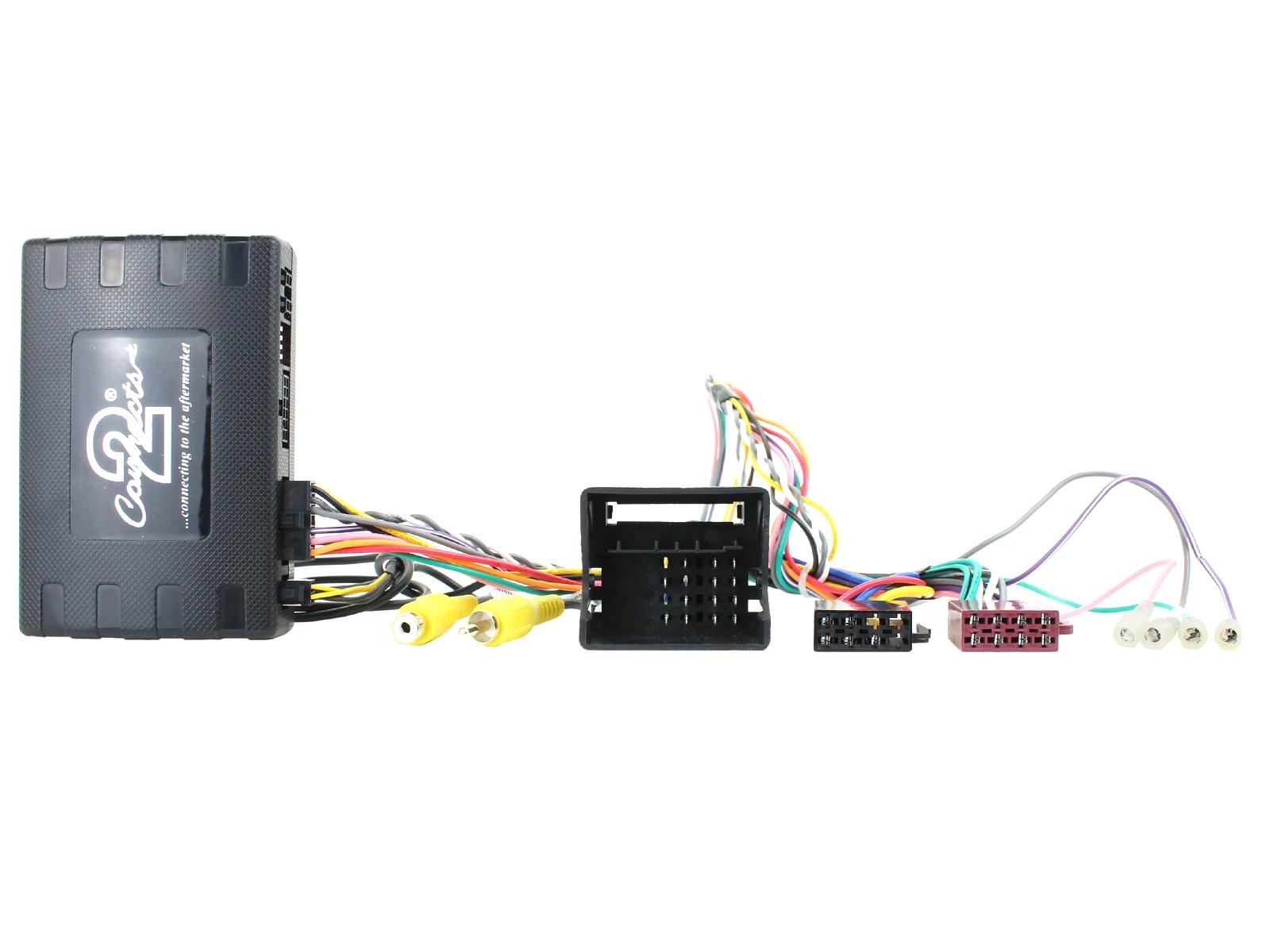

Steering wheel adapter + info VW 2009-> CTUVW01 + Dynaudio

Description

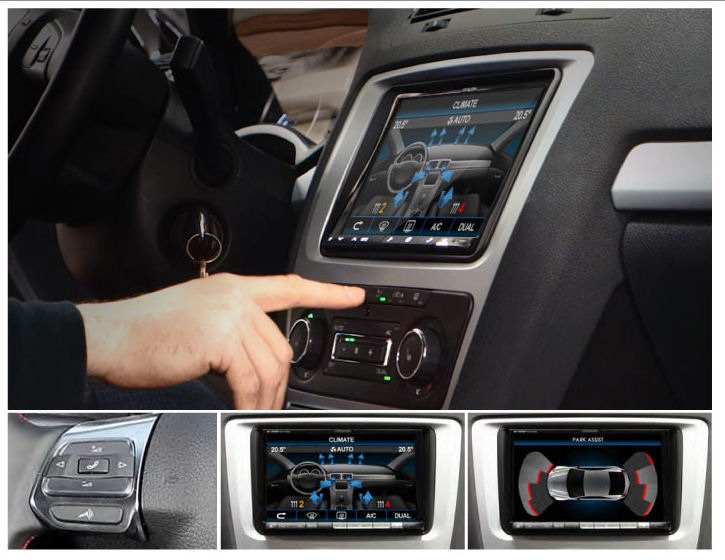

• Displaying information about air conditioning, parking sensors and heated seats
• OEM navigation control function from factory steering wheel buttons
• Video input for rear view camera
• Universal connection cable for Alpine, Clarion, JVC, Kenwood, LG, Panasonic, Pioneer Sony, Zenec

The Infodapter will retain several vehicle display functions after replacing the OEM radio or navigation system.
Vehicle-specific settings are available, which will be displayed on an aftermarket head unit.
The SWC buttons are required to access the Infodapter configuration menu.
Depending on the vehicle's equipment and the range of functions and software of the retrofitted head unit, individual operating functions may be omitted or replaced by other functions.
Please refer to the installation recommendations for the individual components.

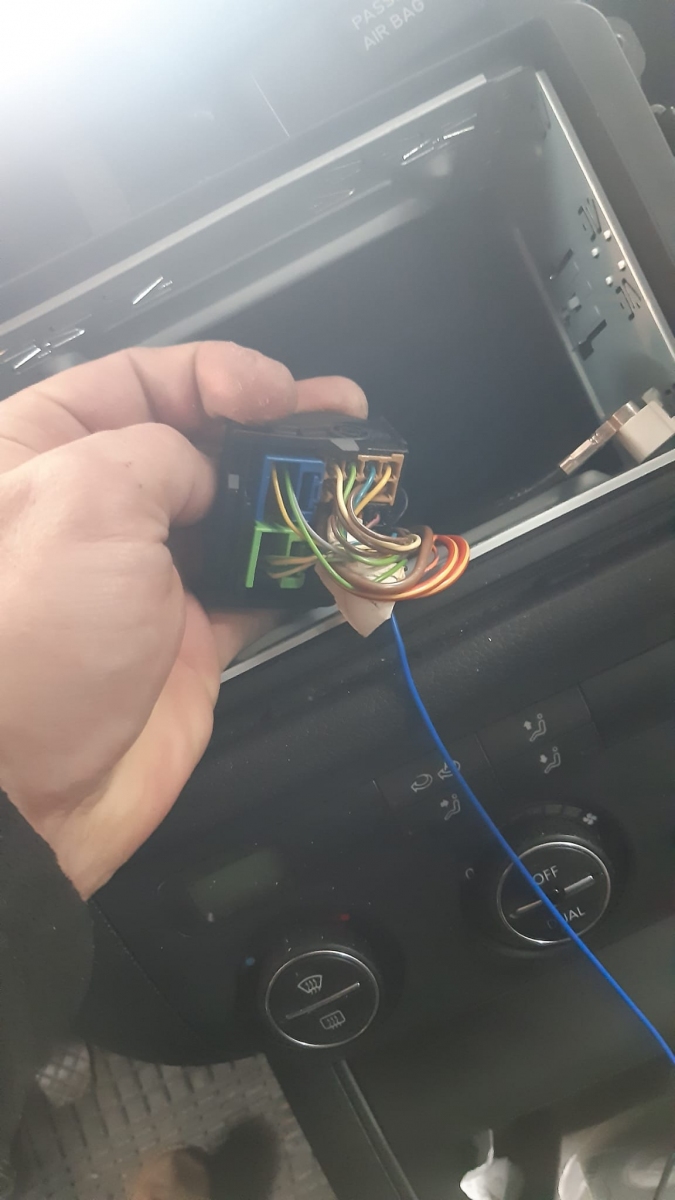

Also check our listed OEM head units and compare the wiring harness connectors shown in the photo with those in your vehicle to ensure a visual and technical match.
Please note that in some cases, not all functions are supported,
for example, Trailer Assist, E-Call, or other driver assistance and comfort systems.
Before installation, check the vehicle's menu for various settings.
Also, test the operation of the vehicle's settings and system before final installation.

Note:

• for vehicles with steering wheel controls
• connector: 40 Pin Quadlock VW
• call up menu settings > purple-white feedback output connect to radio
• visualization of menu settings > RCA(m) yellow connect to the reversing camera input and configure
• Vehicle settings and vehicle information > reflected on the retrofit monitor rear camera input
• vehicles with a white MFD OEM instrument cluster
• vehicles with/without reinforced OEM system

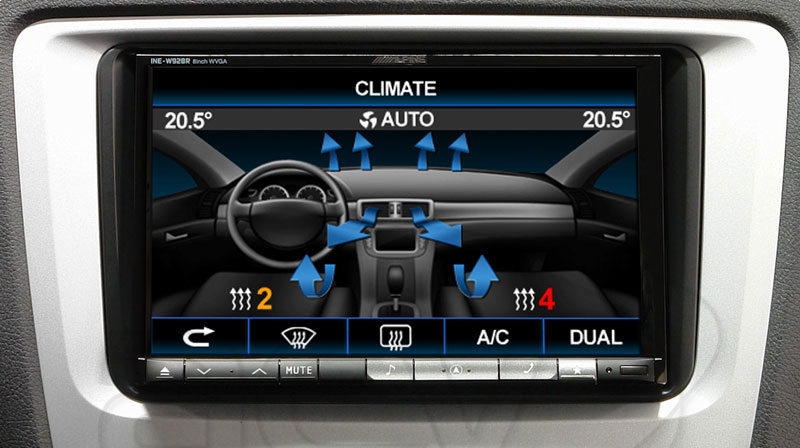

• OPS/climacontrol visualization

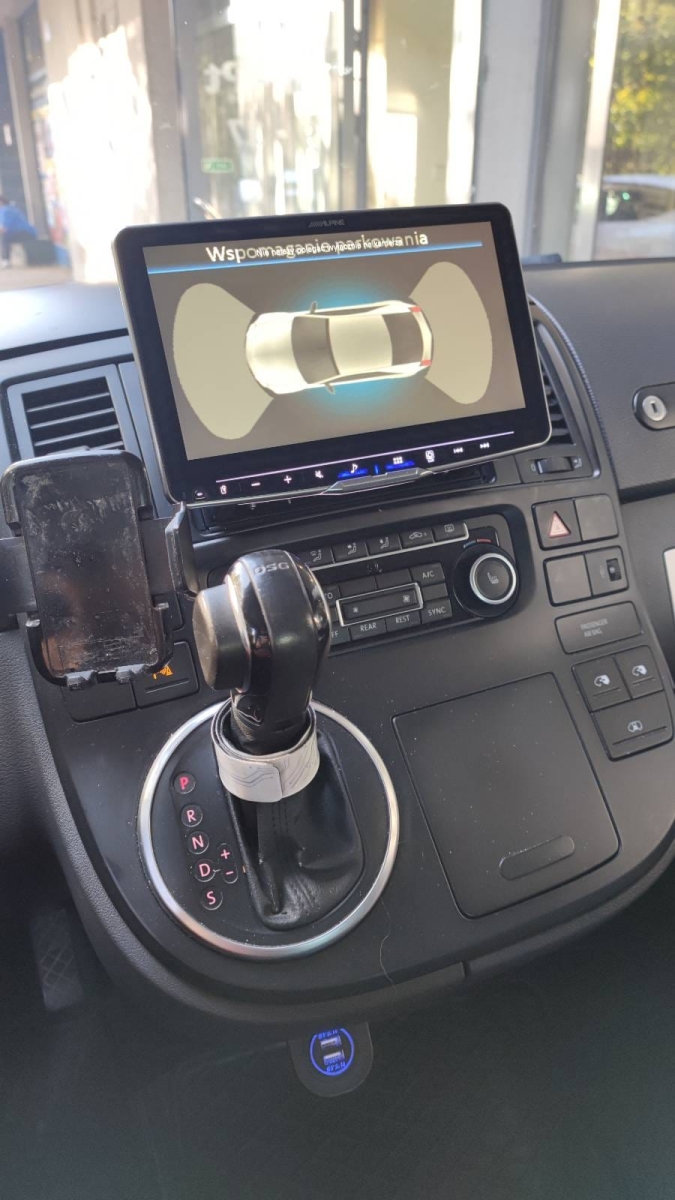

• vehicles equipped with front PDC parking assistant > front PDC appears on the display after switching on the ignition
• exit display > confirm with vehicle PDC switch
• The +12V reverse signal is switched off from 3 km/h
• depending on the HU upgrade or installed camera, the camera image or infodaptor image is unavailable:
• connecting an additional GND signal to the camera's external RCA cable and HU connector

Make and model:

Skoda

• Skoda Octavia (1Z) 01/2009 – 03/2013*
• Skoda Rapid (NH) 10/2012 – 04/2015
• Skoda Roomster (5J) 06/2010 – 02/2015
• Skoda Superb (3T) 07/2008 – 05/2013
• Skoda Yeti (5L) 08/2009 – 10/2013

VW

• VW Caravelle (7H) 09/2009 – 05/2015**
• VW CC (3C/35) 02/2012 – 08/2016
• VW Eos (1F) 10/2010 – 04/2015
• VW Golf VI (1K) 11/2008 – 12/2012
• VW Golf VI (1KM) 11/2009 – 04/2013
• VW Golf VI (1K) 06/2011 – 07/2016
• VW Golf VI Plus (1KP) 03/2009 – 01/2014
• VW Multivan (7H) 09/2009 – 05/2015**
• VW Passat B7 (3C/362) 11.2010 – 10.2014
• VW Polo V (6R) 06/2009 – 01/2014***
• VW Scirocco III (13) 08/2008 – 04/2014
• VW Sharan II (7N) 08.2010 – 04.2015
• VW T5 Transporter (7H) 09/2009 – 05/2015**
• VW Tiguan I (5N) 06/2011 – 04/2016
• VW Touran (1T) 08/2010 – 04/2015

*vehicles with OEM HU receivers/stream
**vehicles with reinforced OEM system > article VW T5/Touareg Quadlock MQS active system adapter - housing: 13-1424-26

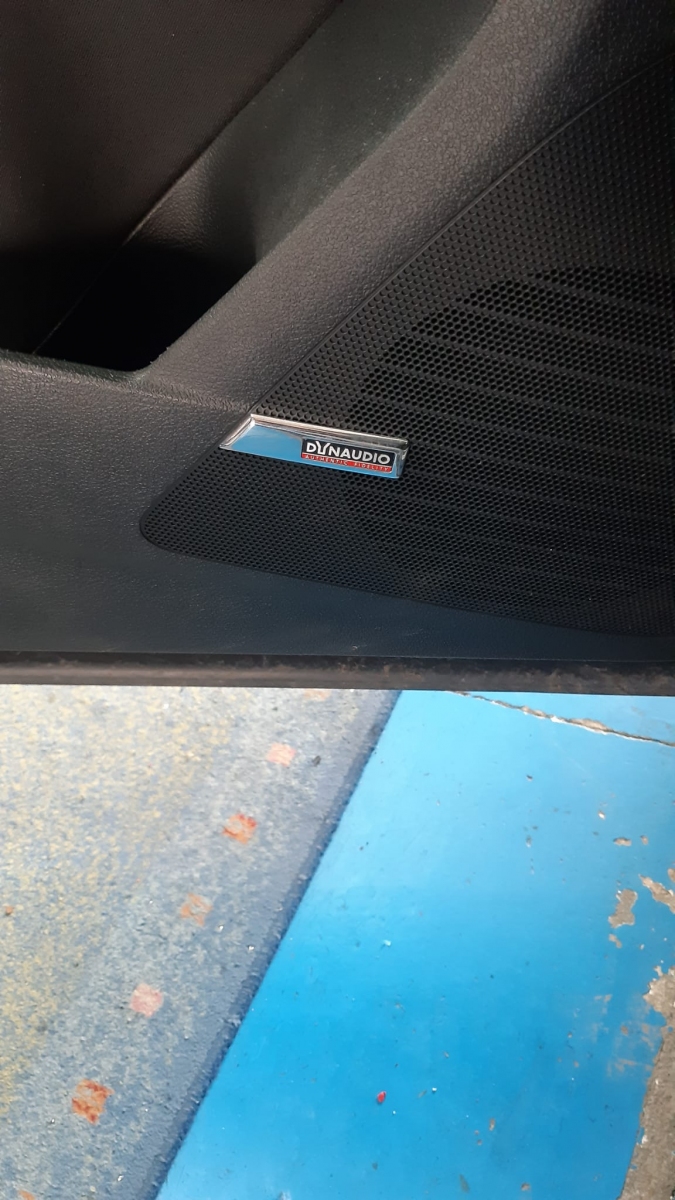

***vehicles with reinforced OEM Fender system The following signals are available:

Re-imported vehicles or vehicles with different software may not be feature compatible.

• red: ignition terminal +12V 15
• orange: lighting terminal +12V 58
• purple/white: reverse signal +12V
• green: parking brake signal GND
• total output load capacity: 100 mA max.
• current demand greater than 100 mA:
• 1 relay coil resistance 75 Ohm min.
• 2 relays coil resistance 150 Ohm min.

General installation instructions:

Verification:
1: Check all operational and vehicle setup functions of the OEM HU.
2: Disconnect the voltage-free OEM HU.
3: Verify all interface connections are correct in voltage-free mode.

Connection and connection sequence:
1: Check the settings and hardware configuration of the voltage-free interface.
2: Check the configuration of the voltage-free radio connection cable.
3: Connect the radio connection cable according to the HU retrofit manual.
4: Connect all other connections according to the HU retrofit manual.
5: Connect the entire installation to the vehicle with the main connection last.
6: Configure the interface software according to the instructions in the section text and in the manual.
7: Configure the retrofit device according to the manual for the steering wheel remote control/camera/FSE/antenna phantom power and others.
8: Test the operation of the steering wheel remote control and vehicle

Changes to the interface and cable configuration for connecting the radio:
1: Change the configuration without voltage
2: Reconnect, see above 5 to 8

In case of abnormal operation of the interface or vehicle:
1: Reinstall the OEM HU
2: Operate the OEM HU
3: Determine the CAN bus shutdown
4: Check the hardware configuration of the interface
5: Reconnection after disabling the CAN bus, see above 5 and 6

More connections, connection changes, alternative connections, loose cable connections or extensions of loose cable connections mentioned in the information text or instructions are for guidance purposes only and are the information of a trained specialist installer.

More connections, changes to the wiring configuration within the wiring harness, or the use of alternative connections or connection extensions:
1: Connections and modifications should only be made by trained installers.
2: Connections and modifications should be checked before connection to ensure they meet any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Before connection, check connections and modifications for functionality and correctness by taking measurements and comparing them with the vehicle's wiring diagram.
4: Connections and modifications are made at the user's own risk and without guarantee of performance.
5: Connections and modifications are made at the user's own risk and without guarantee of damage to the vehicle, retrofit device, or interface.
6: Modifications to the pre-assembled wiring harness may void the product warranty.
