TFT01 4.3″ parking sensor kit with HD-315-LED camera, 4 silver sensors

Description

Parking assistant complete set of sensors + camera with display.



The set includes:

• display
• sensors
• camera
• central
• complete wiring



The camera and sensors are activated automatically when reverse gear is engaged.

Parking sensors are an indispensable aid both while driving and parking. Rear sensors make parking easier, even with a large car, and the rearview camera connection allows for precise monitoring of the area behind the vehicle.

The sensor has a built-in video mixer so it can display the image from a connected reversing camera and a digitally generated distance indicator.

The device is particularly useful in crowded parking lots, during rain or snowfall, and in situations with limited visibility, such as at night. By determining the distance and direction of an obstacle, we can avoid unnecessary expenses and many unpleasant situations caused by even the slightest bumper abrasions.

Set composition:

• 4-sensor LCD control unit,
• 4 silver sensors,
• very efficient loudspeaker,
• CAM-315 LED reversing camera,
• 4.3-inch TFT display.
• hole saw for drilling holes in the bumper.

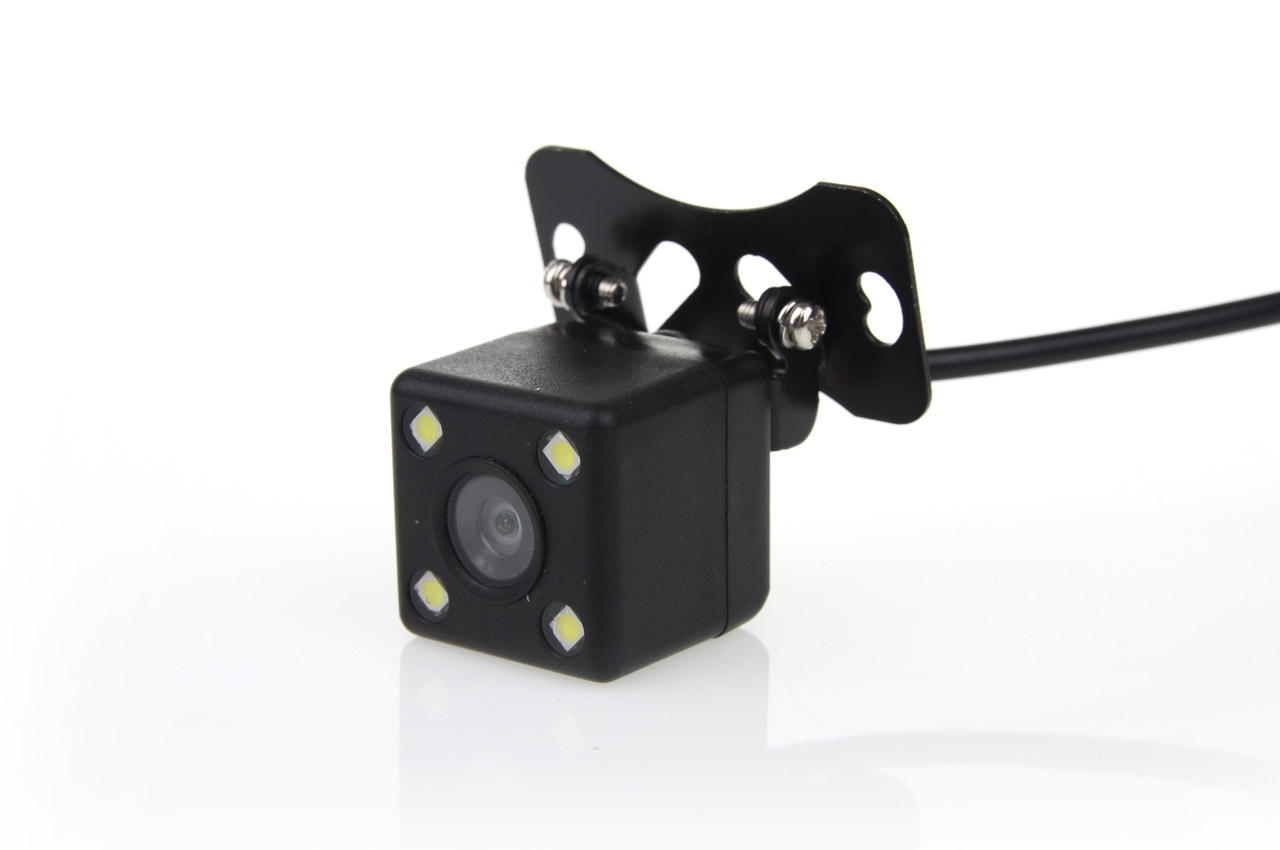

The CAM-315 LED rearview camera is a modern camera with "Night Vision" functionality – additional LEDs provide additional illumination. The high-resolution 4.3-inch TFT display clearly shows the area directly behind the vehicle. The parking sensor is a device that aids in parking and reversing. It operates on the sonar principle – it emits ultrasonic waves that, when reflected from an obstacle, allow the distance between the vehicle and the obstacle to be determined. When reversing, the device accurately identifies obstacles in the vehicle's path and warns the driver with an audible signal (appropriate to the distance from the obstacle) or via an LED display.



Full specifications:
Resolution	480 x 234
Camera	CAM-315 LED Modern camera with "Night vision" function - additional LEDs provide illumination
Alarm	Alarm BI-BI sounds
Operating range/sensitivity	0-2.5m
Power supply	12V
Working frequency	40KHz
Operating temperature	-30C +70C
Mounting diameter	22mm
