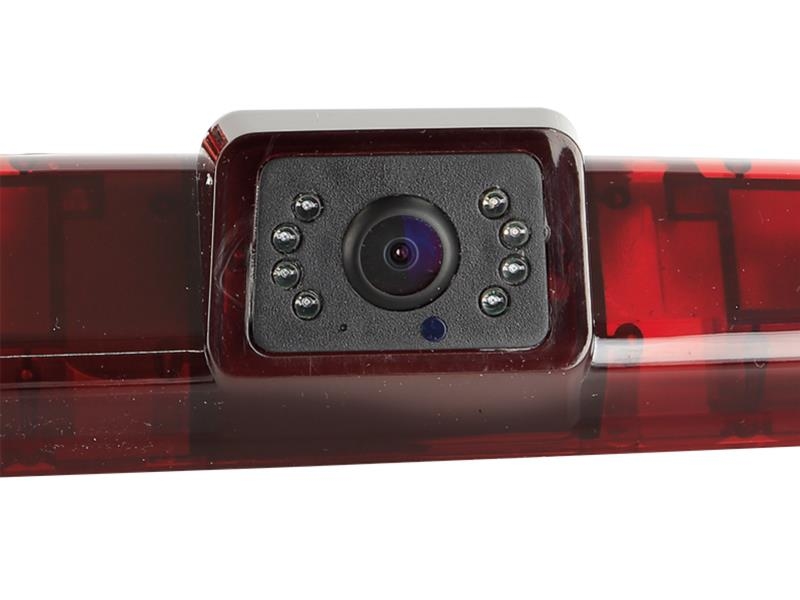

Universal reversing camera, brake light.

Description

Universal rear view camera with third brake light, parking lines activated via jumper, night vision function, adjustable viewing angle 20°


Product characteristics

• Construction: Plastic
• Color: Black / Red
• Extras: Jumper-activated parking lines, night vision function, 20° adjustable viewing angle°
• Sensor type: 1/3 CMOS
• System: NTSC color
• Number of pixels: 648 x 488
• Lens: 1.9mm / F2.0
• Min.Lux: 0 for active night vision function
• Resolution: 480 TV lines
• Lens viewing angle: 170 °
• Viewing angle: horizontal 150° vertical 90° + 5°
• Dust and waterproof: IP67
• 4-pin connection 5.2 mm mini plug
• Supply voltage: 12V + 10%
• Power consumption: 150mA with night vision activated
• Temperature: 30°C – 75°C
• Storage temperature: 40°C – 80°C
• Dimensions : camera 198 mm x 48 mm , gasket 212 mm x 62 mm.

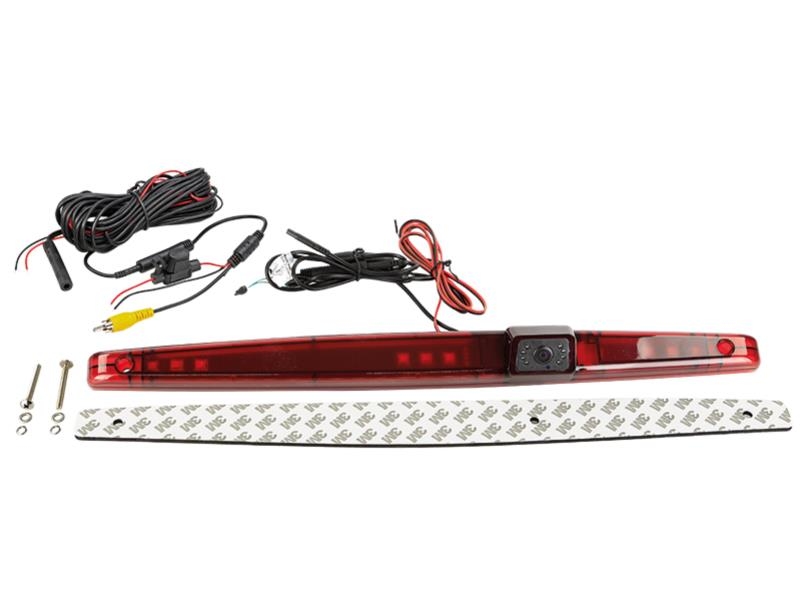

Wires

• 1 cable with 4-pin mini plug 5.2 mm
• 6.5 meter extension cord. 3 meter power cord
• 4-pin mini plug and 10mm 5.2mm plug
• Power cord 0.2 m
• Fuse and video socket (RCA)


Optional accessories

• 771000-6305 Extension cord 5 m
• 771000-6310 Extension cord 10 m
• 771000-6315 Extension cord 15 m

Universal reversing camera and brake light – the perfect device for every driver!

Parking problems are common for all drivers, regardless of experience. Often, we can't even predict when an undesirable malfunction might occur, which could cost us a considerable amount of money to repair. How can we prevent this? A universal rearview camera and brake light can be an excellent solution for those who don't feel comfortable reversing. Trust this proven technology today!

Trust a proven brand on the market!

We invite you to browse our extensive selection, where you'll easily find the parts you need to fix reversing system failures. Perhaps you're someone who'd like to install such a system yourself? We've got all the products you need! It's time to make your life easier behind the wheel!
